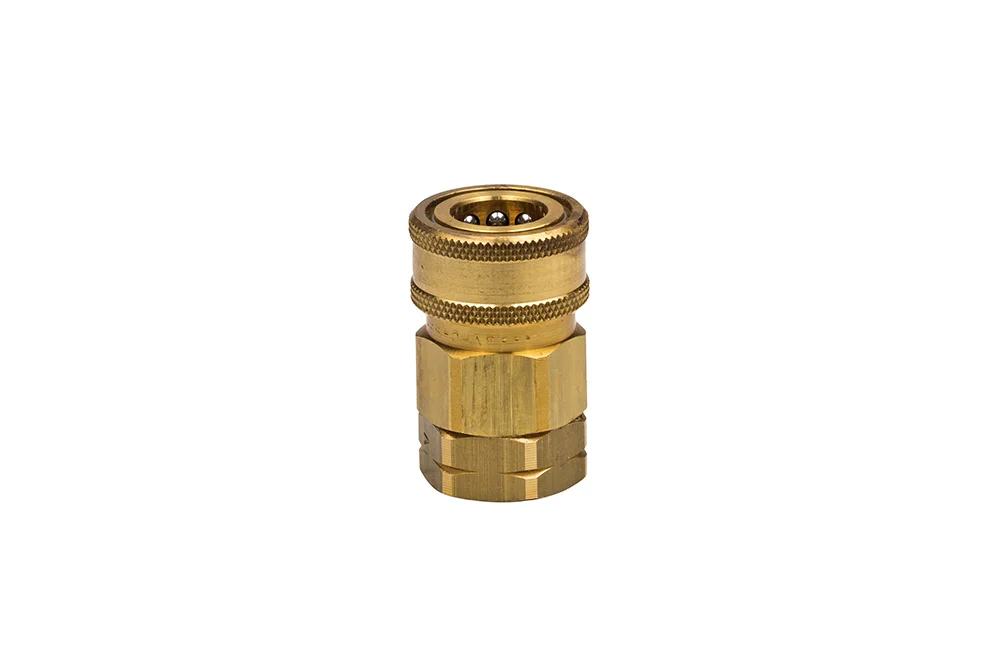

Socket quick coupling SNAP-TITE with a female BSP thread with valve, brass, series H

Additional information

Material

B – brass (bronze)

Socket quick coupling SNAP-TITE with thread internal BSP production American is characterized unique design valve, co allows on achieving laminar flows. depending on use should select appropriate Material coupling and seal. Application: hydraulics power (oil hydraulic), industrial (water, steam, fuels and oils, gases chemicals). standard: MIL-C-51234. Working pressure: up to 155 bar (depending on size quick coupling), Safety factor 2:1. Material: brass. sealing: NBR (Operating temperature: od -35°C up to +120°C), Viton (Operating temperature: od -26°C up to +204°C). Flow rate has been stated for a drop pressure 3 bar.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
SN-BVHC12-12RPSocket H 3/4", 3/4" BSP female, brass-138In stock0 €
Enquiry
SN-BVHC12-12RPVSocket H 3/4", 3/4" BSP female, brass, Viton-138In stock0 €
Enquiry
SN-BVHC16-16RPSocket H 1", 1" BSP female, brass-121In stock0 €
Enquiry
SN-BVHC16-16RPVSocket H 1", 1" BSP female, brass, Viton-121In stock0 €
Enquiry
SN-BVHC20-20RPSocket H 1.1/4", 1.1/4" BSP female, brass-24In stock0 €
Enquiry
SN-BVHC20-20RPVSocket H 1.1/4", 1.1/4" BSP female, brass, Viton-24In stock0 €
Enquiry
SN-BVHC24-24RPSocket H 1.1/2", 1.1/2" BSP female, brass-24In stock0 €
Enquiry
SN-BVHC32-32RPSocket H 2", 2" BSP female, brass-28In stock0 €
Enquiry
SN-BVHC4-4RPSocket H 1/4", 1/4" BSP female, brass-155In stock0 €
Enquiry
SN-BVHC4-4RPVSocket H 1/4", 1/4" BSP female, brass, Viton-155In stock0 €
Enquiry
SN-BVHC6-6RPSocket H 3/8", 3/8" BSP female, brass-155In stock0 €
Enquiry
SN-BVHC6-6RPVSocket H 3/8", 3/8" BSP female, brass, Viton-155In stock0 €
Enquiry
SN-BVHC8-8RPSocket H 1/2", 1/2" BSP female, brass-138In stock0 €
Enquiry
SN-BVHC8-8RPVSocket H 1/2", 1/2" BSP female, brass, Viton-138In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Socket quick coupling SNAP-TITE with thread internal BSP production American is characterized unique design valve, co allows on achieving laminar flows. depending on use should select appropriate Material coupling and seal. Application: hydraulics power (oil hydraulic), industrial (water, steam, fuels and oils, gases chemicals). standard: MIL-C-51234. Working pressure: up to 155 bar (depending on size quick coupling), Safety factor 2:1. Material: brass. sealing: NBR (Operating temperature: od -35°C up to +120°C), Viton (Operating temperature: od -26°C up to +204°C). Flow rate has been stated for a drop pressure 3 bar.

Additional information

Material

B – brass (bronze)
