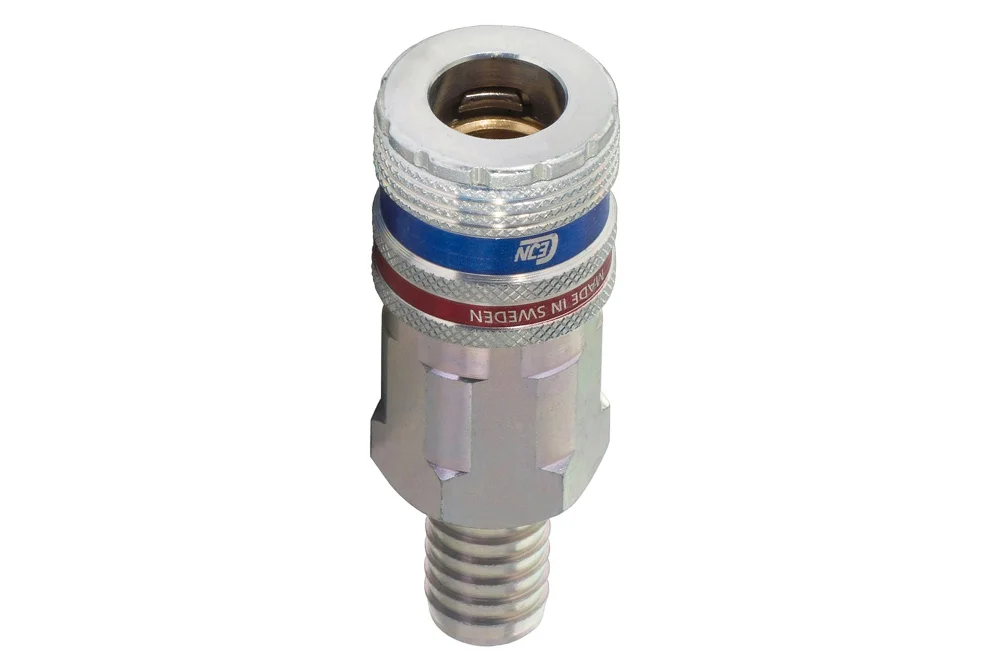

Socket quick coupling pneumatic DN10.4 with valve, with fitting for hose, steel carbon, CEJN 410 ESAFE

Additional information

Material

CS – steel (cast iron)

Socket quick coupling CEJN DN10.4 in version ESAFE (disconnected without pressure, for avoiding danger recoil, compliant with the standard ISO 4414 and EN 983) with fitting for hose. versatile used in industry, mainly in installations pneumatic. operated one hand at minimum force required for connections. made in accordance with Eurostandard DN10. Working pressure: 16 bar. flow capacity: 4000 l/min (Pe=6 bar, Δp=0.5 bar – air). Material: brass/steel galvanized. sealing: NBR. Operating temperature: od -20°C up to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
CJ-104102003Quick coupling socket CEJN 410 ESAFE, for 8 mm hose816In stock0 €
Enquiry
CJ-104102004Quick coupling socket CEJN 410 ESAFE, for 10 mm hose1016In stock0 €
Enquiry
CJ-104102005Quick coupling socket CEJN 410 ESAFE, for 13 mm hose1216In stock0 €
Enquiry
CJ-104102006Quick coupling socket CEJN 410 ESAFE, for 16 mm hose1616In stock0 €
Enquiry
CJ-104102007Quick coupling socket CEJN 410 ESAFE, for 19 mm hose2016In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Socket quick coupling CEJN DN10.4 in version ESAFE (disconnected without pressure, for avoiding danger recoil, compliant with the standard ISO 4414 and EN 983) with fitting for hose. versatile used in industry, mainly in installations pneumatic. operated one hand at minimum force required for connections. made in accordance with Eurostandard DN10. Working pressure: 16 bar. flow capacity: 4000 l/min (Pe=6 bar, Δp=0.5 bar – air). Material: brass/steel galvanized. sealing: NBR. Operating temperature: od -20°C up to +100°C.

Additional information

Material

CS – steel (cast iron)
