Is the Bolt for BANJO, HS type, carbon steel suitable for high‑pressure hydraulic systems and compatible with DIN 7643 fittings?

Yes. Bolt for BANJO, HS type, carbon steel is suitable for high‑pressure hydraulic systems and compatible with DIN 7643 fittings. It is manufactured from high‑quality carbon steel, designed to DIN 7643, with precise threading for a secure, leak‑free connection and a robust construction that supports consistent performance under high pressure. The durable galvanized coating provides corrosion and wear resistance, extending service life and ensuring safety and efficiency in demanding hydraulic and pneumatic applications.

Can the Bolt for BANJO, HS type, carbon steel be used with BSP or metric threaded hydraulic hoses and fittings in high‑temperature environments?

Yes — the Bolt for BANJO, HS type, carbon steel can be used with BSP or metric threaded hydraulic hoses and fittings, provided the threads match the BSP or metric standards and the system operates within the component’s specified pressure and temperature limits. The HS type BANJO screw is manufactured to DIN 7643 with precise threading and a robust carbon steel body with a galvanized finish, offering secure, leak‑free connections and good corrosion/mechanical resistance. However, for high‑temperature environments, verify the following before use: - Thread compatibility: ensure BSP or metric thread forms and sizes match mating fittings. - Temperature rating: confirm the bolt’s galvanized coating and any seals or hoses in the assembly are rated for the intended high temperature; galvanized finishes and common elastomer seals can degrade above certain temperatures. - Pressure/temperature interaction: check manufacturer specifications for allowable pressure at elevated temperatures. - Sealing materials: use high‑temperature seals (e.g., PTFE or suitable elastomers) if required. If these conditions are met, the Bolt for BANJO, HS type, carbon steel is suitable; otherwise consult the supplier or engineering data for high‑temperature variants or alternative coatings/materials.

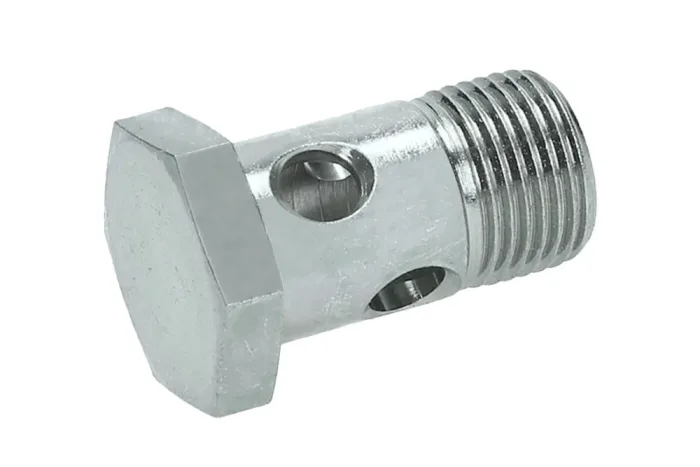

Bolt for BANJO, HS type, carbon steel

All products, Low-pressure fittings and adapters/

Additional information

The HS type BANJO screw with metric or BSP thread, designed in line with the DIN 7643 standard, is a reliable solution for demanding hydraulic and pneumatic applications. Manufactured from high‑quality carbon steel and finished with a durable galvanized coating, it ensures excellent resistance to corrosion and mechanical wear, extending the service life of the entire system. Its precise threading guarantees a secure and leak‑free connection, while the robust construction supports consistent performance under high pressure. This versatile component is engineered to meet the needs of modern industries, offering compatibility with a wide range of fittings and systems. By combining strength, precision, and protective finishing, the HS BANJO screw provides both safety and efficiency, making it an ideal choice for companies seeking dependable and cost‑effective fastening solutions.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
EC-107006	Banjo bolt HS M6x1	-	-
EC-107008	Banjo bolt HS M8x1	-	-
EC-107009	Banjo bolt HS M8x1.25	-	-
EC-107010	Banjo bolt HS M10x1	-	-
EC-107011	Banjo bolt HS M10x1.5	-	-
EC-107012	Banjo bolt HS M12x1.5	-	-
EC-107014	Banjo bolt HS M14x1.5	-	-
EC-107016	Banjo bolt HS M16x1.5	-	-
EC-107018	Banjo bolt HS M18x1.5	-	-
EC-107022	Banjo bolt HS M22x1.5	-	-
EC-107026	Banjo bolt HS M26x1.5	-	-
EC-107040	Banjo bolt HS BSP 1/8"	-	-
EC-107041	Banjo bolt HS BSP 1/4"	-	-
EC-107042	Banjo bolt HS BSP 3/8"	-	-
EC-107052	Banjo bolt HS form C M12x1.5	-	-

The HS type BANJO screw with metric or BSP thread, designed in line with the DIN 7643 standard, is a reliable solution for demanding hydraulic and pneumatic applications. Manufactured from high‑quality carbon steel and finished with a durable galvanized coating, it ensures excellent resistance to corrosion and mechanical wear, extending the service life of the entire system. Its precise threading guarantees a secure and leak‑free connection, while the robust construction supports consistent performance under high pressure. This versatile component is engineered to meet the needs of modern industries, offering compatibility with a wide range of fittings and systems. By combining strength, precision, and protective finishing, the HS BANJO screw provides both safety and efficiency, making it an ideal choice for companies seeking dependable and cost‑effective fastening solutions.
