Is the NON SKIVE SAE 3000 Straight Flange, Type NSK111, Light Series, Carbon Steel compatible with TI-N crimping sleeves and hoses 4SP/4SH/R13/R15?

Yes. The NON SKIVE SAE 3000 Straight Flange, Type NSK111, Light Series, Carbon Steel is compatible with TI-N crimping sleeves and hoses 4SP/4SH/R13/R15. It is specifically engineered for seamless crimping with those hose types, supports use with the TI-N sleeve, and its non-skive design preserves the hose cover while reducing assembly time. Manufactured from carbon steel with a zinc coating and lightweight construction, it provides secure, corrosion-resistant, high-pressure connections suitable for demanding hydraulic applications.

Can the NON SKIVE SAE 3000 Straight Flange, Type NSK111, Light Series, Carbon Steel withstand continuous high-pressure cycles in industrial hydraulic systems?

NON SKIVE SAE 3000 Straight Flange, Type NSK111, Light Series, Carbon Steel — Yes. The fitting is expressly engineered for demanding hydraulic applications and guarantees reliable operation under high pressure. Its compatibility with 4SP, 4SH, R13 and R15 hoses when crimped with the TI-N sleeve provides secure, durable connections suitable for continuous high-pressure cycles. The non-skive design preserves the hose cover, maintaining hose integrity and reducing failure risk from improper assembly. Carbon steel construction with a protective zinc coating delivers strong mechanical resistance and corrosion protection, supporting longevity in harsh environments. The lightweight series balances ease of handling with structural strength, making it appropriate for industrial hydraulic systems subjected to repeated high-pressure cycling, provided correct hose/fitting matching and proper crimping procedures are followed.

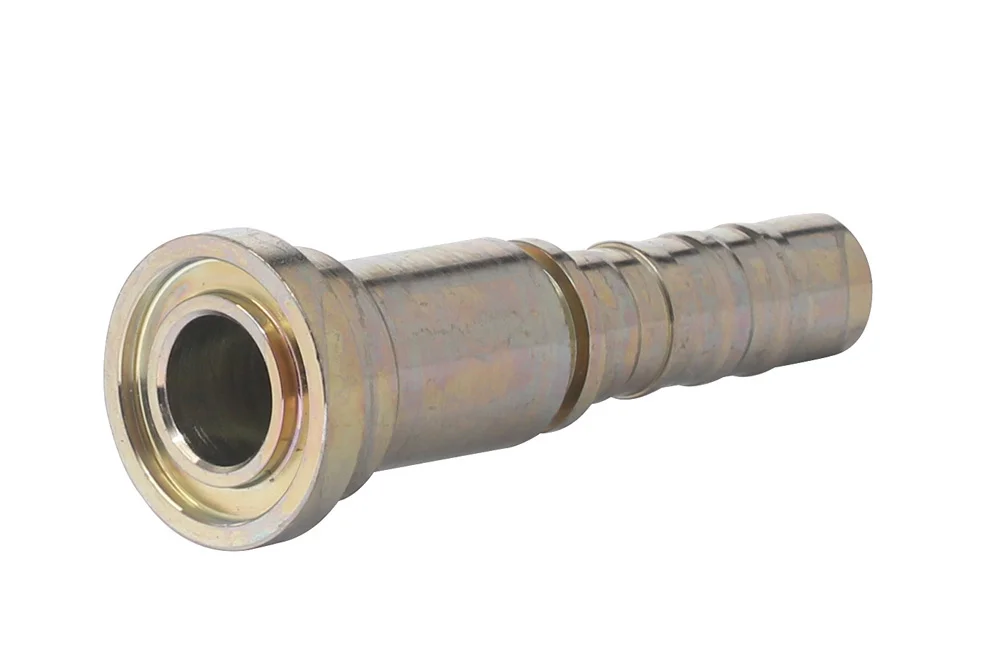

NON SKIVE SAE 3000 Straight Flange, Type NSK111, Light Series, Carbon Steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	2, 3

The Straight Non-Skive Flange End SAE 3000 (SFL) in the lightweight series is a reliable and efficient solution designed for demanding hydraulic applications. Engineered for seamless crimping with hoses of types 4SP, 4SH, R13, and R15, it ensures secure and durable connections when used with the TI-N crimping sleeve. Its non-skive design eliminates the need to remove the hose’s rubber cover during installation, significantly reducing assembly time while maintaining maximum hose integrity. Manufactured from high-quality carbon steel and finished with a protective zinc coating, the fitting offers excellent resistance to corrosion and mechanical wear, extending service life even in harsh operating environments. The lightweight construction provides ease of handling without compromising strength, making it an ideal choice for industries requiring both performance and efficiency. This flange end fitting guarantees reliable operation under high pressure, ensuring safety, durability, and consistent performance in hydraulic systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NSK111-12-12	End fitting NON SKIVE SAE 3000 3/4", hose 3/4"	20	350	In stock	Enquiry
TI-NSK111-12-16	End. collar. NON SKIVE SAE 3000 3/4", hose 1"	25	350	In stock	Enquiry
TI-NSK111-16-12	End fitting NON SKIVE SAE 3000 1", hose 3/4"	20	350	In stock	Enquiry
TI-NSK111-16-16	End. collar. NON SKIVE SAE 3000 1", hose 1"	25	350	In stock	Enquiry
TI-NSK111-20-16	End. collar. NON SKIVE SAE 3000 1.1/4", hose 1"	25	350	In stock	Enquiry
TI-NSK111-20-20	End fitting NON SKIVE SAE 3000 1.1/4", hose 1.1/4"	32	280	In stock	Enquiry
TI-NSK111-24-20	End fitting NON SKIVE SAE 3000 1.1/2", hose 1.1/4"	32	210	In stock	Enquiry
TI-NSK111-24-24	End fitting NON SKIVE SAE 3000 1.1/2", hose 1.1/2"	38	210	In stock	Enquiry
TI-NSK111-32-24	End. collar. NON SKIVE SAE 3000 2", hose 1.1/2"	38	210	In stock	Enquiry
TI-NSK111-32-32	End. collar. NON SKIVE SAE 3000 2", hose 2"	50	210	In stock	Enquiry
TI-NSK111-40-32	End. collar. NON SKIVE SAE 3000 2.1/2", hose 2"	50	175	In stock	Enquiry
