Is the Quick Coupling Plug with Female BSPT, NITTO KOHKI HI CUPLA, Carbon Steel rated for continuous use at 15 bar in heavy‑vibration environments?

Quick Coupling Plug with Female BSPT, NITTO KOHKI HI CUPLA, Carbon Steel Format — Yes. The product description states a working pressure of up to 15 bar and emphasizes that it is manufactured from high‑quality carbon steel with exceptional durability and resistance to vibrations. These features indicate it is rated for continuous use at 15 bar in heavy‑vibration environments, provided installation follows the specified requirement that medium flows from the socket to the plug.

Does the Quick Coupling Plug with Female BSPT, NITTO KOHKI HI CUPLA, Carbon Steel require special maintenance after prolonged use in high‑vibration pneumatic systems?

Quick Coupling Plug with Female BSPT, NITTO KOHKI HI CUPLA, Carbon Steel — does it require special maintenance after prolonged use in high‑vibration pneumatic systems? Short answer: No special maintenance beyond standard inspection and basic preventative measures. Explanation: The HI CUPLA plug is made from high‑quality carbon steel and engineered for excellent durability and vibration resistance, so it is suitable for high‑vibration pneumatic environments. However, prolonged exposure to vibration and intensive use can accelerate wear of sealing elements, threads and mating surfaces. Recommended routine maintenance: - Regular visual inspections for wear, cracks, corrosion or deformation (suggested interval depending on duty cycle, e.g., weekly to monthly). - Check seals and O‑rings; replace if hardened, cracked or leaking. - Ensure threads remain tight and free of damage; re‑torque or replace if necessary. - Keep connections clean and free of debris; blow out lines before coupling. - Apply appropriate corrosion protection or light lubricant to moving parts and threads if environment is corrosive (avoid lubricants that degrade seals). - Monitor for air leaks and pressure loss; address immediately. Following these standard preventive steps will maintain reliable performance without the need for specialized maintenance procedures.

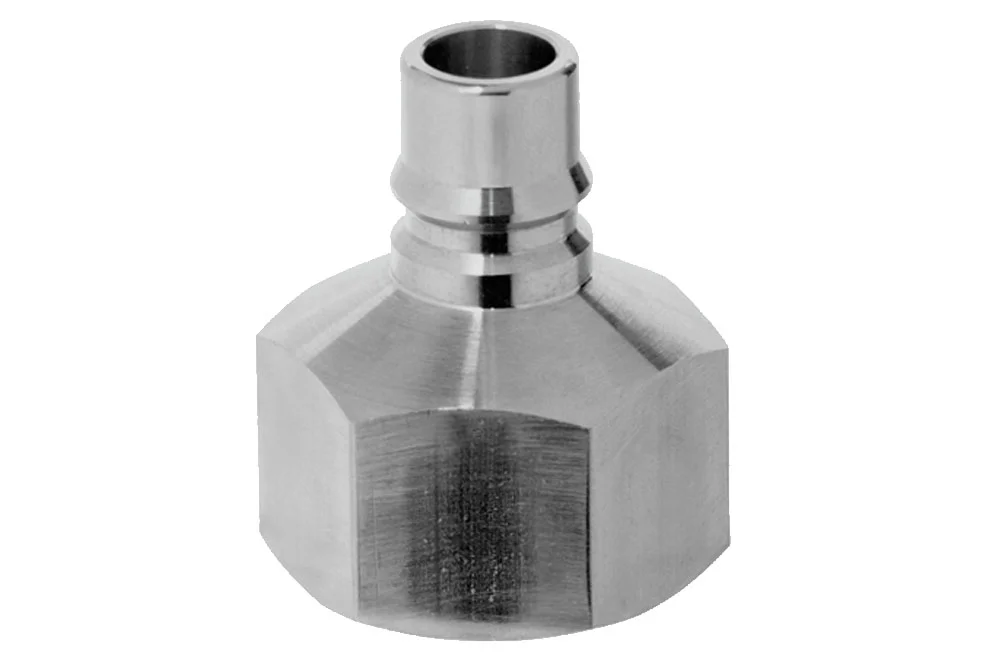

Plug quick coupling with a female BSP threadT, NITTO KOHKI HI CUPLA, steel carbon

All products, General-purpose low-pressure quick couplings/

Additional information

Material	CS – steel (cast iron)

Plug without valve Nitto Kohki series HI CUPLA with thread internal BSPT o excellent durability and resistance to vibration. intended for connecting tools pneumatic with installations air. Material: steel carbon. Working pressure: 15 bar. flow capacity: 4000 l/min (1″), 3200 l/min (3/4″), 2600 l/min (1/2″), 1600 l/min (3/8″), 1000 l/min (1/4″) at a pressure of 5 bar. Note: the medium must flow from the socket to the plug.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NK-20PF-S	Quick coupling plug HI CUPLA, 1/4" BSPT female, chrome-plated steel	-	15	In stock	Enquiry
NK-30PF-S	Quick coupling plug HI CUPLA, 3/8" BSPT female, chrome-plated steel	-	15	In stock	Enquiry
NK-400PF-S	Quick coupling plug HI CUPLA, 1/2" BSPT female, chrome-plated steel	-	15	In stock	Enquiry
NK-40PF-S	Quick coupling plug HI CUPLA, 1/2" BSPT female, chrome-plated steel	-	15	In stock	Enquiry
NK-600PF-S	Quick coupling plug HI CUPLA, 3/4" BSPT female, chrome-plated steel	-	15	In stock	Enquiry
NK-800PF-S	Quick coupling plug HI CUPLA, 1" BSPT female, chrome-plated steel	-	15	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Plug without valve Nitto Kohki series HI CUPLA with thread internal BSPT o excellent durability and resistance to vibration. intended for connecting tools pneumatic with installations air. Material: steel carbon. Working pressure: 15 bar. flow capacity: 4000 l/min (1″), 3200 l/min (3/4″), 2600 l/min (1/2″), 1600 l/min (3/8″), 1000 l/min (1/4″) at a pressure of 5 bar. Note: the medium must flow from the socket to the plug.
