Is the One-Piece Carbon Steel Ear Clip Ring with Single Eye suitable for reinforced and non-reinforced low-pressure hoses?

Yes. The One-Piece Carbon Steel Ear Clip Ring with Single Eye is suitable for both reinforced (braided) and non-reinforced low-pressure hoses. Its design provides secure clamping while rounded inner edges protect the hose surface from wear or damage. Made from galvanized carbon steel, it offers strong corrosion and mechanical resistance for long-lasting performance. Installation is quick and reliable using dedicated pliers, making it appropriate for professional and industrial applications.

Can the One-Piece Carbon Steel Ear Clip Ring with Single Eye be safely reused after removal, and what precautions are recommended if reused?

One-Piece Carbon Steel Ear Clip Ring with Single Eye clamps are intended primarily for single-use installation: the ear is deformed by dedicated pliers to form a permanent tight seal. Reuse after removal is possible only with caution and is generally not recommended for safety-critical or pressure-bearing applications. If you must reuse: - Inspect visually for any deformation, cracks, corrosion, or loss of plating. Any damage means discard. - Verify the ear and band retain original shape and clamping geometry; uneven or stretched material will not seal properly. - Test on a non-critical sample hose under working pressure before regular use. - Re-tighten only with the correct dedicated pliers to achieve comparable clamping force; avoid improvised crimps. - Preferably replace with a new clamp for restored reliability, especially for reinforced hoses, high-vibration or safety-related systems. In summary, reuse is a risk-reduction exception—only reuse after careful inspection, testing and correct re-crimping, but replacement with a new One-Piece Carbon Steel Ear Clip Ring with Single Eye is the safer choice.

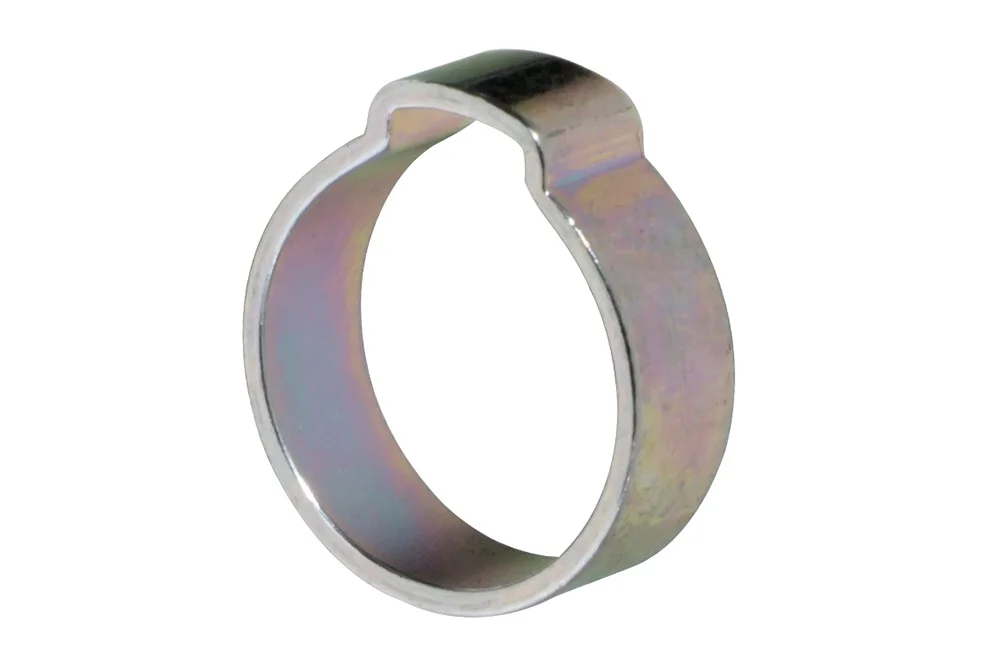

One-Piece Carbon Steel Ear Clip Ring with Single Eye

All products, Clamps for mounting ends/

Additional information

Material	CS – steel (cast iron)

The EAR CLIP clamp ring with a single ear is a reliable solution for securing a wide range of low-pressure hoses, whether reinforced with braid or without additional reinforcement. Designed for efficiency, it allows for fast and effortless installation using dedicated pliers, making it an excellent choice for both professional and industrial applications. Its carefully rounded inner edges ensure optimal protection of the hose surface, preventing wear or damage during use and extending the service life of the connection. Manufactured from durable galvanized carbon steel, the clamp offers outstanding resistance to corrosion and mechanical stress, guaranteeing long-lasting performance even in demanding environments. This robust yet easy-to-use fastening element combines strength, safety, and convenience, making it an indispensable component for achieving secure and reliable hose connections.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AB-03012013	Clamp ring. EAR CLIP-1 9÷11 mm, W1	-	-	In stock	Enquiry
AB-03012021	Clamp ring. EAR CLIP-1 10÷12 mm, W1	-	-	In stock	Enquiry
AB-03012030	Clamp ring. EAR CLIP-1 11÷13 mm, W1	-	-	In stock	Enquiry
AB-03012048	Clamp ring. EAR CLIP-1 12÷14 mm, W1	-	-	In stock	Enquiry
AB-03012056	Clamp ring. EAR CLIP-1 14÷16 mm, W1	-	-	In stock	Enquiry
AB-03012064	Clamp ring. EAR CLIP-1 16÷18 mm, W1	-	-	In stock	Enquiry
AB-03012072	Clamp ring. EAR CLIP-1 8÷10 mm, W1	-	-	In stock	Enquiry
AB-03012080	Clamp ring. EAR CLIP-1 7÷9 mm, W1	-	-	In stock	Enquiry
