Is the Straight Connector G, Carbon Steel suitable for high‑pressure hydraulic systems across its LL, L, and S strength categories?

Straight Connector G, Carbon Steel Format: Yes — with qualifications. The DIN 2353 Straight Connector G is offered in three strength categories (LL, L, S) specifically to match different pressure ranges and application demands. Manufactured from carbon steel with a protective galvanised finish and a 24° socket with external metric threads, the design and materials provide reliable, leak‑free joints suitable for hydraulic systems. - LL (very light series): intended for low‑pressure applications; not suitable for high‑pressure hydraulic systems. - L (light series): suitable for moderate pressure hydraulic applications depending on system specifications; verify pressure rating against your system’s maximum working pressure. - S (heavy series): designed for high‑pressure hydraulic systems; appropriate provided the connector’s rated working pressure meets or exceeds the system requirements. Always confirm the specific pressure ratings and compatibility (thread size, torque, sealing requirements, and fluid/media) from the manufacturer’s datasheet and perform proper installation and testing before use in high‑pressure service.

What are the recommended pressure limits and typical application examples for the Straight Connector G, Carbon Steel in LL, L, and S strength categories?

Straight Connector G, Carbon Steel Format — recommended pressure limits and typical application examples: - LL (very light series) - Recommended pressure limit: up to ~160 bar (approx. 2,300 psi) - Typical applications: low‑pressure hydraulic lines, pneumatic supply lines, instrumentation, laboratory equipment, light machinery and assembly fixtures where weight and easy handling are priorities. - L (light series) - Recommended pressure limit: up to ~350 bar (approx. 5,000 psi) - Typical applications: general industrial hydraulics, mobile equipment, medium‑duty presses, conveyor systems, and manufacturing machinery requiring reliable medium‑pressure connections. - S (heavy series) - Recommended pressure limit: up to ~630–700 bar (approx. 9,000–10,000 psi) - Typical applications: high‑pressure hydraulic systems, heavy machinery, construction and mining equipment, high‑pressure test rigs, and other demanding industrial environments where maximum strength and leak‑free performance are critical. Note: Exact allowable pressures depend on size, thread variant, temperature, fluid type and system safety factors; always verify against manufacturer datasheets and applicable standards before use.

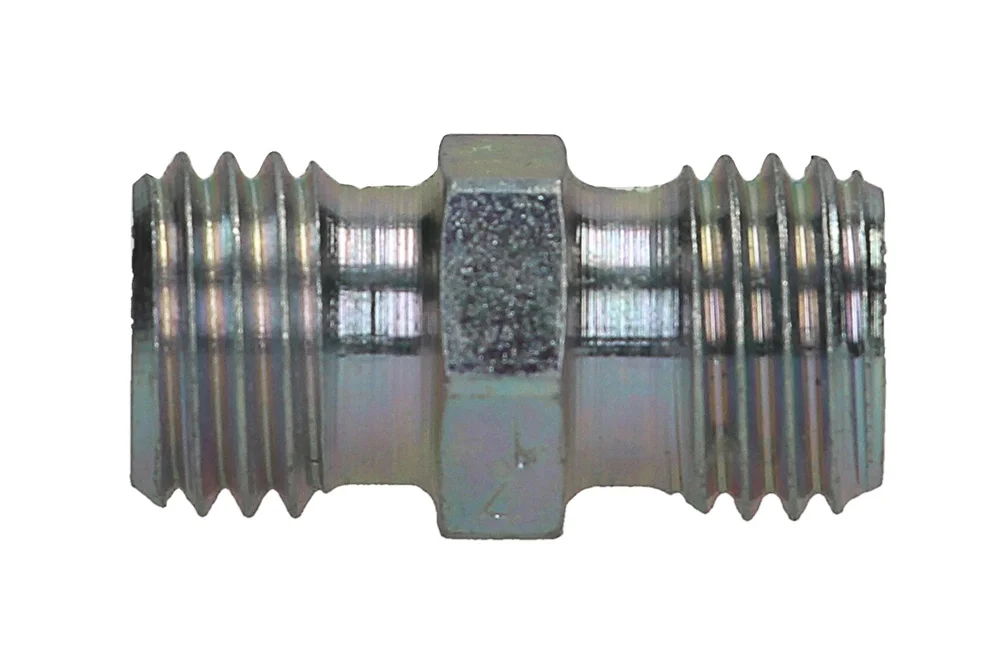

Straight Connector G, Carbon Steel

Additional information

Material	CS – steel (cast iron)

The DIN 2353 straight fitting, type G, is a high‑quality connector designed with a 24° socket and equipped with external metric threads on both sides, ensuring secure and reliable assembly in hydraulic and pneumatic systems. Available in three strength categories—LL (very light series), L (light series), and S (heavy series)—it offers versatile solutions tailored to different pressure ranges and application requirements. Manufactured from durable carbon steel and finished with a protective galvanization, the fitting provides excellent resistance to corrosion and mechanical wear, extending service life even in demanding environments. Its precise engineering guarantees leak‑free performance, easy installation, and compatibility with a wide range of industrial systems. This makes it an ideal choice for professionals seeking dependable connections that combine strength, efficiency, and long‑term reliability.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-G-04LL	DIN 2353 connector G 4LL	-	100	In stock	Enquiry
HD-G-06L	DIN 2353 connector G 6L	-	315	In stock	Enquiry
HD-G-06LL	DIN 2353 connector G 6LL	-	100	In stock	Enquiry
HD-G-06S	DIN 2353 connector G 6S	-	630	In stock	Enquiry
HD-G-08L	DIN 2353 connector G 8L	-	315	In stock	Enquiry
HD-G-08LL	DIN 2353 G 8LL fitting	-	100	In stock	Enquiry
HD-G-08S	DIN 2353 G 8S fitting	-	630	In stock	Enquiry
HD-G-10L	DIN 2353 fitting G 10L	-	315	In stock	Enquiry
HD-G-10S	DIN 2353 fitting G 10S	-	630	In stock	Enquiry
HD-G-12L	DIN 2353 fitting G 12L	-	315	In stock	Enquiry
HD-G-12S	DIN 2353 connector G 12S	-	630	In stock	Enquiry
HD-G-14S	DIN 2353 fitting G 14S	-	630	In stock	Enquiry
HD-G-15L	DIN 2353 fitting G 15L	-	315	In stock	Enquiry
HD-G-16S	DIN 2353 connector G 16S	-	400	In stock	Enquiry
HD-G-18L	DIN 2353 connector G 18L	-	315	In stock	Enquiry
HD-G-20S	DIN 2353 fitting G 20S	-	400	In stock	Enquiry
HD-G-22L	DIN 2353 fitting G 22L	-	160	In stock	Enquiry
HD-G-25S	DIN 2353 fitting G 25S	-	400	In stock	Enquiry
HD-G-28L	DIN 2353 connector G 28L	-	160	In stock	Enquiry
HD-G-30S	DIN 2353 fitting G 30S	-	400	In stock	Enquiry
HD-G-35L	DIN 2353 fitting G 35L	-	160	In stock	Enquiry
HD-G-38S	DIN 2353 G 38S fitting	-	315	In stock	Enquiry
HD-G-42L	DIN 2353 fitting G 42L	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The DIN 2353 straight fitting, type G, is a high‑quality connector designed with a 24° socket and equipped with external metric threads on both sides, ensuring secure and reliable assembly in hydraulic and pneumatic systems. Available in three strength categories—LL (very light series), L (light series), and S (heavy series)—it offers versatile solutions tailored to different pressure ranges and application requirements. Manufactured from durable carbon steel and finished with a protective galvanization, the fitting provides excellent resistance to corrosion and mechanical wear, extending service life even in demanding environments. Its precise engineering guarantees leak‑free performance, easy installation, and compatibility with a wide range of industrial systems. This makes it an ideal choice for professionals seeking dependable connections that combine strength, efficiency, and long‑term reliability.
