Is the MAV Pressure Gauge with Straight Carbon Steel Fitting MAV-B compatible with both BSP and DIN 2353 connections?

Yes. The MAV Pressure Gauge with Straight Carbon Steel Fitting (MAV-B) is compatible with both BSP and DIN 2353 connections: it incorporates an internal cylindrical BSP thread with a sealing ring for BSP compatibility and a 24° DIN 2353 socket with external metric thread for DIN 2353 compatibility, available in L (light) and S (heavy) series and manufactured from galvanized carbon steel for durability and corrosion resistance.

Can the MAV Pressure Gauge with Straight Carbon Steel Fitting MAV-B be used in high-vibration environments without additional support or anti-vibration measures?

MAV Pressure Gauge with Straight Carbon Steel Fitting: The MAV-B fitting is built from high‑quality carbon steel (galvanized) in light (L) and heavy (S) series and uses a robust 24° DIN 2353 socket with a sealing ring and standardized threads, which gives good mechanical strength, corrosion resistance and reliable sealing. However, the product description does not specify vibration ratings, fatigue limits, or dynamic testing under high‑vibration conditions. Therefore, while the heavy (S) version will tolerate higher mechanical loads than the light (L) version and the galvanized carbon steel construction improves wear resistance, you should not assume it is suitable for high‑vibration environments without additional measures. For safety and longevity, use anti‑vibration supports, flexible connectors, proper mounting clamps, or select a vibration‑rated gauge/fitting assembly certified for your specific vibration profile. Also consult manufacturer data sheets or test results and perform application‑specific validation (vibration testing, torque and fatigue analysis) before final installation.

MAV Pressure Gauge with Straight Carbon Steel Fitting

Additional information

Material	CS – steel (cast iron)

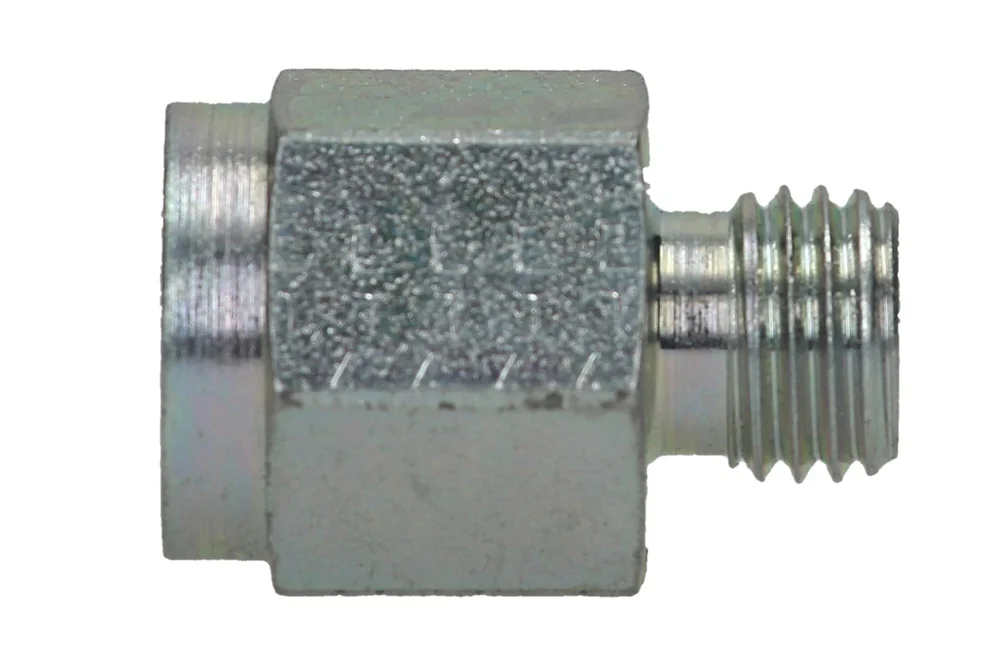

The DIN 2353 straight pressure gauge fitting, type MAV-B, is a reliable connection element designed for precise and secure integration in hydraulic and pneumatic systems. It features an internal cylindrical BSP thread with a sealing ring, combined with a 24° DIN 2353 socket and an external metric thread, ensuring tightness, durability, and compatibility with a wide range of applications. Available in both L (light series) and S (heavy series), this fitting provides flexibility to meet varying pressure and performance requirements. Manufactured from high-quality carbon steel with a galvanized finish, it offers excellent resistance to corrosion and mechanical wear, extending service life even under demanding operating conditions. Its robust construction guarantees safe and efficient installation, while the standardized design ensures seamless interchangeability within existing systems. This makes the MAV-B fitting an ideal choice for industries seeking dependable solutions for pressure gauge connections, delivering consistent performance, reduced downtime, and long-term reliability.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-MAV-06L-B-04	DIN 2353 connector MAV 6L 1/4" BSP	-	315	In stock	Enquiry
HD-MAV-06S-B-08	DIN 2353 connector MAV 6S 1/2" BSP	-	630	In stock	Enquiry
HD-MAV-08L-B-04	DIN 2353 connector MAV 8L 1/4" BSP	-	315	In stock	Enquiry
HD-MAV-08S-B-08	DIN 2353 connector MAV 8S 1/2" BSP	-	630	In stock	Enquiry
HD-MAV-10L-B-04	DIN 2353 connector MAV 10L 1/4" BSP	-	315	In stock	Enquiry
HD-MAV-10S-B-08	DIN 2353 connector MAV 10S 1/2" BSP	-	630	In stock	Enquiry
HD-MAV-12L-B-04	DIN 2353 connector MAV 12L 1/4" BSP	-	315	In stock	Enquiry
HD-MAV-12S-B-08	DIN 2353 connector MAV 12S 1/2" BSP	-	630	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The DIN 2353 straight pressure gauge fitting, type MAV-B, is a reliable connection element designed for precise and secure integration in hydraulic and pneumatic systems. It features an internal cylindrical BSP thread with a sealing ring, combined with a 24° DIN 2353 socket and an external metric thread, ensuring tightness, durability, and compatibility with a wide range of applications. Available in both L (light series) and S (heavy series), this fitting provides flexibility to meet varying pressure and performance requirements. Manufactured from high-quality carbon steel with a galvanized finish, it offers excellent resistance to corrosion and mechanical wear, extending service life even under demanding operating conditions. Its robust construction guarantees safe and efficient installation, while the standardized design ensures seamless interchangeability within existing systems. This makes the MAV-B fitting an ideal choice for industries seeking dependable solutions for pressure gauge connections, delivering consistent performance, reduced downtime, and long-term reliability.
