Socket quick coupling pneumatic DN7.6 with valve, with thread, steel carbon, CEJN 320 ESAFE

Additional information

Material

CS – steel (cast iron)

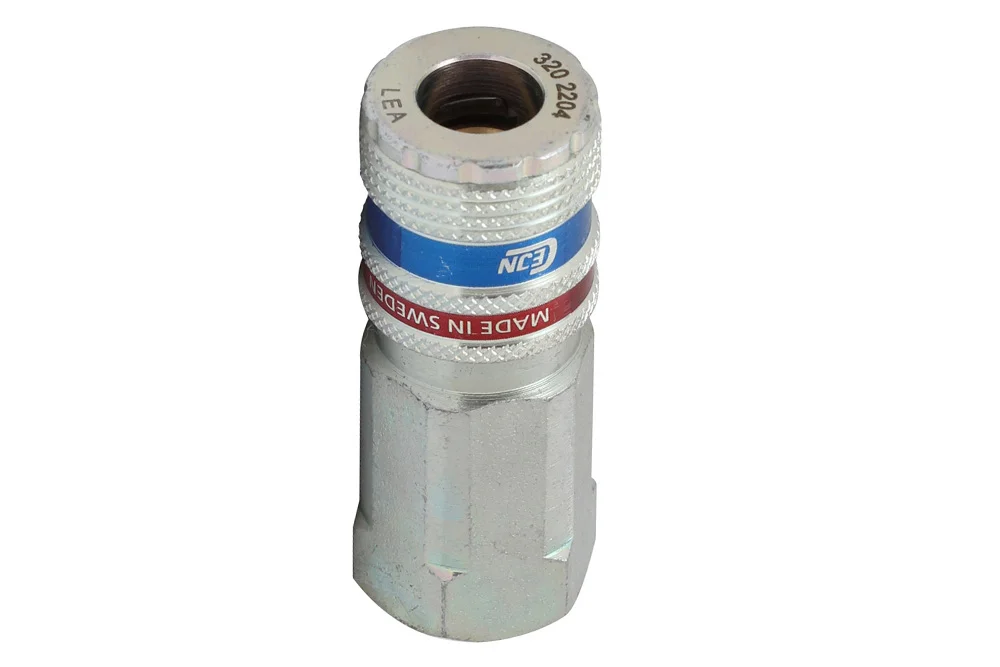

Socket quick coupling CEJN DN7.6 in version ESAFE (disconnected without pressure, for avoiding danger recoil, compliant with the standard ISO 4414 and EN 983) with thread external BSPT or internal BSP. versatile used in industry, mainly in installations pneumatic. operated one hand at minimum force required for connections. made in accordance with Eurostandard DN7.2. Working pressure: 16 bar. flow capacity: 2250 l/min (Pe=6 bar, Δp=0.5 bar – air). Material: brass/steel galvanized. sealing: NBR. Operating temperature: od -20°C up to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
CJ-103202152Quick coupling socket CEJN 320 ESAFE, 1/4" BSPT male-16In stock0 €
Enquiry
CJ-103202154Quick coupling socket CEJN 320 ESAFE, 3/8" BSPT male-16In stock0 €
Enquiry
CJ-103202155Quick coupling socket CEJN 320 ESAFE, 1/2" BSPT male-16In stock0 €
Enquiry
CJ-103202202Quick coupling socket CEJN 320 ESAFE, 1/4" BSP female-16In stock0 €
Enquiry
CJ-103202204Quick coupling socket CEJN 320 ESAFE, 3/8" BSP female-16In stock0 €
Enquiry
CJ-103202205Quick coupling socket CEJN 320 ESAFE, 1/2" BSP female-16In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Socket quick coupling CEJN DN7.6 in version ESAFE (disconnected without pressure, for avoiding danger recoil, compliant with the standard ISO 4414 and EN 983) with thread external BSPT or internal BSP. versatile used in industry, mainly in installations pneumatic. operated one hand at minimum force required for connections. made in accordance with Eurostandard DN7.2. Working pressure: 16 bar. flow capacity: 2250 l/min (Pe=6 bar, Δp=0.5 bar – air). Material: brass/steel galvanized. sealing: NBR. Operating temperature: od -20°C up to +100°C.

Additional information

Material

CS – steel (cast iron)
