Is the DKJ Hydraulic End ZJW110, Carbon Steel compatible with standard crimping sleeves for 74° cone (DKJ) hose assemblies?

Yes. The DKJ Hydraulic End ZJW110, Carbon Steel Format is compatible with standard crimping sleeves for 74° cone (DKJ) hose assemblies. It features a classic hydraulic tail and an internal UNF thread with a nut, designed to seal securely on a 74° cone (DKJ) and engineered specifically for use with crimping sleeves matched to the hose type. Manufactured from carbon steel with a galvanized coating, it provides a precise fit, durable sealing and long-lasting performance in demanding applications.

Can DKJ Hydraulic End ZJW110, Carbon Steel be used with hoses requiring different cone angles if adapted with matching sleeves?

Yes — DKJ Hydraulic End ZJW110, Carbon Steel can be used with hoses that have different cone angles only if you adapt them with properly matched crimping sleeves and ensure the mating sealing surfaces match the 74° DKJ cone specification. The product is engineered to seal on a 74° cone (DKJ) and relies on crimping sleeves matched to the hose type to achieve a precise, durable fit. Using an adapter or sleeve that re-profiles the hose end to the correct 74° cone and is rated for the same pressure, material compatibility, and mechanical loads will allow safe and reliable use. Do not attempt direct assembly with hoses or fittings of different cone angles without an appropriate adapter/sleeve, and always verify compatibility (pressure rating, thread/unfitting, sleeve dimensions, material, and crimping procedure) and perform pressure testing according to industry standards.

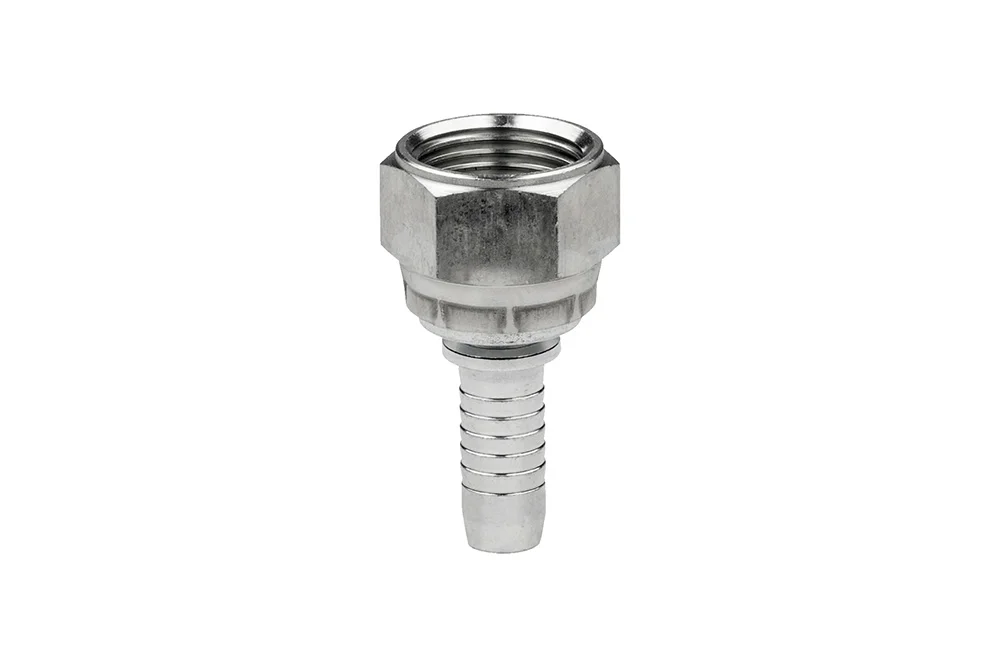

A fitting hydraulic DKJ, type ZJW110, steel carbon

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

A fitting hydraulic standard (type Z – of standard „tail” hydraulic for hose), with a female UNF thread with a nut, sealing on a 74° cone (DKJ). Intended for crimping in hoses hydraulic and industrial using ferrule crimping, appropriate for type hose. Material: steel carbon, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZJW110-06-03	Fitting JIC 3/8" female, hose 3/16", 74° cone	5	-	In stock	Enquiry
TI-ZJW110-07-03	Fitting JIC 7/16" female, hose 3/16", 74° cone	5	-	In stock	Enquiry
TI-ZJW110-07-04	Fitting JIC 7/16" female, hose 1/4", 74° cone	6	-	In stock	Enquiry
TI-ZJW110-07-05	Fitting JIC 7/16" female, hose 5/16", 74° cone	8	-	In stock	Enquiry
TI-ZJW110-07-06	Fitting JIC 7/16" female, hose 3/8", 74° cone	10	-	In stock	Enquiry
TI-ZJW110-08-03	Fitting JIC 1/2" female, hose 3/16", 74° cone	5	-	In stock	Enquiry
TI-ZJW110-08-04	Fitting JIC 1/2" female, hose 1/4", 74° cone	6	-	In stock	Enquiry
TI-ZJW110-08-05	Fitting JIC 1/2" female, hose 5/16", 74° cone	8	-	In stock	Enquiry
TI-ZJW110-09-03	Fitting JIC 9/16" female, hose 3/16", 74° cone	5	-	In stock	Enquiry
TI-ZJW110-09-04	Fitting JIC 9/16" female, hose 1/4", 74° cone	6	-	In stock	Enquiry
TI-ZJW110-09-05	Fitting JIC 9/16" female, hose 5/16", 74° cone	8	-	In stock	Enquiry
TI-ZJW110-09-06	Fitting JIC 9/16" female, hose 3/8", 74° cone	10	-	In stock	Enquiry
TI-ZJW110-10-04	Fitting JIC 5/8" female, hose 1/4", 74° cone	6	-	In stock	Enquiry
TI-ZJW110-10-05	Fitting JIC 5/8" female, hose 5/16", 74° cone	8	-	In stock	Enquiry
TI-ZJW110-10-06	Fitting JIC 5/8" female, hose 3/8", 74° cone	10	-	In stock	Enquiry
TI-ZJW110-12-05	Fitting JIC 3/4" female, hose 5/16", 74° cone	8	-	In stock	Enquiry
TI-ZJW110-12-06	Fitting JIC 3/4" female, hose 3/8", 74° cone	10	-	In stock	Enquiry
TI-ZJW110-12-08	Fitting JIC 3/4" female, hose 1/2", 74° cone	12	-	In stock	Enquiry
TI-ZJW110-14-06	Fitting JIC 7/8" female, hose 3/8", 74° cone	10	-	In stock	Enquiry
TI-ZJW110-14-08	Fitting JIC 7/8" female, hose 1/2", 74° cone	12	-	In stock	Enquiry
TI-ZJW110-14-10	Fitting JIC 7/8" female, hose 5/8", 74° cone	16	-	In stock	Enquiry
TI-ZJW110-14-12	Fitting JIC 7/8" female, hose 3/4", 74° cone	20	-	In stock	Enquiry
TI-ZJW110-17-08	Fitting JIC 1.1/16" female, hose 1/2", 74° cone	12	-	In stock	Enquiry
TI-ZJW110-17-10	Fitting JIC 1.1/16" female, hose 5/8", 74° cone	16	-	In stock	Enquiry
TI-ZJW110-17-12	Fitting JIC 1.1/16" female, hose 3/4", 74° cone	20	-	In stock	Enquiry
TI-ZJW110-17-16	Fitting JIC 1.1/16" female, hose 1", 74° cone	25	-	In stock	Enquiry
TI-ZJW110-19-12	Fitting JIC 1.3/16" female, hose 3/4", 74° cone	20	-	In stock	Enquiry
TI-ZJW110-19-16	Fitting JIC 1.3/16" female, hose 1", 74° cone	25	-	In stock	Enquiry
TI-ZJW110-21-10	Fitting JIC 1.5/16" female, hose 5/8", 74° cone	16	-	In stock	Enquiry
TI-ZJW110-21-12	Fitting JIC 1.5/16" female, hose 3/4", 74° cone	20	-	In stock	Enquiry
TI-ZJW110-21-16	Fitting JIC 1.5/16" female, hose 1", 74° cone	25	-	In stock	Enquiry
TI-ZJW110-21-20	Fitting JIC 1.5/16" female, hose 1.1/4", 74° cone	32	-	In stock	Enquiry
TI-ZJW110-26-16	Fitting JIC 1.5/8" female, hose 1", 74° cone	25	-	In stock	Enquiry
TI-ZJW110-26-20	Fitting JIC 1.5/8" female, hose 1.1/4", 74° cone	32	-	In stock	Enquiry
TI-ZJW110-30-20	Fitting JIC 1.7/8" female, hose 1.1/4", 74° cone	32	-	In stock	Enquiry
TI-ZJW110-30-24	Fitting JIC 1.7/8" female, hose 1.1/2", 74° cone	38	-	In stock	Enquiry
TI-ZJW110-40-32	Fitting JIC 2.1/2" female, hose 2", 74° cone	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A fitting hydraulic standard (type Z – of standard „tail” hydraulic for hose), with a female UNF thread with a nut, sealing on a 74° cone (DKJ). Intended for crimping in hoses hydraulic and industrial using ferrule crimping, appropriate for type hose. Material: steel carbon, galvanized.
