Is the 45° Elbow BSP Female Thread, Cast Iron, Type 120/5 suitable for continuous operation at +300°C and 20 bar?

Yes. The 45° Elbow BSP Female Thread, Cast Iron, Type 120/5 is specified for continuous operation at +300°C and 20 bar. The product description states it is engineered to perform at operating temperatures up to +300°C and lists a working pressure of 20 bar at elevated temperatures up to +300°C, so it is suitable for the conditions you specified.

Can the 45° Elbow BSP Female Thread, Cast Iron, Type 120/5 be used safely at 25 bar when operating temperatures are limited to +120°C?

Yes. The 45° Elbow BSP Female Thread, Cast Iron, Type 120/5 can be used safely at 25 bar provided operating temperatures are limited to +120°C. The product specification states a working pressure of 25 bar at temperatures up to +120°C and 20 bar at temperatures up to +300°C. Ensure installation follows applicable standards, the threads and sealing method are correctly applied, and the system is inspected for compatibility with ductile iron and any conveyed media.

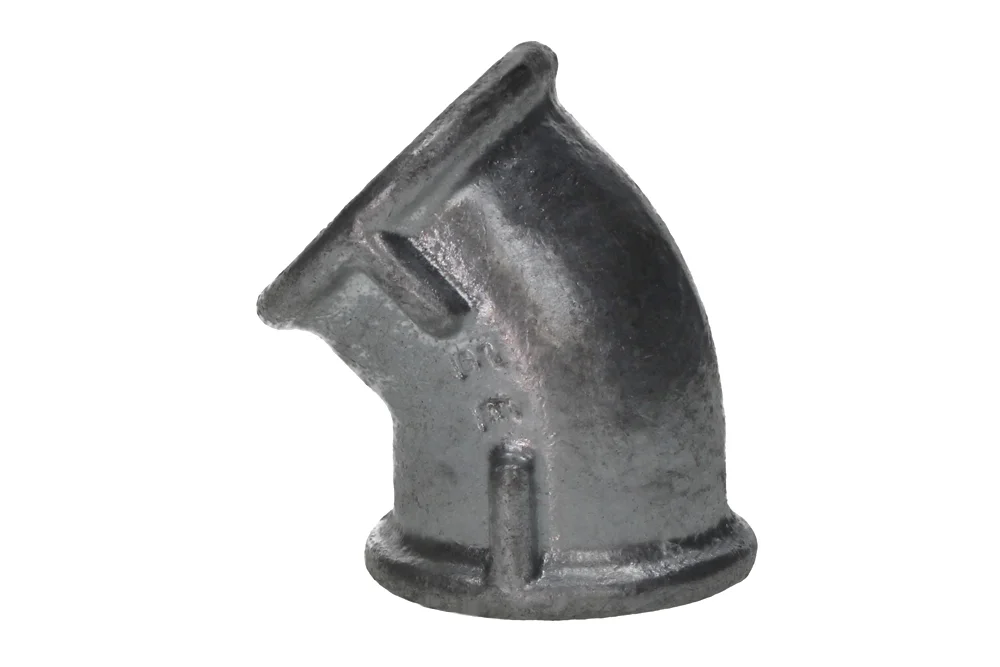

45° Elbow BSP Female Thread, Cast Iron, Type 120/5

Additional information

Material	CS – steel (cast iron)

The 45° elbow with internal BSP thread is a reliable component designed for precise and durable piping connections in demanding industrial installations. Manufactured from high‑quality ductile iron, it ensures excellent strength and resistance to mechanical stress, making it suitable for long‑term operation under challenging conditions. The fitting is engineered to perform at operating temperatures up to +300°C, maintaining consistent efficiency and safety across a wide range of applications. With a working pressure of 25 bar at temperatures up to +120°C and 20 bar at elevated temperatures up to +300°C, it provides dependable performance even in systems exposed to high thermal and pressure loads. Its robust construction and precise threading guarantee secure, leak‑free joints, while the 45° angle enables flexible pipeline routing and space optimization. This makes it an ideal choice for industries seeking durable, high‑performance solutions that combine reliability, versatility, and ease of installation.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EE-1205-08	45° elbow with GW / GW BSP 1/2", galvanized cast iron.	-	25	In stock	Enquiry
EE-1205-12	45° elbow with GW / GW BSP 3/4", galvanized cast iron.	-	25	In stock	Enquiry
EE-1205-16	45° elbow with G thread / G BSP 1", galvanized cast iron.	-	25	In stock	Enquiry
