Is the BSP Female Threaded Cast Iron Coupler Type 270/2 suitable for continuous use at +300°C and 20 bar?

Yes. The BSP Female Threaded Cast Iron Coupler Type 270/2 is suitable for continuous use at +300°C and 20 bar. The product is engineered for temperatures up to +300°C and specifies a working pressure of 20 bar at elevated conditions up to +300°C, confirming it meets the stated operating requirements for continuous service at that temperature and pressure.

Can the BSP Female Threaded Cast Iron Coupler Type 270/2 be used safely in cyclic high-temperature applications approaching +300°C at reduced pressures?

Based on the provided description, the BSP Female Threaded Cast Iron Coupler Type 270/2 is rated for temperatures up to +300°C and for a reduced working pressure of 20 bar at those elevated temperatures. This indicates the coupler is engineered to operate safely at or near +300°C under the specified reduced pressure. However, cyclic high‑temperature service introduces additional fatigue and thermal expansion stresses not explicitly addressed in the description. Safe use in cyclic applications depends on factors such as cycle frequency, temperature ramp rates, actual minimum pressures, the presence of corrosive media, joint assembly torque, gasket/sealing materials, and system support to limit mechanical stresses. Recommendation: the coupling can likely be used in cyclic high‑temperature service approaching +300°C only if (1) operating pressure does not exceed 20 bar at that temperature, (2) thermal cycling parameters are verified against manufacturer guidance or testing, and (3) you confirm compatibility of seals and nearby materials and implement appropriate installation and inspection regimes. For guaranteed safety in cyclic service, consult the manufacturer for explicit approval or fatigue testing data.

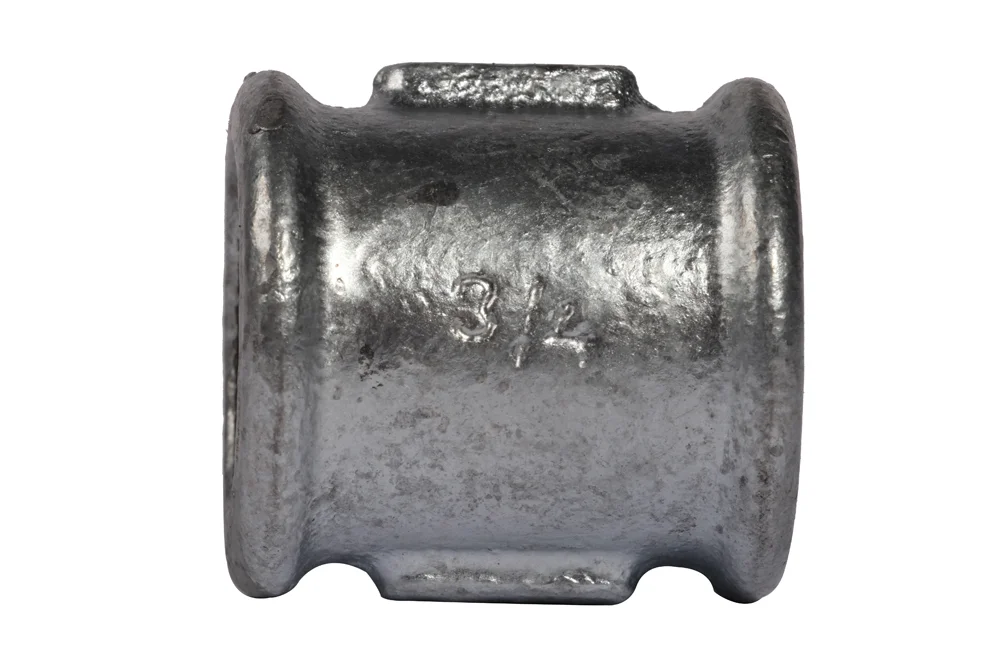

BSP Female Threaded Cast Iron Coupler Type 270/2

Additional information

Material	CS – steel (cast iron)

The BSP internal threaded coupling is a reliable solution designed for secure and durable piping connections in demanding industrial installations. Manufactured from high‑quality ductile iron, it combines exceptional strength with long‑term resistance to wear, ensuring dependable performance even under intensive operating conditions. Engineered to withstand temperatures of up to +300°C, it offers consistent functionality across a wide range of applications, from standard process lines to high‑temperature systems. With a working pressure of 25 bar at temperatures up to +120°C and 20 bar at elevated conditions up to +300°C, this coupling guarantees both safety and efficiency in critical environments. Its precise BSP threading ensures a tight, leak‑free fit, minimizing downtime and maintenance costs. Robust, versatile, and built for industrial reliability, it is the ideal choice for companies seeking to optimize their piping systems with components that deliver proven durability and performance.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EE-2702-04	1/4" coupling, galvanized cast iron.	-	25	In stock	Enquiry
EE-2702-06	3/8" coupling, galvanized cast iron.	-	25	In stock	Enquiry
EE-2702-08	1/2" coupling, galvanized cast iron.	-	25	In stock	Enquiry
EE-2702-12	3/4" coupling, galvanized cast iron.	-	25	In stock	Enquiry
EE-2702-16	1" coupling, galvanized cast iron.	-	25	In stock	Enquiry
EE-2702-20	Coupling 1.1/4", galvanized cast iron.	-	25	In stock	Enquiry
EE-2702-24	Coupling 1.1/2", galvanized cast iron.	-	25	In stock	Enquiry
EE-2702-32	2" coupling, galvanized cast iron.	-	25	In stock	Enquiry
EE-2702-40	Coupling 2.1/2", galvanized cast iron.	-	25	In stock	Enquiry
EE-2702-48	3" coupling, galvanized cast iron.	-	25	In stock	Enquiry
EE-2702-64	4" coupling, galvanized cast iron.	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The BSP internal threaded coupling is a reliable solution designed for secure and durable piping connections in demanding industrial installations. Manufactured from high‑quality ductile iron, it combines exceptional strength with long‑term resistance to wear, ensuring dependable performance even under intensive operating conditions. Engineered to withstand temperatures of up to +300°C, it offers consistent functionality across a wide range of applications, from standard process lines to high‑temperature systems. With a working pressure of 25 bar at temperatures up to +120°C and 20 bar at elevated conditions up to +300°C, this coupling guarantees both safety and efficiency in critical environments. Its precise BSP threading ensures a tight, leak‑free fit, minimizing downtime and maintenance costs. Robust, versatile, and built for industrial reliability, it is the ideal choice for companies seeking to optimize their piping systems with components that deliver proven durability and performance.
