Is the Long Arc 90° Elbow with BSP Female Thread, Cast Iron, Type 2/15 rated for continuous operation at +300°C and 20 bar?

Yes. The Long Arc 90° Elbow with BSP Female Thread, Cast Iron, Type 2/15 is rated for continuous operation at +300°C and 20 bar. The product is specified to operate up to +300°C and to withstand a working pressure of 20 bar at elevated temperatures up to +300°C.

Can the Long Arc 90° Elbow with BSP Female Thread, Cast Iron, Type 2/15 be used with steam applications at temperatures up to +300°C?

Yes. The Long Arc 90° Elbow with BSP Female Thread, Cast Iron, Type 2/15 is rated for operation up to +300°C and is suitable for steam applications at that temperature. It is manufactured from high‑quality ductile iron and is specified to provide a working pressure of 20 bar at temperatures up to +300°C, with secure BSP female threading for leak‑free connections. Ensure system design (pressure, compatibility, and safety factors) matches these ratings and follow applicable steam‑system installation and inspection practices.

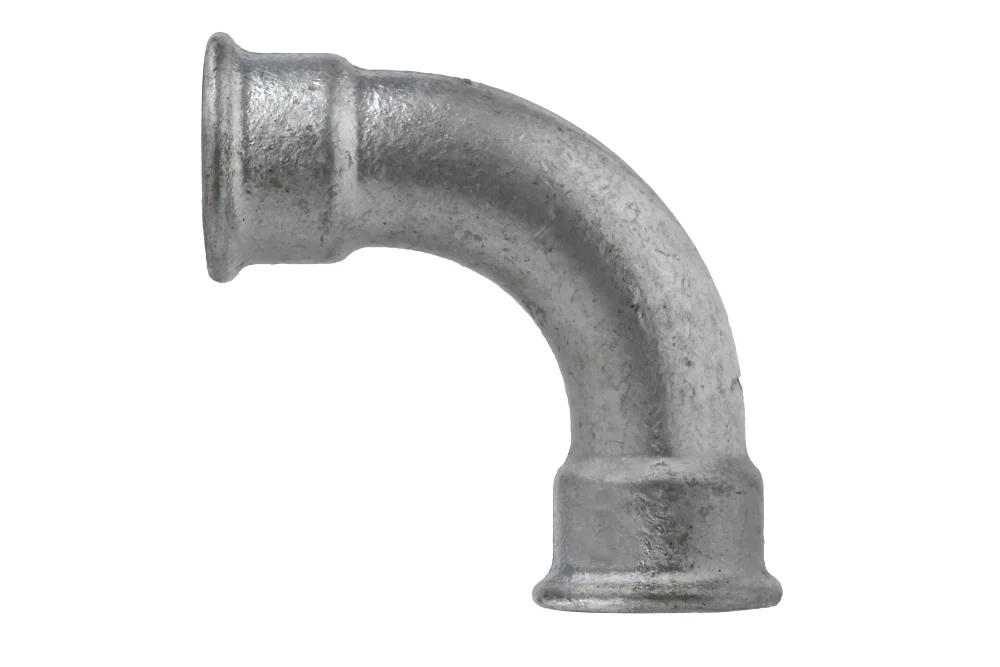

Long Arc 90° Elbow with BSP Female Thread, Cast Iron, Type 2/15

Additional information

Material	CS – steel (cast iron)

The long 90° bend with internal BSP thread is a robust and reliable solution designed for demanding piping connections in industrial installations. Manufactured from high‑quality ductile iron, it combines exceptional durability with resistance to mechanical stress, ensuring long service life even under intensive operating conditions. Engineered to perform at temperatures up to +300°C, it guarantees consistent functionality in both standard and high‑temperature environments. With a working pressure capacity of 25 bar at temperatures up to +120°C and 20 bar at elevated temperatures up to +300°C, this fitting provides dependable performance across a wide range of applications. Its precise BSP threading allows for secure and leak‑free connections, simplifying installation and maintenance while enhancing overall system efficiency. This bend is an excellent choice for industries seeking a reliable component that ensures safety, efficiency, and uninterrupted operation of their piping systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EE-215-04	Long 90° bend with GW / GW BSP 1/4", galvanized cast iron.	-	25	In stock	Enquiry
EE-215-06	Long 90° bend with GW / GW BSP 3/8", galvanized cast iron.	-	25	In stock	Enquiry
EE-215-08	Long 90° bend with GW / GW BSP 1/2", galvanized cast iron.	-	25	In stock	Enquiry
EE-215-12	Long 90° bend with GW / GW BSP 3/4", galvanized cast iron.	-	25	In stock	Enquiry
EE-215-16	Long 90° bend with GW / GW BSP 1", galvanized cast iron.	-	25	In stock	Enquiry
EE-215-20	Long 90° bend with GW / GW BSP 1.1/4", galvanized cast iron.	-	25	In stock	Enquiry
EE-215-24	Long 90° bend with GW / GW BSP 1.1/2", galvanized cast iron.	-	25	In stock	Enquiry
EE-215-32	Long 90° bend with GW / GW BSP 2", galvanized cast iron.	-	25	In stock	Enquiry
EE-215-40	Long 90° bend with GW / GW BSP 2.1/2", galvanized cast iron.	-	25	In stock	Enquiry
EE-215-48	Long 90° bend with GW / GW BSP 3", galvanized cast iron.	-	25	In stock	Enquiry
EE-215-64	Long 90° bend with GW / GW BSP 4", galvanized cast iron.	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The long 90° bend with internal BSP thread is a robust and reliable solution designed for demanding piping connections in industrial installations. Manufactured from high‑quality ductile iron, it combines exceptional durability with resistance to mechanical stress, ensuring long service life even under intensive operating conditions. Engineered to perform at temperatures up to +300°C, it guarantees consistent functionality in both standard and high‑temperature environments. With a working pressure capacity of 25 bar at temperatures up to +120°C and 20 bar at elevated temperatures up to +300°C, this fitting provides dependable performance across a wide range of applications. Its precise BSP threading allows for secure and leak‑free connections, simplifying installation and maintenance while enhancing overall system efficiency. This bend is an excellent choice for industries seeking a reliable component that ensures safety, efficiency, and uninterrupted operation of their piping systems.
