Is the Cast Iron Screw BSP Female Thread / BSPT Male Thread Type 341/60 suitable for continuous use at temperatures up to +300°C and pressures up to 25 bar?

Cast Iron Screw BSP Female Thread / BSPT Male Thread Type 341/60 is rated for operating temperatures up to +300°C. It is suitable for continuous use at pressures up to 25 bar only when the temperature does not exceed +120°C. At temperatures above +120°C and up to +300°C the maximum allowable working pressure is reduced to 20 bar. Therefore it is not suitable for continuous use at 25 bar across the full +300°C range; use at 25 bar is limited to ≤+120°C.

Can the Cast Iron Screw BSP Female Thread / BSPT Male Thread Type 341/60 maintain sealing integrity and mechanical strength during thermal cycling between ambient and +300°C?

Yes. Cast Iron Screw BSP Female Thread / BSPT Male Thread Type 341/60 is designed to maintain both sealing integrity and mechanical strength during thermal cycling between ambient and +300°C, within its specified limits. Manufactured from high-quality ductile iron and featuring a conical internal sealing surface, the fitting provides a tight, leak-resistant joint that resists mechanical stress. The product is engineered for operation up to +300°C with rated working pressures of 25 bar up to +120°C and 20 bar up to +300°C, indicating the material, thread geometry and sealing design are intended to tolerate repeated temperature excursions in that range. Important caveats: long-term performance during frequent or rapid thermal shocks depends on system-specific factors (cycle rate, temperature gradients, bolt/preload condition, mating material compatibility, use of appropriate sealing compounds or gaskets, and installation torque). For critical or safety‑critical applications, validate with application-specific testing or consult the manufacturer for qualification under the exact cycling profile.

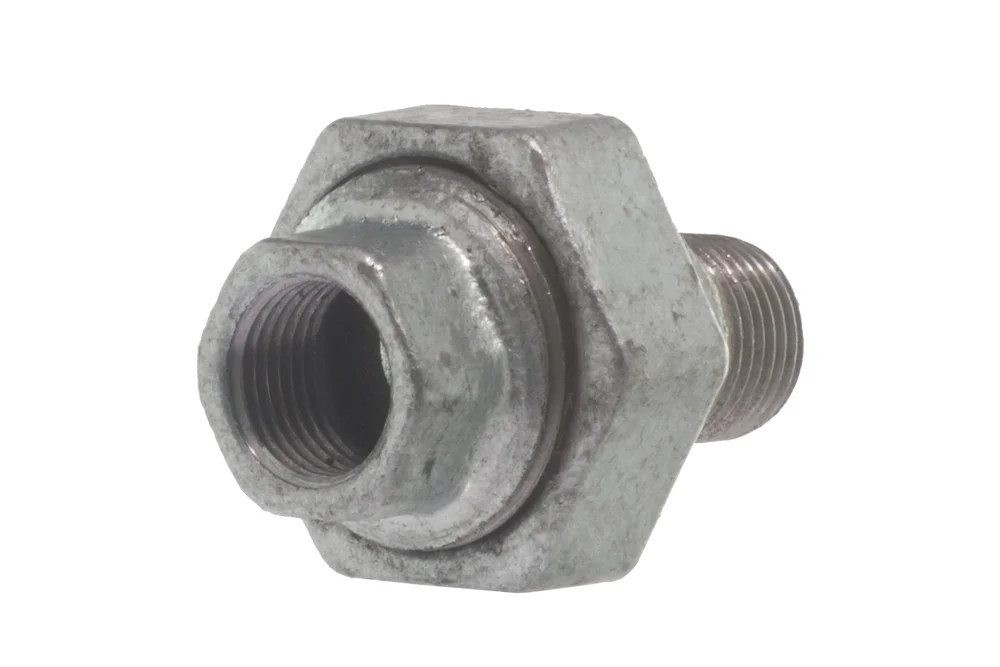

Cast Iron Screw BSP Female Thread / BSPT Male Thread Type 341/60

Additional information

Material	CS – steel (cast iron)
Standard length [m]	30

The screw fitting with internal BSP thread and external BSPT thread is a reliable solution designed for secure and durable piping connections in demanding industrial installations. Manufactured from high-quality ductile iron, it ensures excellent strength and resistance to mechanical stress, making it suitable for long-term use in challenging environments. The conical sealing between internal components provides a tight and leak-free connection, minimizing downtime and maintenance costs. Engineered to perform under varying conditions, the fitting withstands operating temperatures of up to +300°C, with a working pressure of 25 bar at temperatures up to +120°C and 20 bar at higher ranges up to +300°C. This versatility makes it an ideal choice for industries requiring robust and efficient flow control, such as energy, chemical processing, and heavy manufacturing. Its precise threading guarantees compatibility with standard piping systems, while the durable material and optimized design contribute to enhanced safety, reliability, and performance in every application.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EE-34160-06	Fitting with G1/2 BSP / G1/2 BSPT 3/8", cone seal, galvanized cast iron.	-	25	In stock	Enquiry
EE-34160-08	Fitting with G1/2" BSP / G1/2" BSPT, cone seal, galvanized cast iron.	-	25	In stock	Enquiry
EE-34160-12	Fitting with GW BSP / GZ BSPT 3/4", cone seal, galvanized cast iron.	-	25	In stock	Enquiry
EE-34160-16	Screw fitting with G1" BSP / G1" BSPT, cone seal, galvanized cast iron.	-	25	In stock	Enquiry
EE-34160-20	Fitting with G1 BSP / G1 BSPT 1.1/4", cone seal, galvanized cast iron.	-	25	In stock	Enquiry
EE-34160-24	Fitting with GW BSP / GZ BSPT 1.1/2", cone seal, galvanized cast iron.	-	25	In stock	Enquiry
EE-34160-32	Fitting with GW BSP / GZ BSPT 2", cone seal, galvanized cast iron.	-	25	In stock	Enquiry
EE-34160-40	Fitting with G1/2 BSP / G1/2 BSPT 2.1/2", cone seal, galvanized cast iron.	-	25	In stock	Enquiry
EE-34160-48	Fitting with G1 BSP / G1 BSPT 3", cone seal, galvanized cast iron.	-	25	In stock	Enquiry
EE-34160-64	Fitting with G1 BSP / G1 BSPT 4", cone seal, galvanized cast iron.	-	25	In stock	Enquiry
