Is the Cast Iron 45° T-Piece with BSP Female Thread, Type 165/30 rated for 25 bar at +120°C and 20 bar up to +300°C?

Yes. The Cast Iron 45° T-Piece with BSP Female Thread, Type 165/30 is rated for 25 bar at up to +120°C and 20 bar at temperatures up to +300°C.

Can the Cast Iron 45° T-Piece with BSP Female Thread, Type 165/30 be used with fluids other than water at elevated temperatures up to +300°C?

Cast Iron 45° T-Piece with BSP Female Thread, Type 165/30 is rated for operating temperatures up to +300°C and specified working pressures (25 bar up to +120°C, 20 bar up to +300°C). However, suitability for fluids other than water at elevated temperatures depends on several factors not covered by the provided description: chemical compatibility of ductile iron with the specific fluid (corrosion, erosion, stress corrosion cracking), presence of aggressive additives or gases, fluid viscosity and velocity (affecting erosion/cavitation), sealing materials used in joints, and safety/regulatory requirements for the conveyed medium. For non-corrosive, non-aggressive fluids (e.g. many oils, steam, inert gases) within the stated temperature and pressure limits, the fitting is likely acceptable. For corrosive or reactive fluids (strong acids, alkalis, chlorides, certain organic solvents) or where contamination must be avoided, ductile iron may be unsuitable. Recommendation: verify chemical compatibility with the fluid and operating conditions, confirm gasket/seal material compatibility, and consult the manufacturer’s chemical resistance data or technical approval before use.

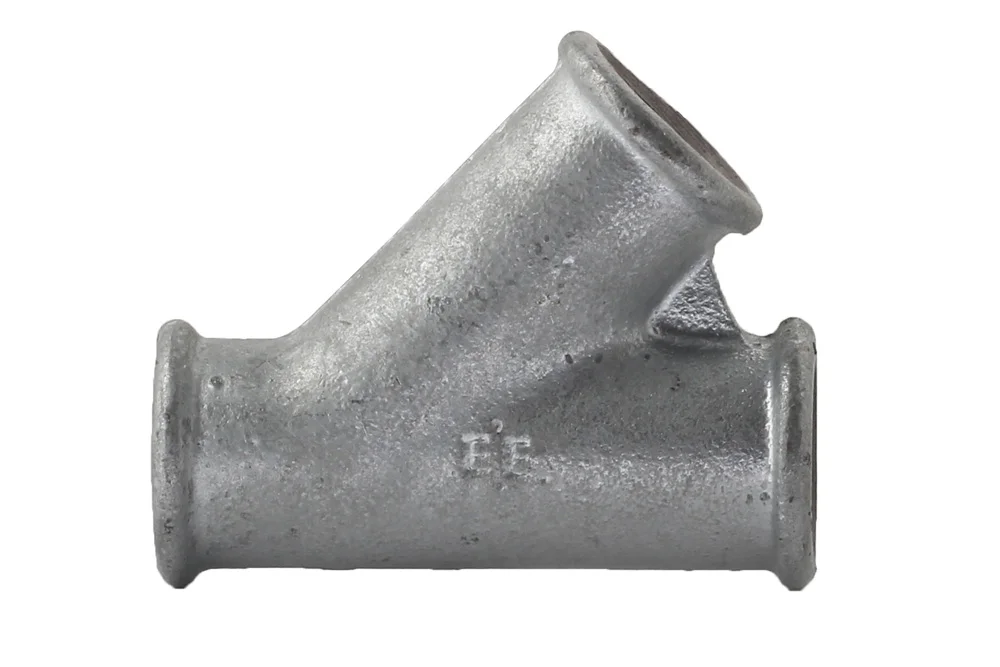

Tee 45° with thread internal BSP, cast iron, type 165/30

Additional information

Material	CS – steel (cast iron)

Tee 45° with thread internal BSP for use in connections pipe installation industrial. Material: malleable cast iron. Operating temperature: up to +300°C. Working pressure: 25 bar (up to +120°C), 20 bar (up to +300°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EE-16530-08	Tee 45° with 1/2" BSP female, cast iron galvanized.	-	25	In stock	Enquiry
EE-16530-12	Tee 45° with 3/4" BSP female, cast iron galvanized.	-	25	In stock	Enquiry
EE-16530-16	Tee 45° with 1" BSP female, cast iron galvanized.	-	25	In stock	Enquiry
EE-16530-20	Tee 45° with 1.1/4" BSP female, cast iron galvanized.	-	25	In stock	Enquiry
EE-16530-24	Tee 45° with 1.1/2" BSP female, cast iron galvanized.	-	25	In stock	Enquiry
EE-16530-32	Tee 45° with 2" BSP female, cast iron galvanized.	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Tee 45° with thread internal BSP for use in connections pipe installation industrial. Material: malleable cast iron. Operating temperature: up to +300°C. Working pressure: 25 bar (up to +120°C), 20 bar (up to +300°C).
