Is the CEJN 525 hydraulic quick coupling plug, BSP female thread with valve & eliminator, galvanized steel compatible with hydraulic oil and rated for 450 bar working pressure?

Yes. The CEJN 525 hydraulic quick coupling plug, BSP female thread with valve & eliminator, galvanized steel is designed for hydraulic power applications with hydraulic oil and is rated for working pressures up to 450 bar (depending on diameter). It features a shut-off valve and NBR seals, is made from high-strength steel with a zinc-nickel coating, and is suitable for a wide temperature range (-30°C to +100°C).

Can the CEJN 525 hydraulic quick coupling plug, BSP female thread with valve & eliminator, galvanized steel be used with steam and chemicals within its specified temperature range?

Yes. The CEJN 525 hydraulic quick coupling plug, BSP female thread with valve & eliminator, galvanized steel can be used with steam and many chemicals as long as operations remain within its specified limits. The product description explicitly lists steam and chemicals among compatible media and specifies a wide operating temperature range of -30°C to +100°C and an NBR sealing system. Note the following constraints: - Temperature: must not exceed +100°C or fall below -30°C. - Sealing material: NBR (nitrile) may be attacked by certain chemicals (strong acids, ketones, some chlorinated solvents, and aromatic hydrocarbons) or by prolonged exposure to high-temperature steam — verify chemical compatibility with NBR. - Pressure: rated up to 450 bar depending on size; ensure operating pressure does not exceed the coupling’s rating. - Corrosion: galvanized (zinc-nickel) steel offers good resistance, but aggressive chemical environments may require additional verification or alternative materials. Recommendation: confirm the specific chemical(s) and their concentrations and the exact steam conditions (temperature, pressure, wet/dry) against NBR and galvanized steel compatibility data before use.

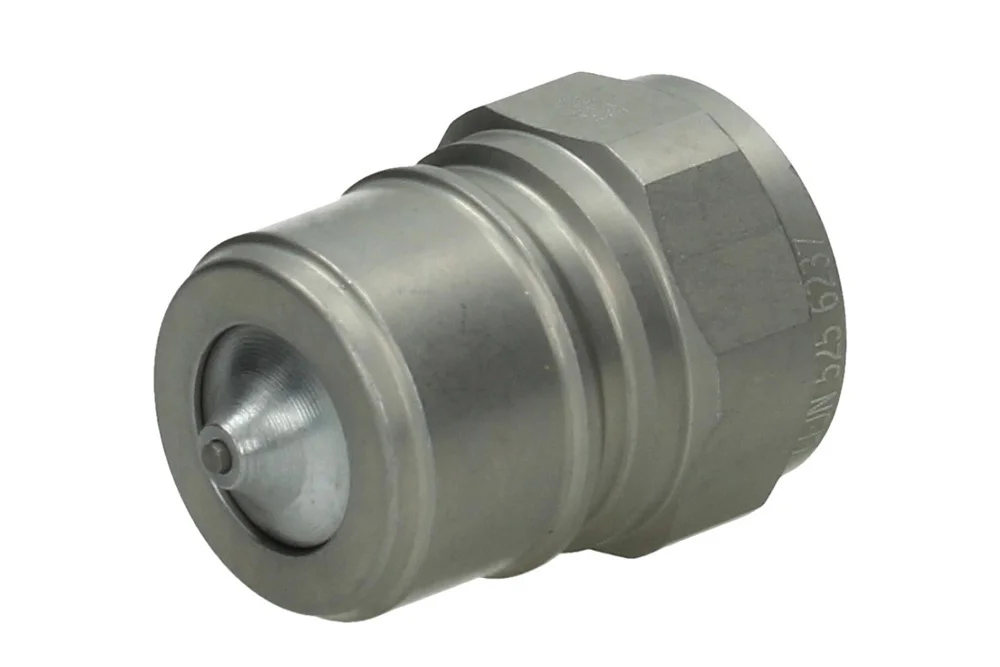

CEJN 525 hydraulic quick coupling plug, BSP female thread with valve & eliminator, galvanized steel

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)

The CEJN Series 525 quick coupling plug from the NORDIC RANGE is engineered to deliver maximum reliability in the most demanding environments. Equipped with a shut-off valve and eliminator, and featuring an internal BSP thread, this robust solution is tailored for hydraulic power applications with hydraulic oil, as well as a wide range of industrial uses including water, steam, fuels, oils, gases, and chemicals. Manufactured from high-strength steel with a durable zinc-nickel coating, it ensures long-lasting resistance to wear and corrosion even under extreme conditions. Designed for working pressures up to 450 bar, depending on diameter, and backed by a 4:1 safety factor, it guarantees secure performance and operator confidence. The NBR sealing system provides dependable tightness, while the wide operating temperature range from -30°C to +100°C makes it suitable for diverse climates and industries. With flow rates specified at a 3 bar pressure drop, the Series 525 coupling plug combines efficiency, safety, and durability, making it the ideal choice for professionals who demand uncompromising quality and performance.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
CJ-H-105256234	CEJN 525 plug, 3/8" BSP thread, NBR seal, with valve and elimination.	-	350
CJ-H-105256235	CEJN 525 plug, 1/2" BSP thread, NBR seal, with valve and elimination.	-	300
CJ-H-105256237	CEJN 525 plug, 3/4" BSP thread, NBR seal, with valve and elimination.	-	280
CJ-H-105256239	CEJN 525 plug, 1" BSP thread, NBR seal, with valve and elimination.	-	250

The CEJN Series 525 quick coupling plug from the NORDIC RANGE is engineered to deliver maximum reliability in the most demanding environments. Equipped with a shut-off valve and eliminator, and featuring an internal BSP thread, this robust solution is tailored for hydraulic power applications with hydraulic oil, as well as a wide range of industrial uses including water, steam, fuels, oils, gases, and chemicals. Manufactured from high-strength steel with a durable zinc-nickel coating, it ensures long-lasting resistance to wear and corrosion even under extreme conditions. Designed for working pressures up to 450 bar, depending on diameter, and backed by a 4:1 safety factor, it guarantees secure performance and operator confidence. The NBR sealing system provides dependable tightness, while the wide operating temperature range from -30°C to +100°C makes it suitable for diverse climates and industries. With flow rates specified at a 3 bar pressure drop, the Series 525 coupling plug combines efficiency, safety, and durability, making it the ideal choice for professionals who demand uncompromising quality and performance.
