Can the CEL hydraulic fitting ZMZ111, light series, carbon steel, Zn-Ni coated be used with different sleeve types for varied hose materials and pressures?

Yes — the CEL hydraulic fitting ZMZ111, light series, carbon steel, Zn-Ni coated can be used with different sleeve types to accommodate varied hose materials and pressure ratings. It is specifically designed for crimping with compatible sleeves tailored to specific hose constructions, which allows selection of sleeves that match hose inner diameter, reinforcement type and the required working pressure. The fitting’s classic hydraulic tail and external metric thread with 60° cone (CEL) sealing ensure a secure, leak-free joint when the correct sleeve and crimping parameters are applied. Key points to ensure compatibility and safety: - Use sleeves specified by the hose manufacturer or by an approved compatibility chart for ZMZ111 to match hose material and reinforcement. - Verify sleeve dimensions and crimp specifications (die set, crimp diameter, and swaging force) for the hose type and required working pressure. - Confirm that the hose–sleeve–fitting assembly meets the system’s maximum working pressure and applicable safety factors. - Maintain recommended surface preparation and assembly procedures; the Zn‑Ni coating (6–10 µm) on the fitting provides corrosion resistance but does not change crimping requirements. When properly paired with the correct sleeve and crimping process, CEL hydraulic fitting ZMZ111, light series, carbon steel, Zn-Ni coated delivers reliable, durable connections across varied hose materials and pressures.

CEL hydraulic fitting ZMZ111, light series, carbon steel, Zn-Ni coated

Q: Is the CEL hydraulic fitting ZMZ111, light series, carbon steel, Zn-Ni coated compatible with standard metric 60° cone hose assemblies and crimp sleeves?

Yes. The CEL hydraulic fitting ZMZ111, light series, carbon steel, Zn-Ni coated is compatible with standard metric 60° cone hose assemblies and crimp sleeves. It features an external metric thread with a 60° cone (CEL) sealing system and is specifically designed for crimping with compatible sleeves matched to the hose type, providing secure, leak-free connections and reliable crimped assemblies.

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	6

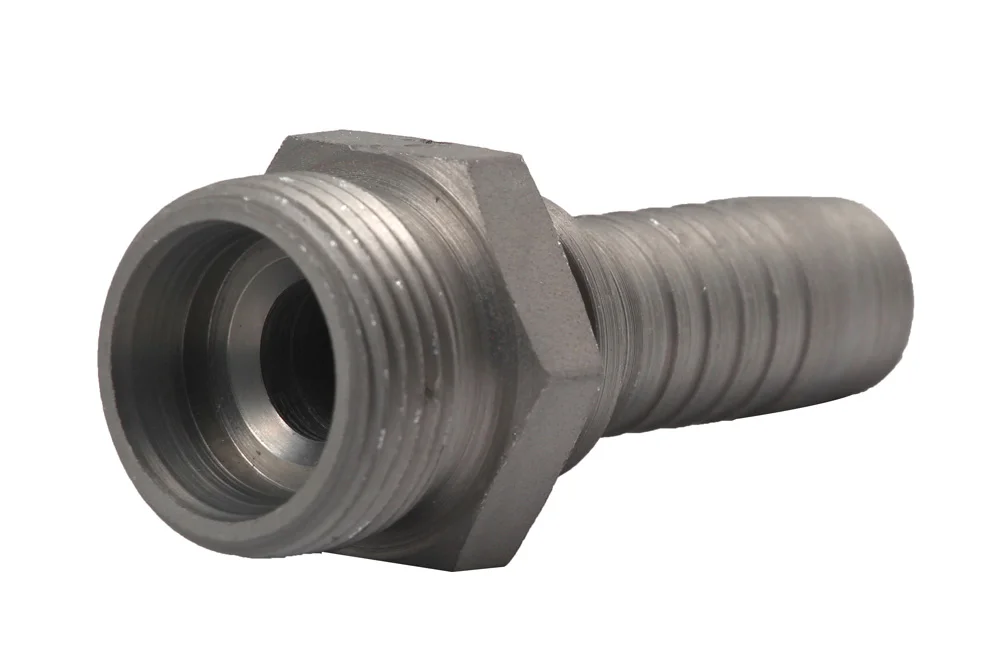

The standard hydraulic end type Z with a classic hydraulic tail for hose connection is engineered for reliable performance in demanding hydraulic and industrial applications. Featuring an external metric thread with a 60° cone (CEL) sealing system, this lightweight series fitting ensures secure and leak-free connections. Designed for crimping with compatible sleeves tailored to specific hose types, it guarantees durability and precision in assembly. Manufactured from high-quality carbon steel and enhanced with a zinc-nickel coating of 6–10 µm, the fitting offers exceptional protection against wear and corrosion, achieving resistance of up to 720 hours in salt spray testing. This advanced surface treatment not only extends service life but also ensures consistent performance in harsh environments. Ideal for industries requiring robust and long-lasting hydraulic solutions, the fitting combines strength, reliability, and ease of installation, making it a trusted choice for professionals who value efficiency and safety in their hydraulic systems.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
TI-ZMZ111-12-03-CN	End. GZ M12x1.5, hose 3/16", 24°, light, Zn-Ni	5	-
TI-ZMZ111-12-04-CN	End. GZ M12x1.5, hose 1/4", 24°, light, Zn-Ni	6	-
TI-ZMZ111-14-04-CN	End. GZ M14x1.5, hose 1/4", 24°, light, Zn-Ni	6	-
TI-ZMZ111-16-04-CN	End. GZ M16x1.5, hose 1/4", 24°, light, Zn-Ni	6	-
TI-ZMZ111-16-05-CN	End. GZ M16x1.5, hose 5/16", 24°, light, Zn-Ni	8	-
TI-ZMZ111-16-06-CN	End. GZ M16x1.5, hose 3/8", 24°, light, Zn-Ni	10	-
TI-ZMZ111-18-04-CN	End. GZ M18x1.5, hose 1/4", 24°, light, Zn-Ni	6	-
TI-ZMZ111-18-05-CN	End. GZ M18x1.5, hose 5/16", 24°, light, Zn-Ni	8	-
TI-ZMZ111-18-06-CN	End. GZ M18x1.5, hose 3/8", 24°, light, Zn-Ni	10	-
TI-ZMZ111-22-06-CN	End. GZ M22x1.5, hose 3/8", 24°, light, Zn-Ni	10	-
TI-ZMZ111-22-08-CN	End. GZ M22x1.5, hose 1/2", 24°, light, Zn-Ni	12	-
TI-ZMZ111-26-08-CN	End. GZ M26x1.5, hose 1/2", 24°, light, Zn-Ni	12	-
TI-ZMZ111-26-10-CN	End. GZ M26x1.5, hose 5/8", 24°, light, Zn-Ni	16	-
TI-ZMZ111-30-12-CN	End. GZ M30x2, hose 3/4", 24°, light, Zn-Ni	20	-
TI-ZMZ111-36-16-CN	End. GZ M36x2, hose 1", 24°, light, Zn-Ni	25	-
TI-ZMZ111-45-20-CN	End. GZ M45x2, hose 1.1/4", 24°, light, Zn-Ni	32	-
TI-ZMZ111-52-24-CN	End. GZ M52x2, hose 1.1/2", 24°, light, Zn-Ni	38	-

The standard hydraulic end type Z with a classic hydraulic tail for hose connection is engineered for reliable performance in demanding hydraulic and industrial applications. Featuring an external metric thread with a 60° cone (CEL) sealing system, this lightweight series fitting ensures secure and leak-free connections. Designed for crimping with compatible sleeves tailored to specific hose types, it guarantees durability and precision in assembly. Manufactured from high-quality carbon steel and enhanced with a zinc-nickel coating of 6–10 µm, the fitting offers exceptional protection against wear and corrosion, achieving resistance of up to 720 hours in salt spray testing. This advanced surface treatment not only extends service life but also ensures consistent performance in harsh environments. Ideal for industries requiring robust and long-lasting hydraulic solutions, the fitting combines strength, reliability, and ease of installation, making it a trusted choice for professionals who value efficiency and safety in their hydraulic systems.
