Is CHEMFLUOR TH Teflon Hose for Hydraulic, Pneumatic & Gas Applications suitable for use with flammable gases at high temperatures?

CHEMFLUOR TH Teflon Hose for Hydraulic, Pneumatic & Gas Applications can be suitable for use with flammable gases at elevated temperatures, but with important caveats. Its conductive PTFE inner layer removes electrostatic charge buildup — a key safety feature for flammable gases. The hose’s rated temperature range (−50°C to +200°C) and high working pressure (345 bar) with verified burst strengths (1100 bar at 20°C; 820 bar at 200°C) indicate it maintains mechanical integrity at high temperatures. However, safe use with flammable gases depends on the specific gas, its autoignition temperature, application conditions (pressure, temperature excursions, ventilation), and applicable standards/regulations. Ensure: - The gas compatibility with PTFE and stainless braid (check chemical compatibility for your specific gas). - The operating temperature stays below the gas’s safe limits and the hose’s +200°C maximum. - Proper grounding/earthing of the conductive hose and fittings to ensure electrostatic dissipation. - Use of compatible, certified end fittings and installation per manufacturer guidelines. - Compliance with relevant industry standards and local codes for flammable gas service. Recommendation: consult the hose manufacturer’s technical data sheet and certify application-specific suitability with the manufacturer or a qualified engineer before using CHEMFLUOR TH with flammable gases at high temperatures.

Can CHEMFLUOR TH Teflon Hose for Hydraulic, Pneumatic & Gas Applications be used with corrosive chemical vapors at elevated temperatures?

CHEMFLUOR TH Teflon Hose for Hydraulic, Pneumatic & Gas Applications is constructed with a black conductive PTFE inner layer and AISI 304 stainless steel braid, with an operating range of -50°C to +200°C. These features provide excellent chemical inertness, electrical conductivity to prevent static build-up, high mechanical strength and proven performance at elevated temperatures. However, suitability for corrosive chemical vapors at elevated temperatures depends on the specific vapors and their concentrations. PTFE offers broad resistance to most chemicals and vapors, but AISI 304 stainless steel can be attacked by highly corrosive species (e.g., concentrated chlorides, certain halogenated acids, and some molten salts) especially at high temperature, and some organo-fluorinated reagents or aggressive oxidizers may present risks. Also consider permeation and long-term degradation under elevated temperatures. Recommendation: Verify chemical compatibility for the exact vapor composition and temperature with the manufacturer or a materials-compatibility chart. For highly corrosive vapors or marginal cases, consider hoses with higher-grade braid (e.g., AISI 316/316L), additional external protection, or a tested containment solution.

CHEMFLUOR TH Teflon Hose for Hydraulic, Pneumatic & Gas Applications

All products, PTFE hoses/

Additional information

Material	PTFE – teflon and similar
Maximum operating temperature [°C]	200
Minimum operating temperature [°C]	-50
Vacuum resistance	no
Standard length [m]	10.5, 12

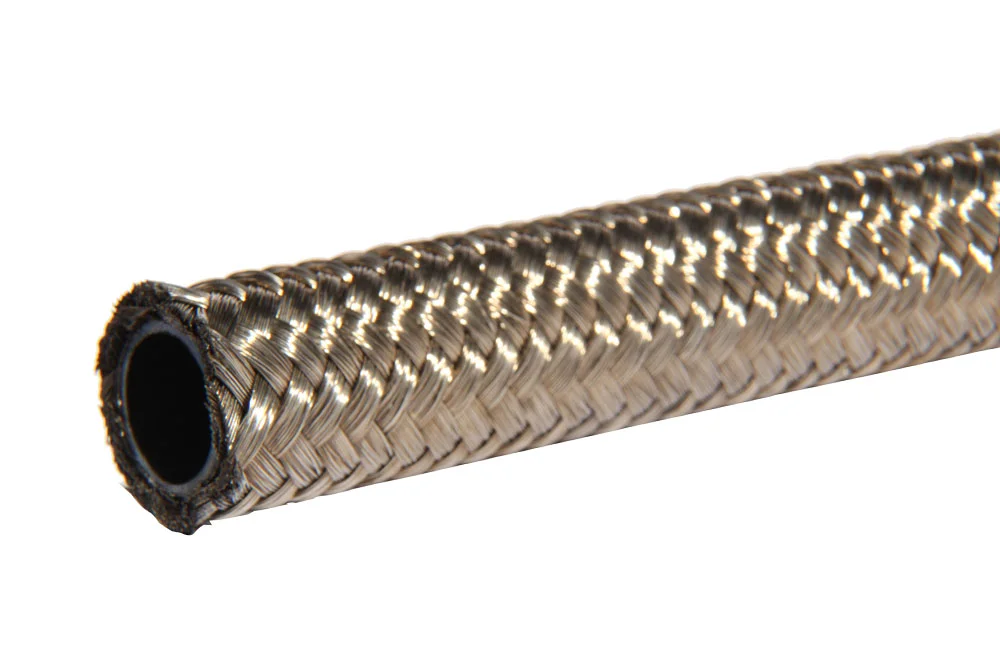

CHEMFLUOR TH hose is a high-performance solution engineered for demanding hydraulic, pneumatic, and gas applications where reliability and safety are crucial. Its inner layer, crafted from black conductive PTFE, effectively eliminates the risk of electrostatic charge buildup, ensuring stable operation even in sensitive environments. Reinforced with a durable AISI 304 stainless steel braid, the hose combines exceptional flexibility with outstanding mechanical strength, making it ideal for installations exposed to extreme working conditions. Designed to operate within a wide temperature range from -50°C to +200°C, it guarantees consistent performance in both cryogenic and high-heat environments. With a working pressure of 345 bar and impressive burst resistance reaching 1100 bar at 20°C and 820 bar at 200°C, CHEMFLUOR TH delivers maximum safety margins and long-lasting durability. This advanced hose is the perfect choice for industries requiring uncompromising quality, superior resistance, and reliable performance under pressure.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
VE-1704TH000	CHEMFLUOR hose TH 5.6x9.5 mm	6	345	In stock	Enquiry
VE-1706TH000	CHEMFLUOR hose TH 7.8x12 mm	8	345	In stock	Enquiry
VE-1708TH000	CHEMFLUOR hose TH 10.2x15.2 mm	10	345	In stock	Enquiry
VE-1710TH000	CHEMFLUOR hose TH 12.6x18 mm	12	345	In stock	Enquiry
VE-1712TH000	CHEMFLUOR hose TH 15.7x24.6 mm	16	345	In stock	Enquiry
VE-1716TH000	CHEMFLUOR hose 22x31.8 mm	22	345	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

CHEMFLUOR TH hose is a high-performance solution engineered for demanding hydraulic, pneumatic, and gas applications where reliability and safety are crucial. Its inner layer, crafted from black conductive PTFE, effectively eliminates the risk of electrostatic charge buildup, ensuring stable operation even in sensitive environments. Reinforced with a durable AISI 304 stainless steel braid, the hose combines exceptional flexibility with outstanding mechanical strength, making it ideal for installations exposed to extreme working conditions. Designed to operate within a wide temperature range from -50°C to +200°C, it guarantees consistent performance in both cryogenic and high-heat environments. With a working pressure of 345 bar and impressive burst resistance reaching 1100 bar at 20°C and 820 bar at 200°C, CHEMFLUOR TH delivers maximum safety margins and long-lasting durability. This advanced hose is the perfect choice for industries requiring uncompromising quality, superior resistance, and reliable performance under pressure.

Additional information

Material	PTFE – teflon and similar
Maximum operating temperature [°C]	200
Minimum operating temperature [°C]	-50
Vacuum resistance	no
Standard length [m]	10.5, 12
