Can Clamp DIN 3015 Standard, Polyamide, Type 100 be welded directly to metal structures or should I use bolts/rails for marine applications?

Clamp DIN 3015 Standard, Polyamide, Type 100 Format: Yes — the carbon steel base of the Type 100 clamp can be welded directly to metal structures, making it a valid option for marine applications. The product description explicitly states the base can be welded, and it also offers alternative mounting methods (bolts or rail systems) if welding is undesirable or impractical. For marine use consider: - Corrosion protection: welded joints and base should be protected or treated to resist seawater corrosion (coatings, stainless options, or sacrificial anodes). - Thermal and mechanical loads: ensure welding does not degrade the polyamide or compromise clamp alignment; maintain appropriate distances/insulation if needed. - Vibration and maintenance access: bolted or rail-mounted systems can simplify replacement and reduce stress transfer in high-vibration areas. If in doubt about material choices, coatings, or the best mounting method for a specific vessel or environment, consult TUBES INTERNATIONAL® for optimal configuration and component selection.

Is Clamp DIN 3015 Standard, Polyamide, Type 100 suitable for high-temperature marine engine spaces up to +180°C without additional thermal protection?

Clamp DIN 3015 Standard, Polyamide, Type 100 Format is rated for an operating temperature range up to +180°C. However, suitability for high-temperature marine engine spaces up to +180°C without additional thermal protection depends on several practical factors: - Material limit: Polyamide is specified up to +180°C; continuous exposure near the upper limit can reduce mechanical properties and service life compared with lower-temperature use. - Exposure type: Intermittent short peaks at or slightly above +180°C may be tolerated; continuous ambient temperatures at +180°C plus radiant heat from nearby engines/exhausts increase risk of softening, creep or accelerated ageing. - Marine environment: Salt, oil, vibration and mechanical loads typical in engine rooms can compound thermal effects; polyamide can be more vulnerable under combined stressors. - Safety margin: For critical pipe supports in engine spaces, industry practice often prefers metallic clamps or additional thermal shielding when temperatures approach material limits to ensure long-term reliability and safety. Recommendation: If actual exposure is reliably below +180°C with limited peaks, careful selection and monitoring might allow use without extra protection. For continuous or uncertain high-heat exposure in marine engine spaces, provide thermal protection or choose metal clamps. Consult TUBES INTERNATIONAL® or the project engineer for a site-specific assessment and long-term suitability.

A clamp DIN 3015 standard, polyamide, type 100

All products, Clamps for hydraulic pipes/

Additional information

Material	P – material (plastic)

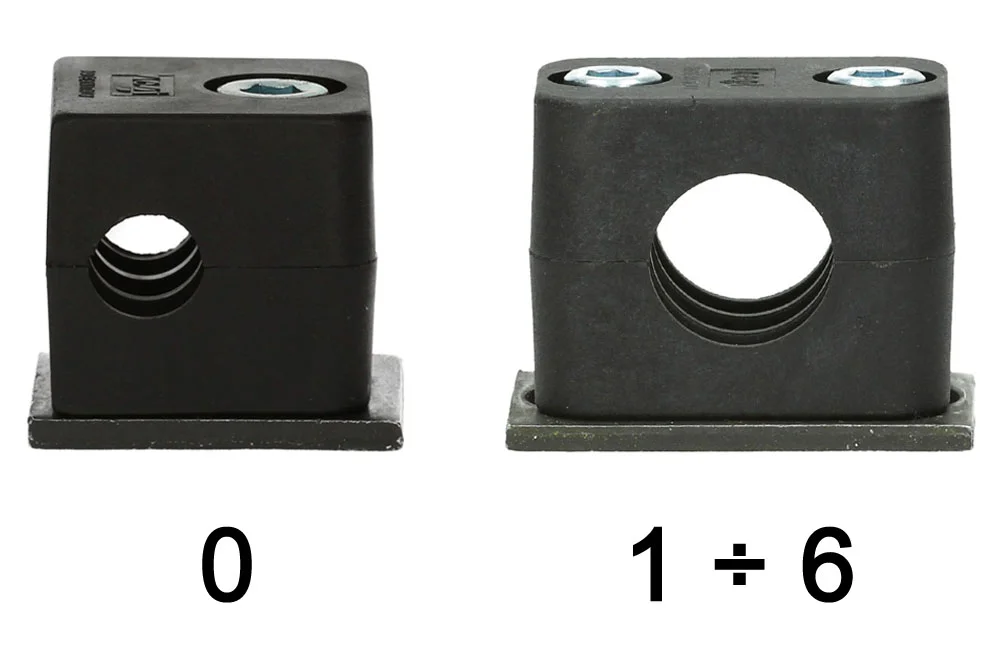

A clamp DIN 3015 standard type 100 (without plate upper) Intended for fast, easy, durable and aesthetic fastening pipes, cables and hoses in various branches industry, in installations above-ground and marine. made in accordance with the standard DIN 3015. assembly clamp for the structure performed is using welding base clamp (exists possibility screwing or mounting on a rail). standard A clamp has profiled (grooved) surface hole for a pipe. Dla group dimension 0 occurs one bolt with an Allen head, for group dimension 1 ÷ 6 available two screws with an Allen head. besides standard element metal can order: plates extension, rail and screws for mounting sets clamps. selection element should consulted with TUBES INTERNATIONAL®. Material clamp: self-extinguishing polyamide. Material bolts: steel galvanized. Material base: steel carbon. Operating temperature: od -40°C up to +180°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TC-PA100-006	Clamp DIN3015 standard PA for a 6 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-008	Clamp DIN3015 standard PA for a 8 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-010	Clamp DIN3015 standard PA for a 10 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-012	Clamp DIN3015 standard PA for a 12 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-106	Clamp DIN3015 standard PA for a 6 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-106,4	Clamp DIN3015 standard PA for a 6.4 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-108	Clamp DIN3015 standard PA for a 8 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-109,5	Clamp DIN3015 standard PA for a 9.5 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-110	Clamp DIN3015 standard PA for a 10 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-112	Clamp DIN3015 standard PA for a 12 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-212,7	Clamp DIN3015 standard PA for a 12.7 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-213,5	Clamp DIN3015 standard PA for a 13.5 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-214	Clamp DIN3015 standard PA for a 14 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-215	Clamp DIN3015 standard PA for a 15 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-216	Clamp DIN3015 standard PA for a 16 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-217,2	Clamp DIN3015 standard PA for a 17.2 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-218	Clamp DIN3015 standard PA for a 18 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-219	Clamp DIN3015 standard PA for a 19 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-319	Clamp DIN3015 standard PA for a 19 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-320	Clamp DIN3015 standard PA for a 20 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-321,3	Clamp DIN3015 standard PA for a 21.3 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-322	Clamp DIN3015 standard PA for a 22 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-325	Clamp DIN3015 standard PA for a 25 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-325,4	Clamp DIN3015 standard PA for a 25.4 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-426,9	Clamp DIN3015 standard PA for a 26.9 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-428	Clamp DIN3015 standard PA for a 28 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-430	Clamp DIN3015 standard PA for a 30 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-432	Clamp DIN3015 standard PA for a 32 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-532	Clamp DIN3015 standard PA for a 32 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-533,7	Clamp DIN3015 standard PA for a 33.7 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-535	Clamp DIN3015 standard PA for a 35 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-538	Clamp DIN3015 standard PA for a 38 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-540	Clamp DIN3015 standard PA for a 40 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-542	Clamp DIN3015 standard PA for a 42 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-542,4	Clamp DIN3015 standard PA for a 42.4 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-545	Clamp DIN3015 standard PA for a 45 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-644,5	Clamp DIN3015 standard PA for a 44.5 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-648,3	Clamp DIN3015 standard PA for a 48.3 mm pipe, without a top plate	-	-	In stock	Enquiry
TC-PA100-650,8	Clamp DIN3015 standard PA for a 50.8 mm pipe, without a top plate	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A clamp DIN 3015 standard type 100 (without plate upper) Intended for fast, easy, durable and aesthetic fastening pipes, cables and hoses in various branches industry, in installations above-ground and marine. made in accordance with the standard DIN 3015. assembly clamp for the structure performed is using welding base clamp (exists possibility screwing or mounting on a rail). standard A clamp has profiled (grooved) surface hole for a pipe. Dla group dimension 0 occurs one bolt with an Allen head, for group dimension 1 ÷ 6 available two screws with an Allen head. besides standard element metal can order: plates extension, rail and screws for mounting sets clamps. selection element should consulted with TUBES INTERNATIONAL®. Material clamp: self-extinguishing polyamide. Material bolts: steel galvanized. Material base: steel carbon. Operating temperature: od -40°C up to +180°C.
