What maximum pipe diameter can the Inset DIN 3015 Heavy Aluminum Insert, Type 201 accommodate?

The Inset DIN 3015 Heavy Aluminum Insert, Type 201 description does not specify a maximum pipe diameter. The text details material, profiled grooved surface, temperature rating (up to +350°C) and suitability for heavy-duty, high-temperature applications, but gives no numeric maximum pipe diameter. For an exact maximum diameter, please consult the manufacturer’s technical datasheet or contact the supplier.

Is the Inset DIN 3015 Heavy Aluminum Insert, Type 201 suitable for use in corrosive or chemical exposure environments?

Inset DIN 3015 Heavy Aluminum Insert, Type 201 is made of high-quality aluminum and offers excellent wear resistance, lightweight strength, and an extended temperature range (up to +350°C). These properties make it suitable for high-temperature and mechanically demanding environments, including many chemical- and energy-industry applications. However, plain aluminum has limited resistance to highly corrosive chemicals (strong acids, alkalis, chlorides, and certain solvents) and to environments with prolonged wet salt exposure. The provided description does not mention any special corrosion-resistant coatings, anodizing, or use of corrosion-resistant aluminum alloys. Therefore, for aggressive chemical exposure or marine/salt-spray environments, you should verify the exact alloy and any surface treatment or choose a corrosion-resistant alternative (e.g., stainless steel or specially coated aluminum). For general chemical-processing applications with moderate exposure, it may be acceptable, but confirm compatibility with the specific chemicals and concentrations in your application before use.

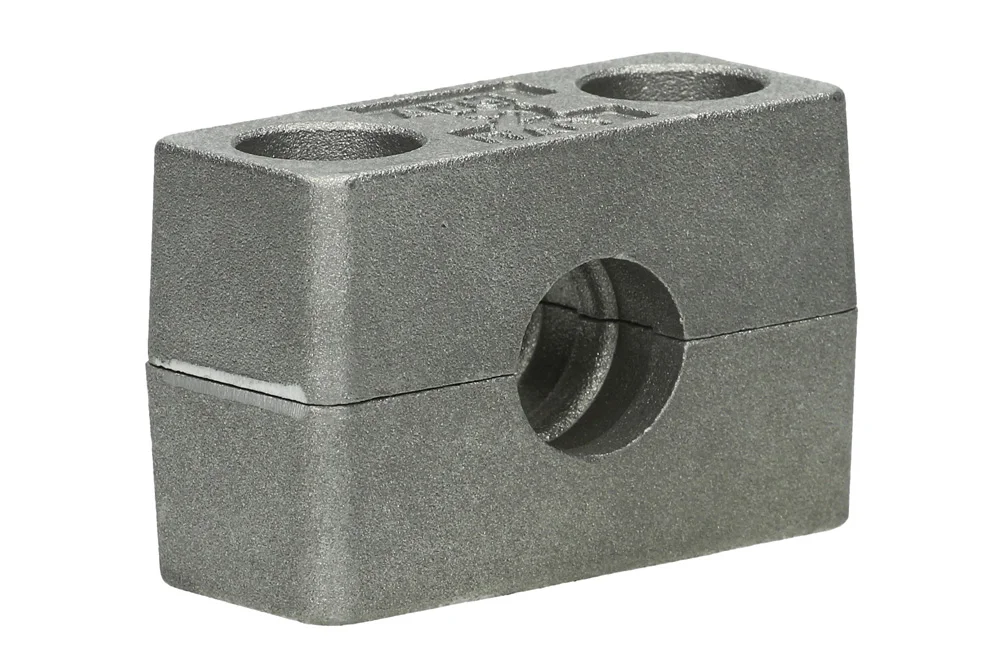

Inset DIN 3015 Heavy Aluminum Insert, Type 201

All products, Clamps for hydraulic pipes/

Additional information

Material	AL – aluminum
Standard length [m]	30

The two-part insert of the DIN 3015 type 201 clamp is manufactured in accordance with the strict requirements of the DIN 3015 standard, ensuring reliability and precision in demanding applications. Designed with a profiled, grooved surface, it provides a secure and stable fit for pipes, effectively minimizing vibration and enhancing durability of the entire installation. Made from high-quality aluminum, the insert combines strength with lightweight performance, offering excellent resistance to wear and long service life even under intensive use. With an impressive operating temperature range of up to +350°C, it is perfectly suited for high-temperature environments, making it an ideal choice for industries such as energy, chemical processing, hydraulics, and heavy machinery. This robust solution guarantees consistent performance, safety, and efficiency, supporting smooth operation of critical systems while reducing maintenance needs and downtime.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
TC-AL201-106,4X	DIN3015 heavy AL clamp for 6.4 mm pipe	-	-
TC-AL201-106X	DIN3015 heavy AL insert for 6 mm pipe	-	-
TC-AL201-108X	DIN3015 heavy AL insert for 8 mm pipe	-	-
TC-AL201-110X	DIN3015 heavy AL insert for 10 mm pipe	-	-
TC-AL201-112,7X	DIN3015 heavy AL clamp for 12.7 mm pipe	-	-
TC-AL201-112X	DIN3015 heavy AL insert for 12 mm pipe	-	-
TC-AL201-114X	DIN3015 heavy AL insert for 14 mm pipe	-	-
TC-AL201-115X	DIN3015 heavy AL insert for 15 mm pipe	-	-
TC-AL201-116X	DIN3015 heavy AL insert for 16 mm pipe	-	-
TC-AL201-117,2X	DIN3015 heavy AL insert for 17.2 mm pipe	-	-
TC-AL201-118X	DIN3015 heavy AL insert for 18 mm pipe	-	-
TC-AL201-219X	DIN3015 heavy AL insert for 19 mm pipe	-	-
TC-AL201-220X	DIN3015 heavy AL insert for 20 mm pipe	-	-
TC-AL201-221,3X	DIN3015 heavy AL insert for 21.3 mm pipe	-	-
TC-AL201-222X	DIN3015 heavy AL insert for 22 mm pipe	-	-
TC-AL201-225X	DIN3015 heavy AL insert for 25 mm pipe	-	-
TC-AL201-226,9X	DIN3015 heavy AL insert for 26.9 mm pipe	-	-
TC-AL201-228X	DIN3015 heavy AL insert for 28 mm pipe	-	-
TC-AL201-230X	DIN3015 heavy-duty AL insert for 30 mm pipe	-	-
TC-AL201-330X	DIN3015 heavy AL insert for 30 mm pipe	-	-
TC-AL201-332X	DIN3015 heavy AL insert for 32 mm pipe	-	-
TC-AL201-333,7X	DIN3015 heavy AL insert for 33.7 mm pipe	-	-
TC-AL201-335X	DIN3015 heavy AL insert for 35 mm pipe	-	-
TC-AL201-338X	DIN3015 heavy AL insert for 38 mm pipe	-	-
TC-AL201-340X	DIN3015 heavy AL insert for 40 mm pipe	-	-
TC-AL201-342,4X	DIN3015 heavy AL insert for 42.4 mm pipe	-	-
TC-AL201-342X	DIN3015 heavy AL insert for 42 mm pipe	-	-
TC-AL201-438X	DIN3015 heavy AL insert for 38 mm pipe	-	-
TC-AL201-442,4X	DIN3015 heavy AL insert for 42.4 mm pipe	-	-
TC-AL201-444,5X	DIN3015 heavy AL insert for 44.5 mm pipe	-	-
TC-AL201-448,3X	DIN3015 heavy AL insert for 48.3 mm pipe	-	-
TC-AL201-450X	DIN3015 heavy AL insert for 50 mm pipe	-	-
TC-AL201-455X	DIN3015 heavy AL insert for 55 mm pipe	-	-
TC-AL201-457X	DIN3015 heavy AL insert for 57 mm pipe	-	-
TC-AL201-460,3X	DIN3015 heavy AL insert for 60.3 mm pipe	-	-
TC-AL201-463,5X	DIN3015 heavy AL insert for 63.5 mm pipe	-	-
TC-AL201-465X	DIN3015 heavy AL insert for 65 mm pipe	-	-
TC-AL201-470X	DIN3015 heavy AL insert for 70 mm pipe	-	-
TC-AL201-565X	DIN3015 heavy AL insert for 65 mm pipe	-	-
TC-AL201-570X	DIN3015 heavy AL insert for 70 mm pipe	-	-
TC-AL201-575X	DIN3015 heavy AL insert for 75 mm pipe	-	-
TC-AL201-576,1X	DIN3015 heavy AL insert for 76.1 mm pipe	-	-
TC-AL201-580X	DIN3015 heavy AL insert for 80 mm pipe	-	-
TC-AL201-582,5X	DIN3015 heavy AL insert for 82.5 mm pipe	-	-
TC-AL201-588,9X	DIN3015 heavy AL insert for 88.9 mm pipe	-	-
TC-AL201-6114,3X	DIN3015 heavy AL insert for pipe 114.3 mm	-	-

The two-part insert of the DIN 3015 type 201 clamp is manufactured in accordance with the strict requirements of the DIN 3015 standard, ensuring reliability and precision in demanding applications. Designed with a profiled, grooved surface, it provides a secure and stable fit for pipes, effectively minimizing vibration and enhancing durability of the entire installation. Made from high-quality aluminum, the insert combines strength with lightweight performance, offering excellent resistance to wear and long service life even under intensive use. With an impressive operating temperature range of up to +350°C, it is perfectly suited for high-temperature environments, making it an ideal choice for industries such as energy, chemical processing, hydraulics, and heavy machinery. This robust solution guarantees consistent performance, safety, and efficiency, supporting smooth operation of critical systems while reducing maintenance needs and downtime.
