Can Clamp DIN 3015 Standard, Polypropylene, Type 100 be used in outdoor marine environments at -30°C to +90°C without corrosion issues?

Clamp DIN 3015 Standard, Polypropylene, Type 100 can be used in outdoor marine environments at -30°C to +90°C without corrosion issues? Yes, with conditions. The polypropylene clamp body itself is corrosion‑resistant and rated for the stated temperature range (-30°C to +90°C), so it will withstand outdoor marine temperatures and resist chemical attack from moisture and salt. However, the assembly includes galvanized steel screws and a carbon steel base, which are susceptible to corrosion in marine (saltwater) environments unless adequately protected. For long‑term, corrosion‑free performance you should either: - Specify stainless steel (e.g., A4/316) fasteners and a stainless or suitably coated base, or - Apply proven marine‑grade coatings/corrosion protection to the existing steel components and maintain regular inspections. If those precautions are taken, the product is suitable for outdoor marine use across the stated temperature range.

Is the Clamp DIN 3015 Standard, Polypropylene, Type 100 compatible with bolted or rail-mounted installations instead of welding for easy maintenance?

Clamp DIN 3015 Standard, Polypropylene, Type 100 is compatible with bolted or rail-mounted installations as alternatives to welding for easier maintenance. Although it is designed for secure attachment by welding the clamp base, the product description explicitly states that bolting or rail mounting options are available. Additionally, accessories such as extended plates, rails, and mounting screws can be supplied to facilitate these non-weld installations, and TUBES INTERNATIONAL® offers expert support to select the proper components. Materials (polypropylene body, galvanized steel screws, carbon steel base) and the specified screw configuration (one hexagon socket screw for group 0; two for groups 1–6) support reliable bolted or rail-mounted fixing within the –30°C to +90°C operating range.

Clamp DIN 3015 Standard, Polypropylene, Type 100

All products, Clamps for hydraulic pipes/

Additional information

Material	P – material (plastic)

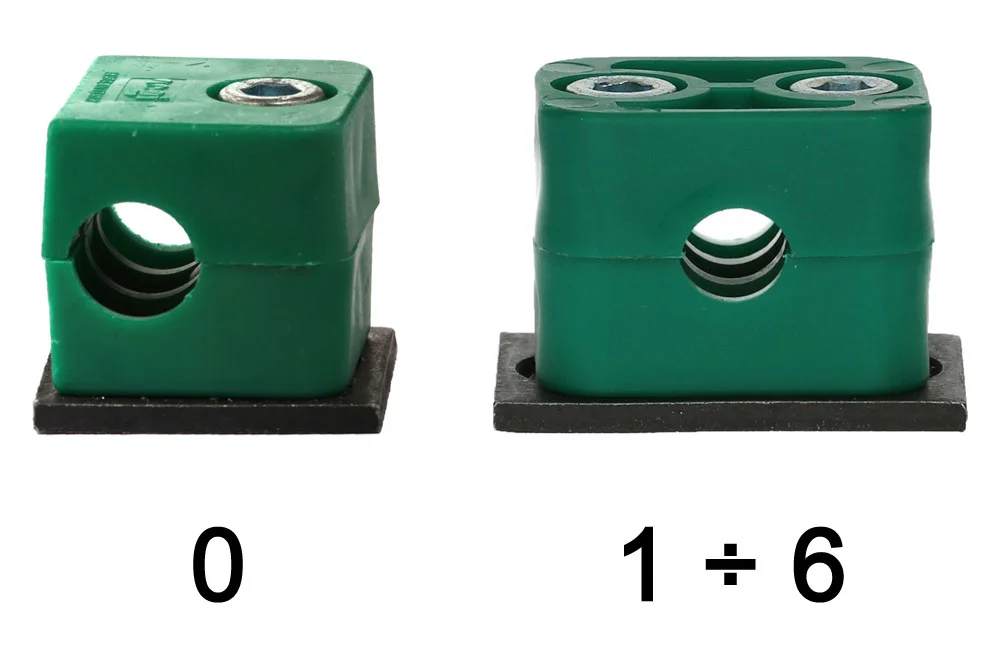

The DIN 3015 standard clamp type 100 (without top plate) ensures fast, reliable, and visually neat installation of pipes and hoses across diverse industrial applications, including both land-based and marine systems. Produced in compliance with DIN 3015, it is designed for secure attachment by welding the clamp base to the structure, with alternative options for bolting or rail mounting available. The clamp’s profiled interior provides a stable grip on pipes, while its construction varies by size group: one hexagon socket screw for group 0 and two for groups 1 through 6. To enhance flexibility, additional accessories such as extended plates, rails, and mounting screws can be supplied, with expert selection support from TUBES INTERNATIONAL®. Made from durable green polypropylene with galvanized steel screws and a carbon steel base, the clamp guarantees long-lasting performance in demanding environments. Its operating temperature range from -30°C to +90°C makes it a versatile solution for industries seeking efficiency, durability, and professional installation quality.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TC-PP100-006	DIN3015 standard PP clamp for 6 mm pipe, without mounting hardware.	-	-	In stock	Enquiry
TC-PP100-008	DIN3015 standard PP clamp for 8 mm pipe, without mounting hardware.	-	-	In stock	Enquiry
TC-PP100-010	DIN3015 standard PP clamp for 10 mm pipe, without mounting hardware.	-	-	In stock	Enquiry
TC-PP100-012	DIN3015 standard PP clamp for 12 mm pipe, without mounting.	-	-	In stock	Enquiry
TC-PP100-106	DIN3015 standard PP clamp for 6 mm pipe, without mounting.	-	-	In stock	Enquiry
TC-PP100-106,4	DIN3015 standard PP clamp for 6.4 mm pipe, without mounting bracket.	-	-	In stock	Enquiry
TC-PP100-108	DIN3015 standard PP clamp for 8 mm pipe, without mounting hardware.	-	-	In stock	Enquiry
TC-PP100-109,5	DIN3015 standard PP clamp for 9.5 mm pipe, without mounting hardware.	-	-	In stock	Enquiry
TC-PP100-110	DIN3015 standard PP clamp for 10 mm pipe, without mounting.	-	-	In stock	Enquiry
TC-PP100-112	DIN3015 standard PP clamp for 12 mm pipe, without mounting bracket.	-	-	In stock	Enquiry
TC-PP100-212,7	DIN3015 standard PP clamp for 12.7 mm pipe, without mounting hardware.	-	-	In stock	Enquiry
TC-PP100-213,5	DIN3015 standard PP clamp for 13.5 mm pipe, without mounting accessories.	-	-	In stock	Enquiry
TC-PP100-214	DIN3015 standard PP clamp for 14 mm pipe, without mounting bracket.	-	-	In stock	Enquiry
TC-PP100-215	DIN3015 standard PP clamp for 15 mm pipe, without mounting accessories.	-	-	In stock	Enquiry
TC-PP100-216	DIN3015 standard PP clamp for 16 mm pipe, without mounting.	-	-	In stock	Enquiry
TC-PP100-217,2	DIN3015 standard PP clamp for 17.2 mm pipe, without p. g.	-	-	In stock	Enquiry
TC-PP100-218	DIN3015 standard PP clamp for 18 mm pipe, without mounting.	-	-	In stock	Enquiry
TC-PP100-219	DIN3015 standard PP clamp for 19 mm pipe, without mounting hardware.	-	-	In stock	Enquiry
TC-PP100-319	DIN3015 standard PP clamp for 19 mm pipe, without mounting hardware.	-	-	In stock	Enquiry
TC-PP100-320	DIN3015 standard PP clamp for 20 mm pipe, without mounting.	-	-	In stock	Enquiry
TC-PP100-321,3	DIN3015 standard PP clamp for 21.3 mm pipe, without mounting.	-	-	In stock	Enquiry
TC-PP100-322	DIN3015 standard PP clamp for 22 mm pipe, without mounting.	-	-	In stock	Enquiry
TC-PP100-325	DIN3015 standard PP clamp for 25 mm pipe, without mounting.	-	-	In stock	Enquiry
TC-PP100-325,4	DIN3015 standard PP clamp for 25.4 mm pipe, without mounting hardware.	-	-	In stock	Enquiry
TC-PP100-426,9	DIN3015 standard PP clamp for 26.9 mm pipe, without p. g.	-	-	In stock	Enquiry
TC-PP100-428	DIN3015 standard PP clamp for 28 mm pipe, without mounting.	-	-	In stock	Enquiry
TC-PP100-430	DIN3015 standard PP clamp for 30 mm pipe, without mounting.	-	-	In stock	Enquiry
TC-PP100-432	DIN3015 standard PP clamp for 32 mm pipe, without mounting bracket.	-	-	In stock	Enquiry
TC-PP100-532	DIN3015 standard PP clamp for 32 mm pipe, without mounting.	-	-	In stock	Enquiry
TC-PP100-533,7	DIN3015 standard PP clamp for 33.7 mm pipe, without p. g.	-	-	In stock	Enquiry
TC-PP100-535	DIN3015 standard PP clamp for 35 mm pipe, without mounting bracket.	-	-	In stock	Enquiry
TC-PP100-538	DIN3015 standard PP clamp for 38 mm pipe, without mounting.	-	-	In stock	Enquiry
TC-PP100-540	DIN3015 standard PP clamp for 40 mm pipe, without mounting.	-	-	In stock	Enquiry
TC-PP100-542	DIN3015 standard PP clamp for 42 mm pipe, without p. g.	-	-	In stock	Enquiry
TC-PP100-542,4	DIN3015 standard PP clamp for 42.4 mm pipe, without p. g.	-	-	In stock	Enquiry
TC-PP100-545	DIN3015 standard PP clamp for 45 mm pipe, without p. g.	-	-	In stock	Enquiry
TC-PP100-644,5	DIN3015 standard PP clamp for 44.5 mm pipe, without p. g.	-	-	In stock	Enquiry
TC-PP100-648,3	DIN3015 standard PP clamp for 48.3 mm pipe, without mounting accessories.	-	-	In stock	Enquiry
TC-PP100-650,8	DIN3015 standard PP clamp for 50.8 mm pipe, without mounting accessories.	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The DIN 3015 standard clamp type 100 (without top plate) ensures fast, reliable, and visually neat installation of pipes and hoses across diverse industrial applications, including both land-based and marine systems. Produced in compliance with DIN 3015, it is designed for secure attachment by welding the clamp base to the structure, with alternative options for bolting or rail mounting available. The clamp’s profiled interior provides a stable grip on pipes, while its construction varies by size group: one hexagon socket screw for group 0 and two for groups 1 through 6. To enhance flexibility, additional accessories such as extended plates, rails, and mounting screws can be supplied, with expert selection support from TUBES INTERNATIONAL®. Made from durable green polypropylene with galvanized steel screws and a carbon steel base, the clamp guarantees long-lasting performance in demanding environments. Its operating temperature range from -30°C to +90°C makes it a versatile solution for industries seeking efficiency, durability, and professional installation quality.
