CNC Woodworking Machine Extraction Hose P2CNC

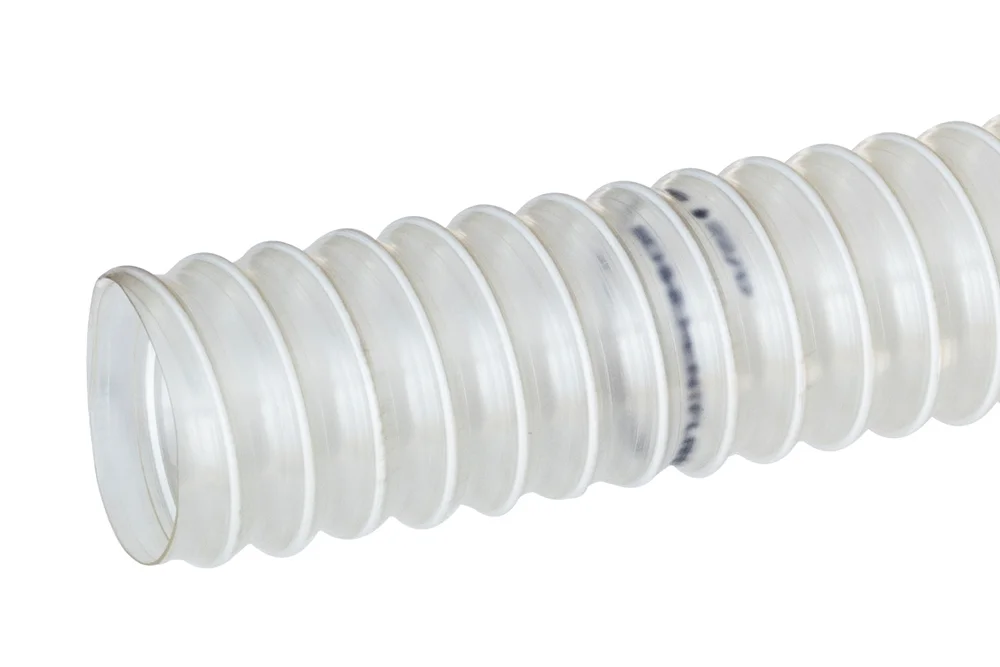

This high-performance hose is engineered for efficient extraction of dust, wood shavings, and chips in the woodworking and furniture industry, making it an ideal solution for CNC machining centers, vertical milling machines, and milling plotters processing both wood and plastics. Its robust construction features a thick steel spiral coated with white PVC, ensuring excellent corrosion resistance, strong adhesion to the hose wall, and outstanding pressure resistance. Despite its durability, the optimally designed wide spiral pitch guarantees exceptional flexibility, easy bending, and compressibility, which is particularly advantageous for dust and chip removal from fast-moving CNC router heads. Manufactured from transparent polyester-polyurethane, the hose is resistant to microbes, hydrolysis, oils, and gasoline, while remaining free from halogen compounds and plasticizers. It is flame-retardant in compliance with DIN 4102 class B1 and can be safely treated as electrically conductive after grounding the spiral, meeting German industrial recommendations BGI 739-2. Designed for secure installation with bridge clamps (right-handed), it is available in diameters from 80 to 600 mm on request. With an operating temperature range from -40°C to +100°C, this hose combines strength, safety, and flexibility, delivering reliable performance in demanding industrial environments.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
This high-performance hose is engineered for efficient extraction of dust, wood shavings, and chips in the woodworking and furniture industry, making it an ideal solution for CNC machining centers, vertical milling machines, and milling plotters processing both wood and plastics. Its robust construction features a thick steel spiral coated with white PVC, ensuring excellent corrosion resistance, strong adhesion to the hose wall, and outstanding pressure resistance. Despite its durability, the optimally designed wide spiral pitch guarantees exceptional flexibility, easy bending, and compressibility, which is particularly advantageous for dust and chip removal from fast-moving CNC router heads. Manufactured from transparent polyester-polyurethane, the hose is resistant to microbes, hydrolysis, oils, and gasoline, while remaining free from halogen compounds and plasticizers. It is flame-retardant in compliance with DIN 4102 class B1 and can be safely treated as electrically conductive after grounding the spiral, meeting German industrial recommendations BGI 739-2. Designed for secure installation with bridge clamps (right-handed), it is available in diameters from 80 to 600 mm on request. With an operating temperature range from -40°C to +100°C, this hose combines strength, safety, and flexibility, delivering reliable performance in demanding industrial environments.
Additional information
| Material | PU – polyurethane |
|---|---|
| Maximum operating temperature [°C] | 100 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | yes |
| Standard length [m] | 10, 2 |
| Reinforcement | steel spiral coated with PVC |
