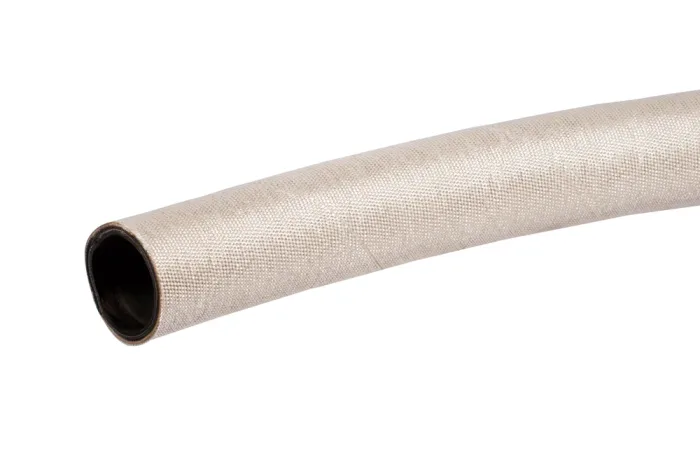

ESSEN LL® Cooling Water Suction & Discharge Hose

This highly durable suction and discharge hose is engineered for demanding cooling applications in foundries, smelters, and environments where hoses must perform reliably in close proximity to extreme heat sources. Its robust construction features a black SBR rubber inner layer, reinforced with a synthetic cord and steel spiral, ensuring excellent resistance to vacuum up to 0.9 bar and working pressures of 10 bar. The outer layer, made of EPDM rubber combined with a glass fiber covering, provides outstanding protection against thermal radiation, withstanding external temperatures up to +530°C. Designed to operate in a wide range from -40°C to +70°C internally, this hose guarantees safe and efficient cooling even under the harshest industrial conditions. Particularly recommended for water installations near metallurgical furnaces, it offers proven resistance to short-term splashes of molten metal, ensuring reliability and safety in critical processes. Available in standard lengths of 60 m or 120 m, it delivers flexibility, durability, and performance tailored to the most demanding cooling systems.

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]Enquiry
IV-ESSEN-LL-012Hose ESSEN LL 12x22.5 mm1210
IV-ESSEN-LL-019Hose ESSEN LL 19x30.5 mm2010
IV-ESSEN-LL-025Hose ESSEN LL 25x36.5 mm2510
IV-ESSEN-LL-032Hose ESSEN LL 32x43 mm3210
IV-ESSEN-LL-038Hose ESSEN LL 38x50.5 mm3810
IV-ESSEN-LL-051Hose ESSEN LL 51x63.5 mm5010
IV-ESSEN-LL-065Hose ESSEN LL 65x78.5 mm6510
IV-ESSEN-LL-076Hose ESSEN LL 76x91.5 mm7510
IV-ESSEN-LL-102Hose ESSEN LL 102x119.5 mm10010

This highly durable suction and discharge hose is engineered for demanding cooling applications in foundries, smelters, and environments where hoses must perform reliably in close proximity to extreme heat sources. Its robust construction features a black SBR rubber inner layer, reinforced with a synthetic cord and steel spiral, ensuring excellent resistance to vacuum up to 0.9 bar and working pressures of 10 bar. The outer layer, made of EPDM rubber combined with a glass fiber covering, provides outstanding protection against thermal radiation, withstanding external temperatures up to +530°C. Designed to operate in a wide range from -40°C to +70°C internally, this hose guarantees safe and efficient cooling even under the harshest industrial conditions. Particularly recommended for water installations near metallurgical furnaces, it offers proven resistance to short-term splashes of molten metal, ensuring reliability and safety in critical processes. Available in standard lengths of 60 m or 120 m, it delivers flexibility, durability, and performance tailored to the most demanding cooling systems.

Additional information

Material

SBR – styrene-butadiene rubber

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

60, 60 / 120

Reinforcement

steel spiral, synthetic cover

Additional information

Material

SBR – styrene-butadiene rubber

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

60, 60 / 120

Reinforcement

steel spiral, synthetic cover
