What cleaning procedures ensure the DIN 11851 Stainless Steel DWK Lug with Notched Tail and Under Nut maintains its Ra 0.8 µm bore finish and hygienic performance?

To maintain the Ra 0.8 µm bore finish and hygienic performance of the DIN 11851 Stainless Steel DWK Lug with Notched Tail and Under Nut Format, follow these cleaning procedures: - Pre-rinse: Flush the component with warm potable water to remove loose product residues immediately after use. - Detergent wash: Use a food-grade, alkaline or neutral detergent compatible with stainless steel; circulate or soak at recommended concentration and temperature to dissolve fats and proteins. - Mechanical action: Where possible, employ CIP (clean-in-place) circulation or gentle brushing for crevices around the notched tail and under nut to dislodge residues without scratching the Ra 0.8 µm bore. Use soft-bristle brushes or non-abrasive pads. - Rinse: Thoroughly rinse with potable water to remove detergent residues; final rinse with hot water improves drying and hygiene. - Sanitize: Apply an appropriate food-grade sanitizer/disinfectant (e.g., peracetic acid, hydrogen peroxide, or validated quaternary ammonium compound) compatible with gasket material and stainless steel; follow contact time and concentration per manufacturer guidelines. - Final rinse and dry: If required by sanitizer, perform a final rinse with sterile or potable water and allow complete drainage and drying to prevent microbial growth. - Inspect and protect finish: Regularly visually and tactilely inspect the bore for scratches, pitting or discoloration. Avoid abrasive cleaners, steel wool, chloride-based bleaches, and high-concentration halogens that can damage the 0.8 µm finish and promote corrosion. - Gasket care and reassembly: Clean and inspect gaskets and threads; replace any damaged gaskets. Reassemble using correct torque to maintain leak-tight, hygienic joints. - Documentation and validation: Maintain cleaning records and periodically validate cleaning efficacy (ATP, microbiological swabs or particle testing) to ensure the Ra 0.8 µm surface remains smooth and sanitary. Following these steps preserves the precision Ra 0.8 µm bore finish, prevents surface damage, and ensures the hygienic performance required for food and chemical processing.

How does the DIN 11851 Stainless Steel DWK Lug with Notched Tail and Under Nut perform under cyclic pressure and temperature changes in long-term sanitary processing?

The DIN 11851 Stainless Steel DWK Lug with Notched Tail and Under Nut Format performs reliably under cyclic pressure and temperature changes in long-term sanitary processing due to several design features: - Pressure cycling: The fitting is engineered for high mechanical strength and specifies maximum working pressures of 40 bar (DN10–DN40), 25 bar (DN50–DN100) and 16 bar (DN125–DN150). Within these limits the robust construction and precision-machined surfaces promote stable, leak-tight joints over repeated pressurization cycles, reducing fatigue risk when installed and maintained correctly. - Temperature cycling: Thermal performance depends primarily on the gasket material chosen. The metal parts retain structural integrity across typical sanitary process temperatures; gasket selection to match the process temperature range is essential to maintain sealing elasticity and avoid hardening or extrusion under repeated heating/cooling. - Hygiene and surface finish: Bore finish of Ra 0.8 µm minimizes crevice formation and microbial harborage, easing cleaning and preventing degradation at the seal interface during thermal cycling and CIP/SIP routines. - Durability and service life: Compliance with DIN 11851 standards, robust construction and the knurled tail for secure assembly contribute to long service life under cyclic loads, provided pressure and temperature remain within specified limits and gaskets are inspected/replaced per maintenance schedules. In summary: when operated within the specified pressure ratings and with gasket materials matched to process temperatures, the DIN 11851 Stainless Steel DWK Lug with Notched Tail and Under Nut Format delivers durable, leak-tight performance under repeated pressure and temperature cycles common in sanitary processing.

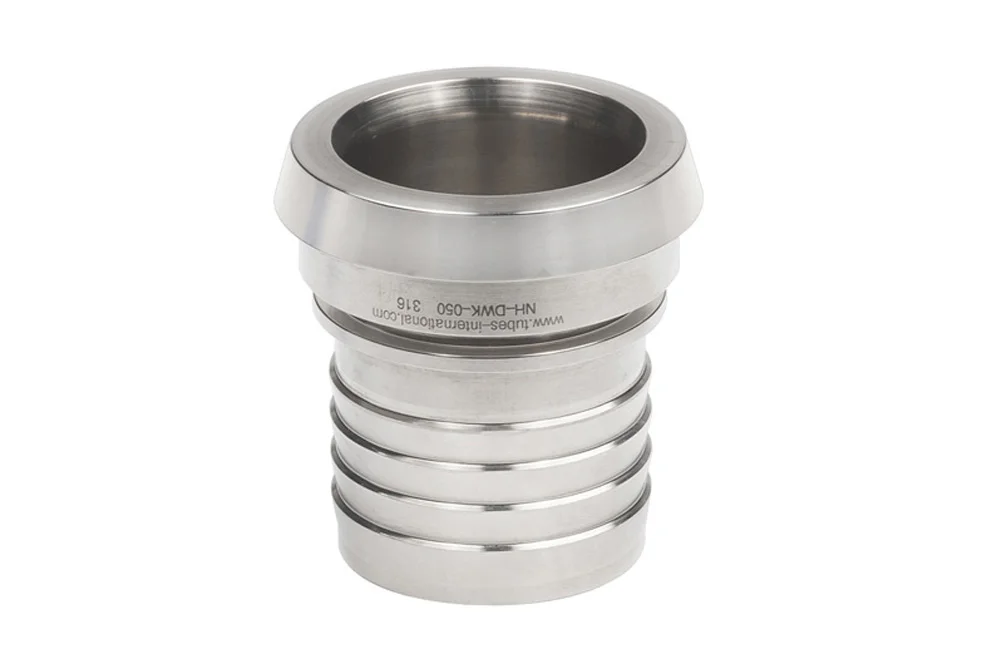

DIN 11851 Stainless Steel DWK Lug with Notched Tail and Under Nut

All products, Hygienic stainless steel couplings/

Additional information

Material	SS – stainless steel

The DIN 11851 end for nut with a knurled tail is a high-quality stainless steel component designed to meet the demanding requirements of the food and chemical industries. Featuring a precision finish with Ra 0.8 µm in the bore, it ensures optimal hygiene and easy cleaning, making it ideal for applications where safety and cleanliness are paramount. Engineered for reliability, the connection withstands maximum working pressures of up to 40 bar for DN10–DN40, 25 bar for DN50–DN100, and 16 bar for DN125–DN150, providing secure and durable performance across a wide range of system sizes. The operating temperature range depends on the gasket material selected, allowing flexibility to adapt to specific process conditions. Thanks to its robust construction and compliance with DIN 11851 standards, this fitting guarantees long service life, leak-tight connections, and compatibility with modern processing systems. Its knurled tail design facilitates easy handling and assembly, reducing downtime and ensuring efficiency in production environments. This makes it a trusted choice for manufacturers seeking reliable, hygienic, and durable connection solutions that support both safety and productivity.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NH-DWK-015	End. DIN 11851 corrugated DN15, hose 13 mm	12	40	In stock	Enquiry
NH-DWK-020	End. DIN 11851 corrugated DN20, hose 19 mm	20	40	In stock	Enquiry
NH-DWK-025	End. DIN 11851 corrugated DN25, hose 25 mm	25	40	In stock	Enquiry
NH-DWK-032	End. DIN 11851 corrugated DN32, hose 32 mm	32	40	In stock	Enquiry
NH-DWK-038	End. DIN 11851 corrugated DN38, hose 38 mm	38	40	In stock	Enquiry
NH-DWK-050	End. DIN 11851 corrugated DN50, hose 50 mm	50	25	In stock	Enquiry
NH-DWK-063	End. DIN 11851 corrugated DN63, hose 63 mm	65	25	In stock	Enquiry
NH-DWK-075	End. DIN 11851 corrugated DN75, hose 75 mm	75	25	In stock	Enquiry
NH-DWK-080	End. DIN 11851 corrugated DN80, hose 80 mm	80	25	In stock	Enquiry
NH-DWK-100	End. DIN 11851 corrugated DN100, hose 102 mm	100	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The DIN 11851 end for nut with a knurled tail is a high-quality stainless steel component designed to meet the demanding requirements of the food and chemical industries. Featuring a precision finish with Ra 0.8 µm in the bore, it ensures optimal hygiene and easy cleaning, making it ideal for applications where safety and cleanliness are paramount. Engineered for reliability, the connection withstands maximum working pressures of up to 40 bar for DN10–DN40, 25 bar for DN50–DN100, and 16 bar for DN125–DN150, providing secure and durable performance across a wide range of system sizes. The operating temperature range depends on the gasket material selected, allowing flexibility to adapt to specific process conditions. Thanks to its robust construction and compliance with DIN 11851 standards, this fitting guarantees long service life, leak-tight connections, and compatibility with modern processing systems. Its knurled tail design facilitates easy handling and assembly, reducing downtime and ensuring efficiency in production environments. This makes it a trusted choice for manufacturers seeking reliable, hygienic, and durable connection solutions that support both safety and productivity.
