Is the DIN 3016 Rubber P-Clip Mounting Clamp, 20 mm Strap, AISI 304 Steel supplied with screw, washer, and nut?

DIN 3016 Rubber P-Clip Mounting Clamp, 20 mm Strap, AISI 304 Steel is supplied without screw, washer, or nut. This allows you to select fastening hardware that best suits your specific installation requirements.

Can the DIN 3016 Rubber P-Clip Mounting Clamp, 20 mm Strap, AISI 304 Steel be used in marine environments without additional corrosion protection?

Yes. The DIN 3016 Rubber P-Clip Mounting Clamp, 20 mm Strap, AISI 304 Steel can be used in marine environments without additional corrosion protection in many typical marine applications. AISI 304 (W4) stainless steel offers good corrosion resistance to water and typical marine atmospheres, and the EPDM rubber provides excellent resistance to water, wear, temperature changes and aging, plus vibration damping and abrasion protection. The product description explicitly states suitability for the marine sector and even recommends the W4 stainless steel version for that use. However, corrosion resistance of AISI 304 is limited in highly aggressive conditions (constant salt spray, splash zones, tidal areas, or environments with high chloride exposure). For prolonged direct exposure to seawater, deck immersion, or highly corrosive offshore environments, higher-grade stainless steels (e.g., AISI 316/316L) or additional protective measures (coatings, sacrificial anodes, or isolating washers/fasteners made of compatible materials) are commonly advised. Practical guidance: - For indoor marine use, cable runs below decks, or protected exterior areas: DIN 3016 Rubber P-Clip Mounting Clamp, 20 mm Strap, AISI 304 Steel is generally appropriate. - For constant seawater contact, splash/tide zones, or harsh offshore exposure: consider AISI 316/316L or add corrosion protection and use compatible fasteners. Note: Clamp is supplied without screw, washer, or nut—choose fasteners of compatible corrosion-resistant material.

DIN 3016 Rubber P-Clip Mounting Clamp, 20 mm Strap, AISI 304 Steel

Additional information

Material	SS – stainless steel

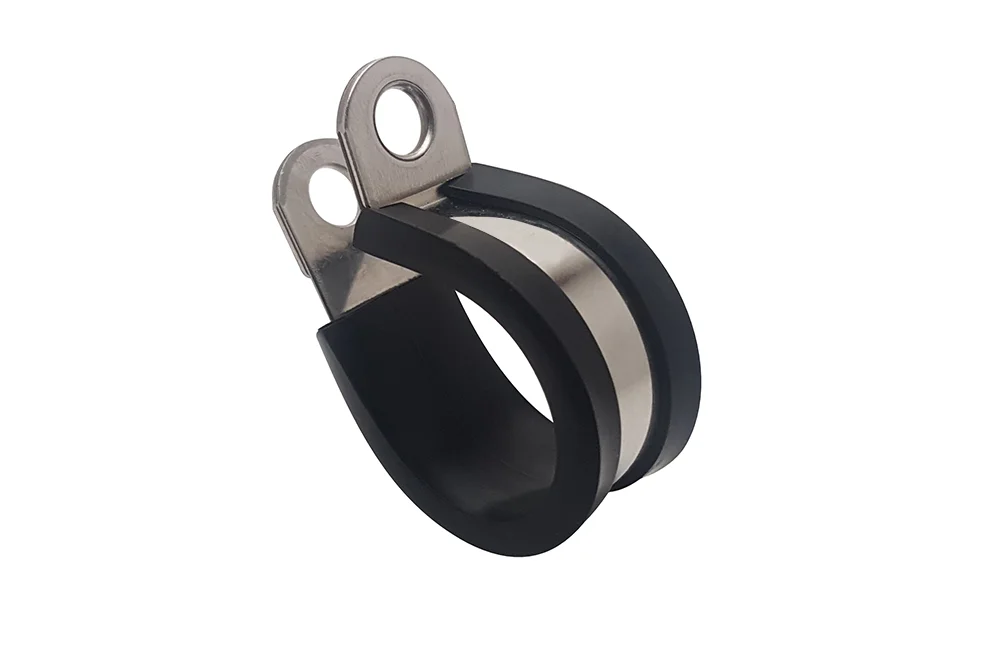

The RUBBER P-CLIP clamp, manufactured in compliance with DIN 3016, is designed to provide secure, vibration-damping fastening of pipes, hoses, cable bundles, and corrugated electrical conduits, effectively protecting them from abrasion and mechanical damage. Its robust construction from a single piece of bent AISI 304 stainless steel strip (W4) combined with a durable EPDM rubber profile ensures long-lasting performance even under demanding conditions. Reinforced holes at both ends of the strip guarantee exceptional resistance to compression and high mechanical loads, making the clamp a reliable choice for heavy-duty applications. Thanks to its superior resistance to water, wear, temperature fluctuations, and aging, the clamp is suitable for a wide range of industries, including agriculture, construction, automotive, railway, electrical engineering, household appliances, and particularly the marine sector, where the W4 stainless steel version is highly recommended. With a 20 mm strip width and a design that ensures both safety and durability, this clamp offers a professional solution for installations requiring maximum stability and protection. Please note that the clamp is supplied without screw, washer, or nut, allowing flexibility in assembly according to specific project requirements.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AB-43005512	RUBBER P-CLIP clamp 11 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005520	RUBBER P-CLIP clamp 12 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005539	RUBBER P-CLIP clamp 13 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005547	RUBBER P-CLIP clamp 14 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005555	RUBBER P-CLIP clamp 15 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005563	RUBBER P-CLIP clamp 16 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005571	RUBBER P-CLIP clamp 18 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005580	RUBBER P-CLIP clamp 19 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005598	RUBBER P-CLIP clamp 20 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005600	RUBBER P-CLIP clamp 21 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005619	RUBBER P-CLIP clamp 22 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005627	RUBBER P-CLIP clamp 23 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005635	RUBBER P-CLIP clamp 24 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005643	RUBBER P-CLIP clamp 25 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005661	RUBBER P-CLIP clamp 27 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005670	RUBBER P-CLIP clamp 28 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005688	RUBBER P-CLIP clamp 29 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005696	RUBBER P-CLIP clamp 30 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005715	RUBBER P-CLIP clamp 32 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005731	RUBBER P-CLIP clamp 34 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005740	RUBBER P-CLIP clamp 35 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005758	RUBBER P-CLIP clamp 36 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005774	RUBBER P-CLIP clamp 38 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005790	RUBBER P-CLIP clamp 40 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005811	RUBBER P-CLIP clamp 42 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005844	RUBBER P-CLIP clamp 45 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005877	RUBBER P-CLIP clamp 48 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005899	RUBBER P-CLIP clamp 50 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43005911	RUBBER P-CLIP clamp 52 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43006022	RUBBER P-CLIP clamp 63 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43006099	RUBBER P-CLIP clamp 70 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43006160	RUBBER P-CLIP clamp 77 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43006290	RUBBER P-CLIP clamp 90 mm, width 20 mm, W4	-	-	In stock	Enquiry
AB-43006299	RUBBER P-CLIP clamp 98 mm, width 20 mm, W4	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The RUBBER P-CLIP clamp, manufactured in compliance with DIN 3016, is designed to provide secure, vibration-damping fastening of pipes, hoses, cable bundles, and corrugated electrical conduits, effectively protecting them from abrasion and mechanical damage. Its robust construction from a single piece of bent AISI 304 stainless steel strip (W4) combined with a durable EPDM rubber profile ensures long-lasting performance even under demanding conditions. Reinforced holes at both ends of the strip guarantee exceptional resistance to compression and high mechanical loads, making the clamp a reliable choice for heavy-duty applications. Thanks to its superior resistance to water, wear, temperature fluctuations, and aging, the clamp is suitable for a wide range of industries, including agriculture, construction, automotive, railway, electrical engineering, household appliances, and particularly the marine sector, where the W4 stainless steel version is highly recommended. With a 20 mm strip width and a design that ensures both safety and durability, this clamp offers a professional solution for installations requiring maximum stability and protection. Please note that the clamp is supplied without screw, washer, or nut, allowing flexibility in assembly according to specific project requirements.
