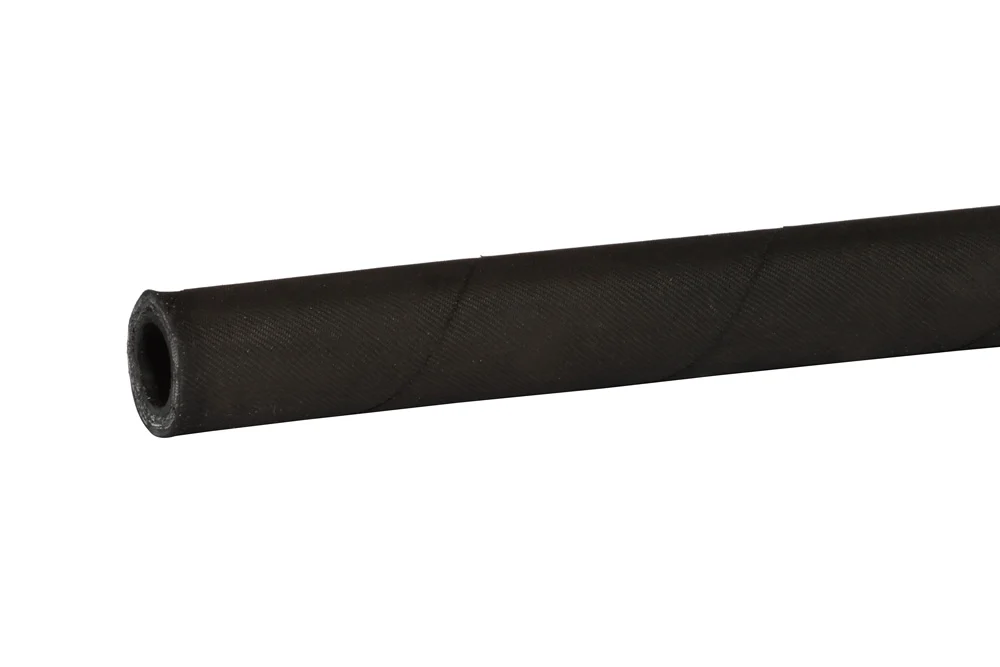

Double Braided Steel Hydraulic Hose EN 857 2SC / EN 45545-2

Additional information

Material

synthetic rubber

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Standard length [m]

10

This versatile hydraulic hose is designed for demanding applications where reduced weight, compact dimensions, and exceptional flexibility are essential. Built in compliance with EN 857 2SC and EN 45545-2 standards, it ensures reliable performance and safety even in challenging environments. The inner layer of durable black synthetic rubber guarantees resistance to fluid wear, while the double steel braid reinforcement provides outstanding strength and pressure stability. Its flame-retardant outer layer made of black synthetic rubber enhances durability and safety, making it suitable for use in areas with strict fire protection requirements. With a wide working pressure range from 90 bar up to 400 bar, depending on the diameter, and an operating temperature span from -40°C to +100°C, this hose delivers consistent efficiency across diverse conditions. For water and air applications, it operates safely up to +70°C, and for air pressures above 17 bar, a micro-perforated outer layer ensures optimal performance. Combining compact design, high resistance, and long service life, this hose is the ideal solution for industries seeking reliability, safety, and efficiency in hydraulic systems.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
HW-2SC-EC212-06Hydraulic hose EN 857 2SC 1/4" type EC212 / EN45545-26400In stock
Enquiry
HW-2SC-EC212-08Hydraulic hose EN 857 2SC 5/16" type EC212 / EN45545-28350In stock
Enquiry
HW-2SC-EC212-10Hydraulic hose EN 857 2SC 3/8" type EC212 / EN45545-210330In stock
Enquiry
HW-2SC-EC212-13Hydraulic hose EN 857 2SC 1/2" type EC212 / EN45545-212275In stock
Enquiry
HW-2SC-EC212-16Hydraulic hose EN 857 2SC 5/8" type EC212 / EN45545-216250In stock
Enquiry
HW-2SC-EC212-19Hydraulic hose EN 857 2SC 3/4" type EC212 / EN45545-220215In stock
Enquiry
HW-2SC-EC212-25Hydraulic hose EN 857 2SC 1" type EC212 / EN45545-225165In stock
Enquiry
HW-2SC-EC212-32Hydraulic hose EN 857 2SC 1.1/4" type EC212 / EN45545-232125In stock
Enquiry
HW-2SC-EC212-38Hydraulic hose EN 857 2SC 1.1/2" type EC212 / EN45545-238100In stock
Enquiry
HW-2SC-EC212-51Hydraulic hose EN 857 2SC 2" type EC212 / EN45545-25090In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This versatile hydraulic hose is designed for demanding applications where reduced weight, compact dimensions, and exceptional flexibility are essential. Built in compliance with EN 857 2SC and EN 45545-2 standards, it ensures reliable performance and safety even in challenging environments. The inner layer of durable black synthetic rubber guarantees resistance to fluid wear, while the double steel braid reinforcement provides outstanding strength and pressure stability. Its flame-retardant outer layer made of black synthetic rubber enhances durability and safety, making it suitable for use in areas with strict fire protection requirements. With a wide working pressure range from 90 bar up to 400 bar, depending on the diameter, and an operating temperature span from -40°C to +100°C, this hose delivers consistent efficiency across diverse conditions. For water and air applications, it operates safely up to +70°C, and for air pressures above 17 bar, a micro-perforated outer layer ensures optimal performance. Combining compact design, high resistance, and long service life, this hose is the ideal solution for industries seeking reliability, safety, and efficiency in hydraulic systems.

Additional information

Material

synthetic rubber

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Standard length [m]

10

Do you need a larger quantity of products or a bespoke quote?
