What is the maximum operating pressure of the EN 856 4SP S High-Pressure Hydraulic Hose by diameter?

The EN 856 4SP S High-Pressure Hydraulic Hose has a maximum operating (working) pressure that depends on diameter, ranging from 280 bar up to 450 bar. Smaller diameters achieve the higher end of the range (up to 450 bar), while larger diameters fall toward the lower end (around 280 bar). Exact pressure per specific diameter should be confirmed from the manufacturer’s table or datasheet for precise values.

How does the EN 856 4SP S High-Pressure Hydraulic Hose perform in extremely low and high temperature environments, including short-term temperature spikes?

The EN 856 4SP S High-Pressure Hydraulic Hose is engineered for reliable operation across a wide thermal range. Its specified continuous operating window of -40°C to +100°C means it remains flexible and maintains material integrity in very low temperatures (down to -40°C) and in typical high-temperature service up to +100°C. Short-term temperature spikes up to +125°C are also tolerated, so transient overheats or brief exposure to elevated temperatures will not immediately compromise performance. Practical implications: - Low temperatures (down to -40°C): inner synthetic rubber stays oil-resistant and flexible enough to preserve flow and avoid cracking or embrittlement under normal service conditions. - High temperatures (up to +100°C continuous): hose retains pressure capability and resistance to hydraulic fluids, with outer cover protecting against accelerated weathering or abrasion. - Short-term spikes to +125°C: acceptable for brief events without immediate failure; however repeated or prolonged exposure above +100°C can accelerate ageing of rubber compounds and may reduce service life and safety margins. For critical applications with frequent extreme spikes or sustained operation above +100°C, consider additional thermal protection or a hose rated for higher continuous temperatures.

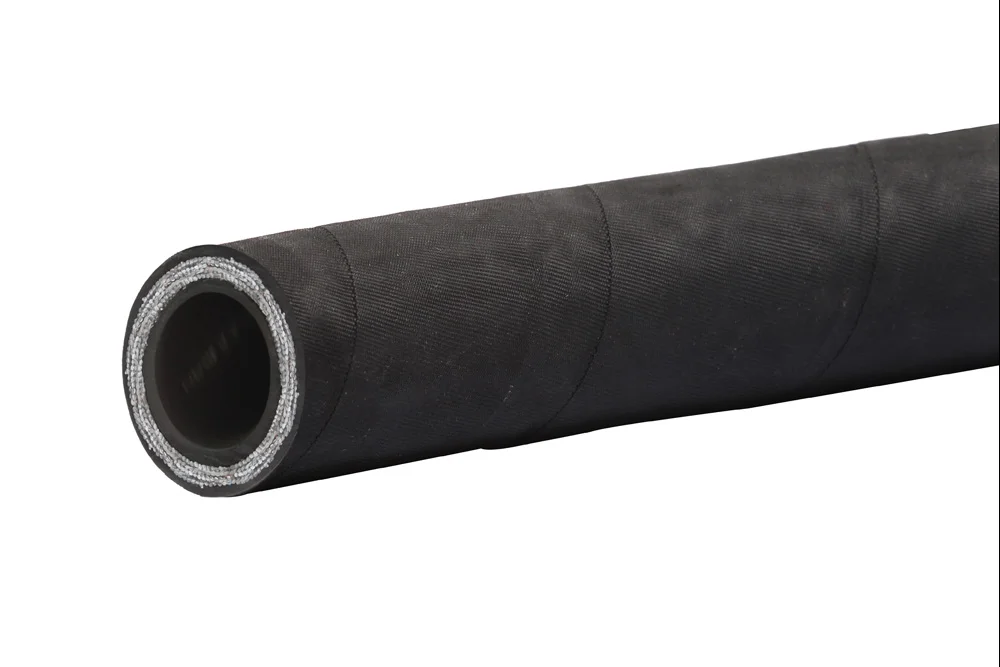

EN 856 4SP S High-Pressure Hydraulic Hose

All products, Hydraulic rubber hoses/

Additional information

Material	synthetic rubber
Maximum operating temperature [°C]	100
Minimum operating temperature [°C]	-40
Standard length [m]	10, 15

The EN 856 4SP general-purpose hydraulic hose is a high-performance solution designed to deliver reliable operation in demanding industrial and mobile hydraulic systems. Its inner tube is made of premium black synthetic rubber with excellent resistance to oils and hydraulic fluids, ensuring durability and consistent flow. Reinforced with four robust layers of high-tensile steel wire, the hose provides outstanding strength, flexibility, and safety even under extreme pressure conditions. The outer cover, also crafted from oil-resistant black synthetic rubber, offers superior protection against abrasion, weathering, and environmental factors, extending the service life of the product. With a working pressure range from 280 bar up to 450 bar depending on the diameter, this hose guarantees dependable performance across a wide spectrum of applications. It is engineered to operate efficiently in temperatures from -40°C to +100°C, withstanding peaks up to +125°C, making it a versatile choice for both low- and high-temperature environments. Combining durability, resistance, and adaptability, this hydraulic hose is the ideal component for industries seeking reliability, safety, and long-lasting efficiency in their hydraulic systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HW-4SP-06S	Hydraulic hose DIN EN 856 4SP 1/4"	6	450	In stock	Enquiry
HW-4SP-10S	Hydraulic hose DIN EN 856 4SP 3/8"	10	445	In stock	Enquiry
HW-4SP-13S	Hydraulic hose DIN EN 856 4SP 1/2"	12	415	In stock	Enquiry
HW-4SP-16S	Hydraulic hose DIN EN 856 4SP 5/8"	16	350	In stock	Enquiry
HW-4SP-19S	Hydraulic hose DIN EN 856 4SP 3/4	20	350	In stock	Enquiry
HW-4SP-25S	Hydraulic hose DIN EN 856 4SP 1	25	280	In stock	Enquiry
