Is the Quick-release dual-sided air shut-off coupling DN7.2 Eurostandard, threaded, 16 bar compatible with both BSP and metric thread standards?

Yes. The Quick-release dual-sided air shut-off coupling DN7.2 Eurostandard, threaded, 16 bar is available with either BSP or metric threads (external or internal), so it is compatible with both BSP and metric thread standards. Ensure you select the specific thread variant required for your installation to guarantee proper fit and sealing.

Can the Quick-release dual-sided air shut-off coupling DN7.2 Eurostandard, threaded, 16 bar be safely used with nitrogen and other non-flammable gases at pressures up to 16 bar?

Yes. The Quick-release dual-sided air shut-off coupling DN7.2 Eurostandard, threaded, 16 bar can be safely used with nitrogen and other non-flammable gases at pressures up to 16 bar. It is specifically designed for pneumatic systems operating with air, nitrogen, or other non-flammable gases, features double shut-off valves in both socket and plug to prevent leaks, and is rated for a working pressure up to 16 bar. Construction from brass with stainless steel components and NBR seals ensures durability and tightness across −20°C to +100°C, while the high flow rate (734 l/min at Pe=6 bar, Δp=1 bar) supports efficient performance in industrial settings. Ensure compatibility with your system’s thread type (external/internal BSP or metric) and follow standard safety and installation practices.

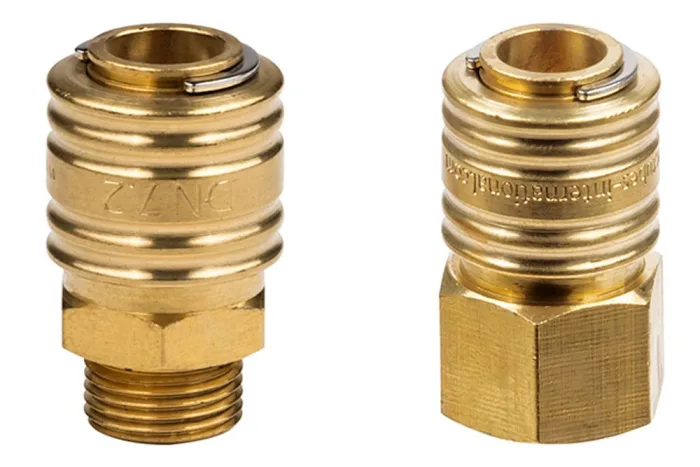

Quick-release dual-sided air shut-off coupling DN7.2 Eurostandard, threaded, 16 bar

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)
Standard length [m]	25, 50

The quick-release socket with double shut-off in the Eurostandard DN7.2 profile is a reliable and versatile solution designed for pneumatic systems operating with air, nitrogen, or other non-flammable gases. Equipped with valves in both the socket and the plug, it ensures maximum safety and prevents unwanted leaks, while its intuitive one-hand operation up to 8 bar makes daily use fast and convenient. With a working pressure of up to 16 bar and a high flow rate of 734 l/min (Pe=6 bar, Δp=1 bar), it guarantees efficient performance even in demanding industrial environments. Manufactured from durable brass with stainless steel pins and spring, it offers long-lasting resistance to wear and corrosion, while the NBR sealing ensures tightness and reliability across a wide temperature range from -20°C to +100°C. Available with external or internal BSP or metric threads, this coupling provides flexible installation options, making it an excellent choice for workshops, production lines, and professional pneumatic applications where efficiency, safety, and durability are essential.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TP-ES72D-GW-02X	Quick coupling socket DN7.2 double shut-off, GW 1/8" BSP, brass	-	16	In stock	Enquiry
TP-ES72D-GW-04X	Quick coupling socket DN7.2 double shut-off, GW 1/4" BSP, brass	-	16	In stock	Enquiry
TP-ES72D-GW-06X	Quick coupling socket DN7.2 double shut-off, GW 3/8" BSP, brass	-	16	In stock	Enquiry
TP-ES72D-GW-08X	Quick coupling socket DN7.2 double shut-off, GW 1/2" BSP, brass	-	16	In stock	Enquiry
TP-ES72D-GW-M14X	Quick coupling socket DN7.2 double shut-off, GW M14x1.5, brass	-	16	In stock	Enquiry
TP-ES72D-GW-M16X	Quick coupling socket DN7.2 double shut-off, GW M16x1.5, brass	-	16	In stock	Enquiry
TP-ES72D-GW-M18X	Quick coupling socket DN7.2 double shut-off, GW M18x1.5, brass	-	16	In stock	Enquiry
TP-ES72D-GZ-02X	Quick coupling socket DN7.2 double shut-off, GZ 1/8" BSP, brass	-	16	In stock	Enquiry
TP-ES72D-GZ-04X	Quick coupling socket DN7.2 double shut-off, GZ 1/4" BSP, brass	-	16	In stock	Enquiry
TP-ES72D-GZ-06X	Quick coupling socket DN7.2 double shut-off, GZ 3/8" BSP, brass	-	16	In stock	Enquiry
TP-ES72D-GZ-08X	Quick coupling socket DN7.2 double shut-off, GZ 1/2" BSP, brass	-	16	In stock	Enquiry
TP-ES72D-GZ-M14X	Quick coupling socket DN7.2 double shut-off, GZ M14x1.5, brass	-	16	In stock	Enquiry
TP-ES72D-GZ-M16X	Quick coupling socket DN7.2 double shut-off, GZ M16x1.5, brass	-	16	In stock	Enquiry
TP-ES72D-GZ-M18X	Quick coupling socket DN7.2 double shut-off, GZ M18x1.5, brass	-	16	In stock	Enquiry
