Is the Quick coupling socket 90° for injection molds, hose end, no valve, DYROS 40 series suitable for both cooling liquids and compressed air up to 15 bar?

Yes. The Quick coupling socket 90° for injection molds, hose end, no valve, DYROS 40 series is suitable for both cooling liquids and compressed air up to 15 bar. It is specifically engineered for mold temperature control with cooling liquids and for compressed air systems, and its working pressure capacity is up to 15 bar.

Can the Quick coupling socket 90° for injection molds, hose end, no valve, DYROS 40 series be used with aggressive cooling fluids or only with standard water-based media?

The Quick coupling socket 90° for injection molds, hose end, no valve, DYROS 40 series can be used with a wide range of cooling liquids and technical media beyond standard water-based fluids. Its all-brass construction and stainless-steel retaining rings, springs and balls provide strong corrosion and wear resistance, and the 15 bar working pressure rating supports demanding mold temperature-control applications. However, compatibility with aggressive chemicals depends on the specific fluid’s corrosivity and temperature. Highly aggressive acids, alkalis, chlorinated solvents or other chemically aggressive media may attack brass or stainless-steel components over time. For such media, verify chemical compatibility (material/temperature/concentration) with the manufacturer or choose couplings specified for aggressive chemicals. For standard and many enhanced water-based cooling fluids, the DYROS 40 series is suitable and reliable.

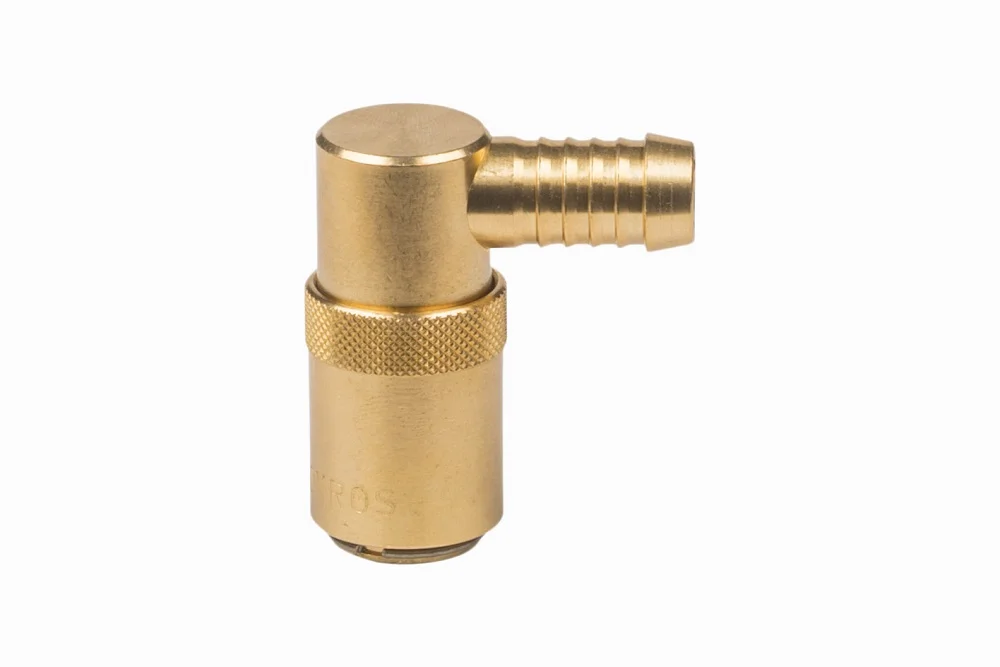

Quick coupling socket 90° for injection molds, hose end, no valve, DYROS 40 series

Additional information

Material	B – brass (bronze)

The 90° quick coupling socket DYROS Series 40 with hose end, designed without valve, ensures reliable and efficient connections in demanding industrial environments. Engineered for use with cooling liquids in mold temperature control during plastic processing, as well as in compressed air systems, gas cylinders, and a wide range of technical applications, this coupling delivers both versatility and durability. Manufactured entirely from high-quality brass, with retaining rings, springs, and balls crafted from treated stainless steel, it guarantees long-lasting resistance to wear, corrosion, and intensive use. With a working pressure capacity of up to 15 bar, the DYROS Series 40 coupling provides secure performance and leak-free operation, making it an ideal solution for industries seeking efficiency, safety, and precision in fluid and air management. Its 90° design allows for optimized hose positioning in confined spaces, ensuring maximum flexibility and convenience in installation.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
DY-VK411-90-OV	90° socket DN 9 with 7/16" hose end, without valve	10	15	In stock	0 €		Enquiry
DY-VK418-90-OV	90° socket DN 9 with 1/2" hose connection, without valve	12	15	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The 90° quick coupling socket DYROS Series 40 with hose end, designed without valve, ensures reliable and efficient connections in demanding industrial environments. Engineered for use with cooling liquids in mold temperature control during plastic processing, as well as in compressed air systems, gas cylinders, and a wide range of technical applications, this coupling delivers both versatility and durability. Manufactured entirely from high-quality brass, with retaining rings, springs, and balls crafted from treated stainless steel, it guarantees long-lasting resistance to wear, corrosion, and intensive use. With a working pressure capacity of up to 15 bar, the DYROS Series 40 coupling provides secure performance and leak-free operation, making it an ideal solution for industries seeking efficiency, safety, and precision in fluid and air management. Its 90° design allows for optimized hose positioning in confined spaces, ensuring maximum flexibility and convenience in installation.
