Is the Socket DN6 Quick Coupling with PUSH-ON Hose End, TST 060 Brass Series suitable for steam and hot oil applications up to 200°C?

Yes. The Socket DN6 Quick Coupling with PUSH-ON Hose End, TST 060 Brass Series is suitable for steam and hot oil applications up to 200°C. Its specifications list an operating temperature range up to +200°C (with Viton sealing) and explicitly note suitability for hot oil and steam. The brass body and stainless-steel internal parts provide corrosion and high-temperature resistance, and the unit is rated for up to 25 bar working pressure, making it appropriate for demanding industrial steam and hot-oil service within the stated temperature and pressure limits.

Can the Socket DN6 Quick Coupling with PUSH-ON Hose End, TST 060 Brass Series be used in abrasive or corrosive fluid environments and what maintenance is required?

Yes — the Socket DN6 Quick Coupling with PUSH-ON Hose End, TST 060 Brass Series can be used in many abrasive or corrosive fluid environments, with some limitations and required maintenance. Why it’s suitable - Construction: brass body, connection and valve sleeve with stainless-steel spring, ring and balls provide good general corrosion resistance and mechanical durability. - Temperature and pressure: rated to 25 bar and –20°C to +200°C (with Viton seals), so it handles hot oils, steam and many process fluids. - Applications: explicitly intended for demanding industrial uses (cooling, cleaning, hot fluids). Limitations - Brass and stainless steel resist many but not all aggressive chemicals. Strong acids, chlorides, chloride-containing solutions at high temperature, some halogenated solvents and highly abrasive slurries can accelerate degradation. - Viton seals resist many oils and chemicals but are incompatible with certain solvents and amines. Recommended maintenance - Inspect regularly for external damage, pitting or discoloration (indicative of corrosion). - Check seal condition and replace seals (Viton) on a scheduled basis or when leakage appears. - Clean internal passages after exposure to abrasive or depositing fluids to prevent wear and clogging. - Lubricate moving parts with compatible lubricant if manufacturer recommends. - Drain and flush the line with a compatible fluid after use with aggressive media. - Replace any stainless components showing significant wear or corrosion and follow a preventive replacement schedule in severe conditions. If your fluids are highly corrosive or abrasive, consult the manufacturer with fluid composition and operating conditions to confirm compatibility or request alternative materials/coatings.

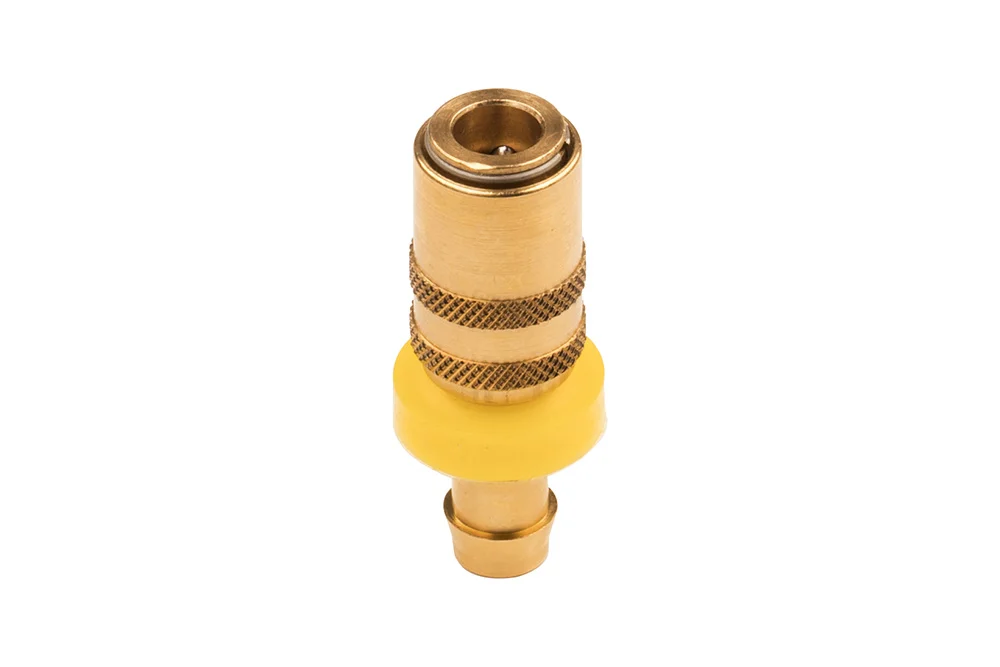

Socket DN6 Quick Coupling with PUSH-ON Hose End, TST 060 Brass Series

Additional information

Material	B – brass (bronze)

The DN 6 quick coupling socket with tail for PUSH-ON hose is a versatile and reliable solution designed for demanding industrial applications. Available with or without a valve, it ensures secure and efficient connections in processes such as cooling injection molds and casting components made of plastics, aluminum, brass, or zinc alloys. Its robust construction allows it to handle water in cleaning systems, as well as hot oil and steam, making it an excellent choice for environments requiring durability and flexibility. With a 6 mm flow diameter, a working pressure of up to 25 bar, and an impressive operating temperature range from -20°C to +200°C (with viton sealing), this coupling guarantees consistent performance under extreme conditions. The socket body, connection, and valve sleeve are made of high-quality brass, while the spring, ring, and balls are crafted from stainless steel, ensuring long-lasting resistance to wear, corrosion, and high thermal loads. This combination of materials and technical parameters makes the DN 6 quick coupling socket an essential component for industries seeking efficiency, reliability, and safety in fluid handling systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
FW-CSK060-FG06	DN 6 socket with end for PUSH-ON hose 6.7 mm, with valve	6	25	In stock	Enquiry
FW-CSK060-FG10	DN 6 socket with end for PUSH-ON 10 mm hose, with valve	10	25	In stock	Enquiry
FW-SK060-FG06	DN 6 socket with end for PUSH-ON hose 6.7 mm, without valve	6	25	In stock	Enquiry
FW-SK060-FG10	DN 6 socket with end for PUSH-ON hose 10 mm, without valve	10	25	In stock	Enquiry
