Is the DYROS 90 Quick Coupler Socket with Valve for Injection Mold Hose Ends compatible with food-grade fluids and safe for contact with potable water?

Based on the provided description, the DYROS 90 Quick Coupler Socket with Valve for Injection Mold Hose Ends is engineered for demanding industrial uses (cooling circuits, compressed air, gas cylinders) and is made entirely of brass with stainless-steel components and Viton seals. These materials indicate strong chemical resistance and durability but do not constitute explicit certification for food-grade use or potable water contact. Specifically: - Brass can leach lead or other metals unless it is a certified lead-free (e.g., dezincification-resistant, NSF/WRAS-approved) alloy formulated for drinking water — the description does not state such certification. - Viton (fluoroelastomer) has good chemical resistance but is not typically certified as a universal food-contact elastomer; many potable-water applications require EPDM, NSF-61/ANSI-compliant materials, or explicit potable-water approval. - No mention of relevant approvals (NSF/ANSI, WRAS, KTW, FDA food-contact, etc.) or microbial/corrosion resistance required for potable water systems appears in the description. Conclusion: The DYROS 90 Quick Coupler Socket with Valve for Injection Mold Hose Ends is not explicitly described as food-grade or safe for potable water. For use with food-grade fluids or drinking water, request manufacturer documentation certifying lead-free brass alloy and approved seals (NSF/ANSI, WRAS, FDA, or equivalent).

Can the DYROS 90 Quick Coupler Socket with Valve for Injection Mold Hose Ends withstand continuous operation at 15 bar in high-temperature cooling circuits without seal degradation?

Yes. The DYROS 90 Quick Coupler Socket with Valve for Injection Mold Hose Ends is specified for continuous operation up to 15 bar and is designed for demanding industrial uses such as high-temperature cooling circuits in plastic processing. Key features that support resistance to seal degradation under those conditions: - Body and internal retention parts in high-quality brass and specially treated stainless steel provide mechanical durability and corrosion resistance under continuous use. - Viton (FKM) sealing is specified; Viton is known for excellent high-temperature stability and chemical resistance compared with many elastomers, making it suitable for hot cooling fluids and resistant to swelling or degradation from typical additives. - Integrated shut-off valve reduces exposure of seals during make/break cycles, improving longevity. Caveats and recommendations: - Actual seal life depends on specific fluid composition, peak temperatures, temperature cycling, and continuous exposure time. Viton typically performs well up to ~200–220°C for short periods, but long-term exposure at elevated temperatures or aggressive additives can shorten life. - For critical continuous-service applications, validate in situ by testing with your exact fluid and temperature profile, and implement routine inspection/replacement intervals. Conclusion: Based on materials and specification, the DYROS 90 Quick Coupler Socket with Valve for Injection Mold Hose Ends can withstand continuous operation at 15 bar in high-temperature cooling circuits without premature seal degradation in typical conditions, provided the fluid and temperature remain within Viton’s compatibility limits and you follow validation and maintenance best practices.

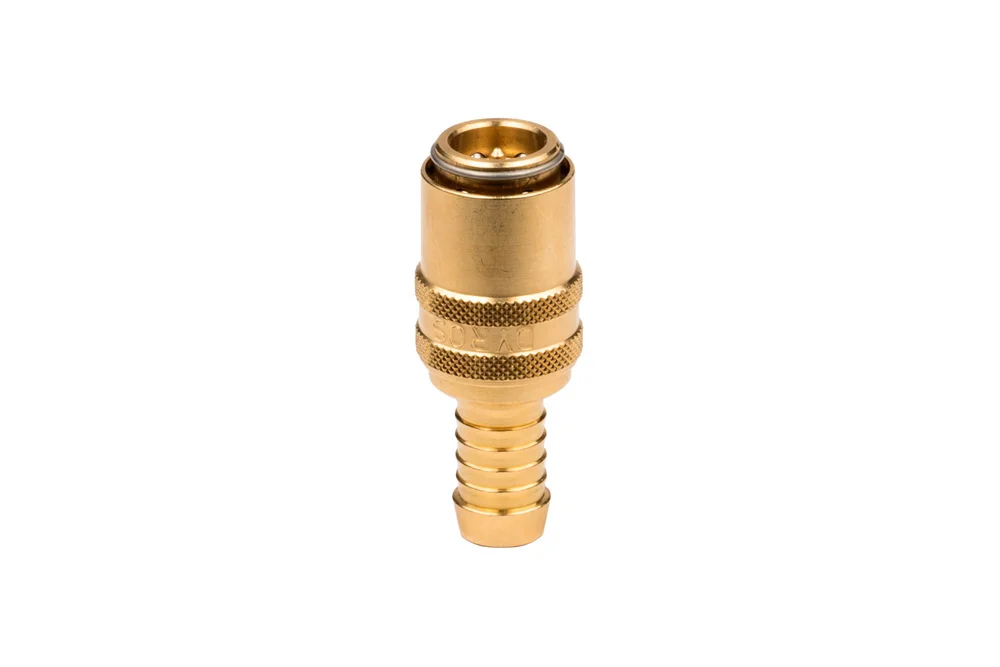

DYROS 90 Quick Coupler Socket with Valve for Injection Mold Hose Ends

Additional information

Material	B – brass (bronze)

The DYROS Series 90 quick coupling socket with hose end and integrated shut-off valve is a reliable solution engineered for demanding industrial environments. Designed to ensure secure and efficient connections, it is ideally suited for cooling circuits in plastic processing, compressed air systems, gas cylinder applications, and a wide range of other technical uses. Manufactured entirely from high-quality brass, with retaining rings, springs, and balls crafted from specially treated stainless steel, it guarantees durability and resistance to wear even under intensive operation. The use of Viton sealing ensures excellent chemical resistance and long-lasting tightness, making the coupling highly dependable in challenging conditions. With a working pressure of up to 15 bar, this coupling socket combines safety, performance, and ease of use, offering professionals a robust and efficient solution that enhances productivity and minimizes downtime.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DY-LK911	DN 9 socket with 7/16" hose end, with valve	10	15	In stock	Enquiry
DY-LK916	DN 9 socket with 3/8" hose end, with valve	10	15	In stock	Enquiry
DY-LK918	DN 9 socket with 1/2" hose end, with valve	12	15	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The DYROS Series 90 quick coupling socket with hose end and integrated shut-off valve is a reliable solution engineered for demanding industrial environments. Designed to ensure secure and efficient connections, it is ideally suited for cooling circuits in plastic processing, compressed air systems, gas cylinder applications, and a wide range of other technical uses. Manufactured entirely from high-quality brass, with retaining rings, springs, and balls crafted from specially treated stainless steel, it guarantees durability and resistance to wear even under intensive operation. The use of Viton sealing ensures excellent chemical resistance and long-lasting tightness, making the coupling highly dependable in challenging conditions. With a working pressure of up to 15 bar, this coupling socket combines safety, performance, and ease of use, offering professionals a robust and efficient solution that enhances productivity and minimizes downtime.
