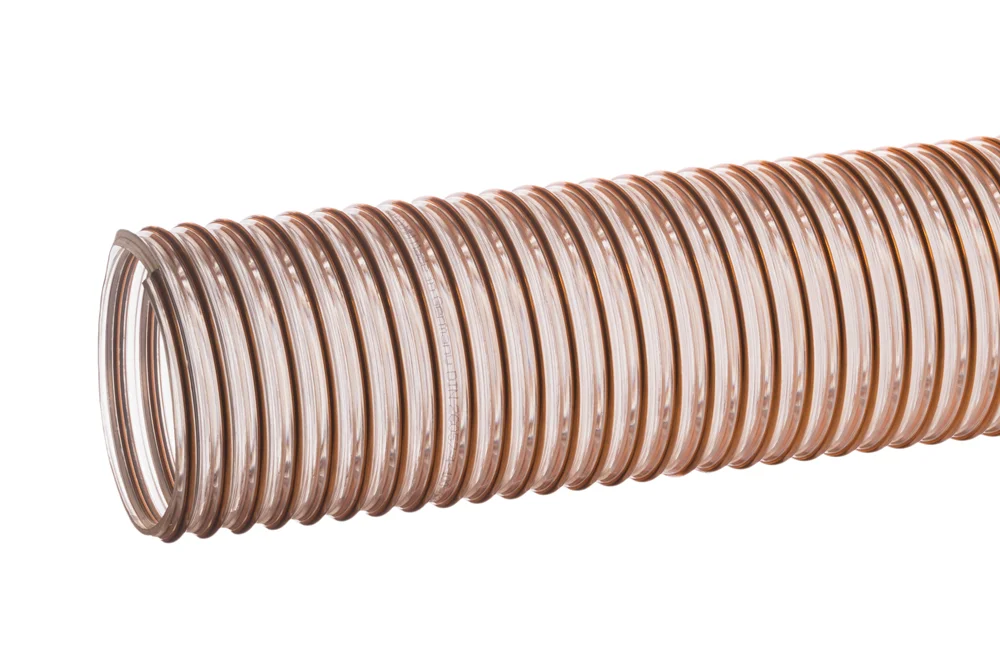

Very thick, ecological hose ducting ECO 2.0, ECO 2.5

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

10

Reinforcement

steel spiral

Very strong, o thick wall and thick spiral, flexible hose intended vacuum extraction and conveying materials abrasive e.g. sand, gravel, grain. Dla all types industry, in particular used for loading and emptying silos, vehicles and excavators suction, handling with tankers etc. thick wall and very dense spiral reinforcing ensures high resistance to vacuum. smooth inside, not compressible, not very pliable, but flexible, also in low temperatures. O excellent resistance to abrasion, resistant also on microbes and hydrolysis. Not toxic, Contains no halogen compounds or plasticisers. Resistant to oils and petrol. hose marked is an arrow indicating correct direction flow medium. The hose wall thickness is measured between the spiral. Other diameters may be available on special order. hoses ECO 2.0 and ECO 2.5 independently od its wall thickness, differ between each other design, a co za this goes also parameters. ECO 2.0 thanks to dense spiral has greater resistance to vacuum, ale is less pliable, whereas ECO 2.5 o greater stroke spiral is more pliable and flexible, especially in greater diameters. hose ECO produced is in process production compliant with with policy sustainable growth in which uses raw materials originating with recycling pure waste with process production, energy renewable, closed circulation water and other innovation. Hose material: transparent polyether-polyurethane. Reinforcement: spiral with wire steel. Wall thickness measured between the spiral: 2.0 mm (ECO 2.0), 2.5 mm (ECO 2.5). Operating temperature: od -40°C up to +100°C (momentarily for + 125°C).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
SC-ECO-038-25Hose ECO 2.5 38 mm383.4In stock0 €
Enquiry
SC-ECO-040-25Hose ECO 2.5 40 mm403.33In stock0 €
Enquiry
SC-ECO-045-25Hose ECO 2.5 45 mm453.14In stock0 €
Enquiry
SC-ECO-050-20Hose ECO 2.0 50 mm502.45In stock0 €
Enquiry
SC-ECO-050-25Hose ECO 2.5 50 mm503.09In stock0 €
Enquiry
SC-ECO-060-20Hose ECO 2.0 60 mm602.4In stock0 €
Enquiry
SC-ECO-060-25Hose ECO 2.5 60 mm603.04In stock0 €
Enquiry
SC-ECO-070-20Hose ECO 2.0 70 mm702.3In stock0 €
Enquiry
SC-ECO-070-25Hose ECO 2.5 70 mm702.85In stock0 €
Enquiry
SC-ECO-075-20Hose ECO 2.0 75 mm752.25In stock0 €
Enquiry
SC-ECO-075-25Hose ECO 2.5 75 mm752.38In stock0 €
Enquiry
SC-ECO-076-20Hose ECO 2.0 76 mm752.25In stock0 €
Enquiry
SC-ECO-076-25Hose ECO 2.5 76 mm752.35In stock0 €
Enquiry
SC-ECO-080-20Hose ECO 2.0 80 mm802.2In stock0 €
Enquiry
SC-ECO-080-25Hose ECO 2.5 80 mm802.09In stock0 €
Enquiry
SC-ECO-100-20Hose ECO 2.0 100 mm1001.85In stock0 €
Enquiry
SC-ECO-100-25Hose ECO 2.5 100 mm1001.57In stock0 €
Enquiry
SC-ECO-120-25Hose ECO 2.5 120 mm1201.38In stock0 €
Enquiry
SC-ECO-125-20Hose ECO 2.0 125 mm1251.6In stock0 €
Enquiry
SC-ECO-125-25Hose ECO 2.5 125 mm1251.3In stock0 €
Enquiry
SC-ECO-127-20Hose ECO 2.0 127 mm1251.6In stock0 €
Enquiry
SC-ECO-140-25Hose ECO 2.5 140 mm1401.19In stock0 €
Enquiry
SC-ECO-150-20Hose ECO 2.0 150 mm1501.5In stock0 €
Enquiry
SC-ECO-152-20Hose ECO 2.0 152 mm1501.5In stock0 €
Enquiry
SC-ECO-160-25Hose ECO 2.5 160 mm1600.95In stock0 €
Enquiry
SC-ECO-200-20Hose ECO 2.0 200 mm2001.15In stock0 €
Enquiry
SC-ECO-200-25Hose ECO 2.5 200 mm2000.81In stock0 €
Enquiry
SC-ECO-225-20Hose ECO 2.0 225 mm2251In stock0 €
Enquiry
SC-ECO-250-20Hose ECO 2.0 250 mm2500.7In stock0 €
Enquiry
SC-ECO-254-20Hose ECO 2.0 254 mm2500.7In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Very strong, o thick wall and thick spiral, flexible hose intended vacuum extraction and conveying materials abrasive e.g. sand, gravel, grain. Dla all types industry, in particular used for loading and emptying silos, vehicles and excavators suction, handling with tankers etc. thick wall and very dense spiral reinforcing ensures high resistance to vacuum. smooth inside, not compressible, not very pliable, but flexible, also in low temperatures. O excellent resistance to abrasion, resistant also on microbes and hydrolysis. Not toxic, Contains no halogen compounds or plasticisers. Resistant to oils and petrol. hose marked is an arrow indicating correct direction flow medium. The hose wall thickness is measured between the spiral. Other diameters may be available on special order. hoses ECO 2.0 and ECO 2.5 independently od its wall thickness, differ between each other design, a co za this goes also parameters. ECO 2.0 thanks to dense spiral has greater resistance to vacuum, ale is less pliable, whereas ECO 2.5 o greater stroke spiral is more pliable and flexible, especially in greater diameters. hose ECO produced is in process production compliant with with policy sustainable growth in which uses raw materials originating with recycling pure waste with process production, energy renewable, closed circulation water and other innovation. Hose material: transparent polyether-polyurethane. Reinforcement: spiral with wire steel. Wall thickness measured between the spiral: 2.0 mm (ECO 2.0), 2.5 mm (ECO 2.5). Operating temperature: od -40°C up to +100°C (momentarily for + 125°C).

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

10

Reinforcement

steel spiral
