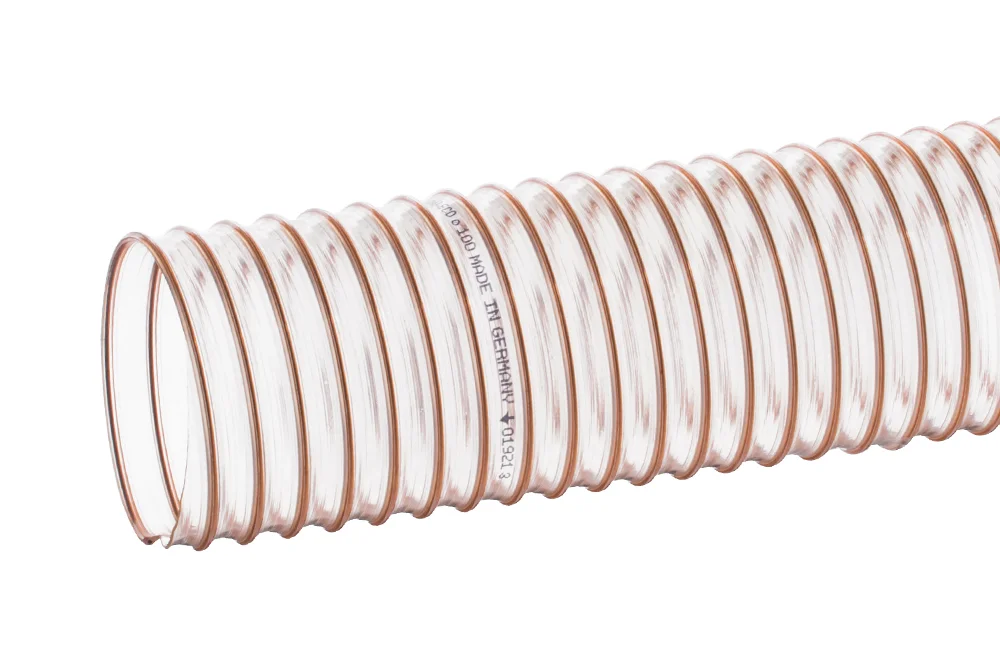

Medium Thickness ECO 1.0 – Eco-Friendly Extraction Hose

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

10

Reinforcement

steel spiral

This strong and flexible medium-thickness hose is engineered for efficient transport of chips, bulk materials, and granules across a wide range of industries, with particular effectiveness in woodworking, furniture, ceramics, and plastics applications. Its medium-thick wall combined with a dense steel wire spiral reinforcement ensures higher pressure resistance compared to lighter ECO hose models, while the smooth inner surface guarantees optimized flow with minimal resistance. The hose remains highly flexible even at low temperatures, offers excellent abrasion resistance, and is resistant to microbes, hydrolysis, oils, and gasoline. Free from halogens and plasticizers, it is non-toxic and safe for demanding industrial environments. Designed with a directional flow arrow for easy installation, it is mounted on couplings using right-handed bridge clamps, with additional diameters available upon request. The product line includes multiple specialized versions: ECO (standard), ECO SE (flame-retardant, UL94 V-2), ECO AS (permanently antistatic, compliant with ISO 8031, TRGS 727, and ATEX directives), and ECO SE AS (antistatic and flame-retardant, available on special order). Manufactured from transparent polyester-polyurethane with a 1.0 mm wall thickness between spirals, the hose operates reliably in temperatures from -40°C to +100°C, withstanding peaks up to +125°C. Produced under sustainable development standards, it incorporates recycled raw materials, renewable energy, and closed water circulation, making it not only a high-performance solution but also an environmentally responsible choice.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
SC-ECO-040-10ECO Hose 1.0 40 mm401.25In stock
Enquiry
SC-ECO-040-10SEECO SE Hose 1.0 40 mm401.25In stock
Enquiry
SC-ECO-050-10ECO Hose 1.0 50 mm501.2In stock
Enquiry
SC-ECO-050-10SEECO SE Hose 1.0 50 mm501.2In stock
Enquiry
SC-ECO-060-10ECO Hose 1.0 60 mm601.15In stock
Enquiry
SC-ECO-060-10SEECO SE Hose 1.0 60 mm601.15In stock
Enquiry
SC-ECO-065-10ECO Hose 1.0 65 mm651.12In stock
Enquiry
SC-ECO-065-10SEECO SE Hose 1.0 65 mm651.12In stock
Enquiry
SC-ECO-070-10ECO Hose 1.0 70 mm701.08In stock
Enquiry
SC-ECO-070-10SEECO SE Hose 1.0 70 mm701.08In stock
Enquiry
SC-ECO-075-10ECO Hose 1.0 75 mm751.05In stock
Enquiry
SC-ECO-075-10SEECO SE Hose 1.0 75 mm751.05In stock
Enquiry
SC-ECO-080-10ECO Hose 1.0 80 mm801.05In stock
Enquiry
SC-ECO-080-10SEECO SE Hose 1.0 80 mm801.05In stock
Enquiry
SC-ECO-090-10ECO Hose 1.0 90 mm900.85In stock
Enquiry
SC-ECO-090-10SEECO SE Hose 1.0 90 mm900.85In stock
Enquiry
SC-ECO-100-10ECO Hose 1.0 100 mm1000.7In stock
Enquiry
SC-ECO-100-10SEECO SE Hose 1.0 100 mm1000.7In stock
Enquiry
SC-ECO-110-10ECO Hose 1.0 110 mm1100.65In stock
Enquiry
SC-ECO-110-10SEECO SE Hose 1.0 110 mm1100.65In stock
Enquiry
SC-ECO-120-10ECO Hose 1.0 120 mm1200.65In stock
Enquiry
SC-ECO-120-10SEECO SE Hose 1.0 120 mm1200.65In stock
Enquiry
SC-ECO-125-10ECO Hose 1.0 125 mm1250.55In stock
Enquiry
SC-ECO-130-10ECO Hose 1.0 130 mm1300.55In stock
Enquiry
SC-ECO-130-10SEECO SE Hose 1.0 130 mm1300.55In stock
Enquiry
SC-ECO-140-10ECO Hose 1.0 140 mm1400.55In stock
Enquiry
SC-ECO-140-10SEECO SE Hose 1.0 140 mm1400.55In stock
Enquiry
SC-ECO-150-10ECO Hose 1.0 150 mm1500.45In stock
Enquiry
SC-ECO-150-10SEECO SE Hose 1.0 150 mm1500.45In stock
Enquiry
SC-ECO-160-10ECO Hose 1.0 160 mm1600.4In stock
Enquiry
SC-ECO-160-10SEECO SE Hose 1.0 160 mm1600.4In stock
Enquiry
SC-ECO-175-10SEECO SE Hose 1.0 175 mm1800.36In stock
Enquiry
SC-ECO-180-10ECO Hose 1.0 180 mm1800.35In stock
Enquiry
SC-ECO-180-10SEECO SE Hose 1.0 180 mm1800.35In stock
Enquiry
SC-ECO-200-10ECO Hose 1.0 200 mm2000.3In stock
Enquiry
SC-ECO-200-10SEECO SE Hose 1.0 200 mm2000.3In stock
Enquiry
SC-ECO-225-10ECO Hose 1.0 225 mm2250.25In stock
Enquiry
SC-ECO-225-10SEECO SE Hose 1.0 225 mm2250.25In stock
Enquiry
SC-ECO-250-10ECO Hose 1.0 250 mm2500.25In stock
Enquiry
SC-ECO-250-10SEECO SE Hose 1.0 250 mm2500.25In stock
Enquiry
SC-ECO-275-10ECO Hose 1.0 275 mm2750.22In stock
Enquiry
SC-ECO-275-10SEECO SE Hose 1.0 275 mm2750.22In stock
Enquiry
SC-ECO-300-10ECO Hose 1.0 300 mm3000.2In stock
Enquiry
SC-ECO-300-10SEECO SE Hose 1.0 300 mm3000.2In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This strong and flexible medium-thickness hose is engineered for efficient transport of chips, bulk materials, and granules across a wide range of industries, with particular effectiveness in woodworking, furniture, ceramics, and plastics applications. Its medium-thick wall combined with a dense steel wire spiral reinforcement ensures higher pressure resistance compared to lighter ECO hose models, while the smooth inner surface guarantees optimized flow with minimal resistance. The hose remains highly flexible even at low temperatures, offers excellent abrasion resistance, and is resistant to microbes, hydrolysis, oils, and gasoline. Free from halogens and plasticizers, it is non-toxic and safe for demanding industrial environments. Designed with a directional flow arrow for easy installation, it is mounted on couplings using right-handed bridge clamps, with additional diameters available upon request. The product line includes multiple specialized versions: ECO (standard), ECO SE (flame-retardant, UL94 V-2), ECO AS (permanently antistatic, compliant with ISO 8031, TRGS 727, and ATEX directives), and ECO SE AS (antistatic and flame-retardant, available on special order). Manufactured from transparent polyester-polyurethane with a 1.0 mm wall thickness between spirals, the hose operates reliably in temperatures from -40°C to +100°C, withstanding peaks up to +125°C. Produced under sustainable development standards, it incorporates recycled raw materials, renewable energy, and closed water circulation, making it not only a high-performance solution but also an environmentally responsible choice.
