What is the maximum operating pressure and return pressure tolerance of the Electrically Controlled Hydraulic Spool Valve YE45?

The Electrically Controlled Hydraulic Spool Valve YE45 has a maximum operating (working) pressure of 250 bar and a return pressure tolerance of up to 25 bar.

Can the Electrically Controlled Hydraulic Spool Valve YE45 operate with different electrical voltages or only 12V DC?

Electrically Controlled Hydraulic Spool Valve YE45 is designed for 12V DC electrical control. The product description specifies 12V DC as the operating voltage, so use with other voltages is not supported without appropriate modification (e.g., a compatible voltage converter or coil replacement) and could risk malfunction or damage. If you need operation at a different voltage, consult the manufacturer for approved alternatives or accessory options to ensure safe, reliable performance.

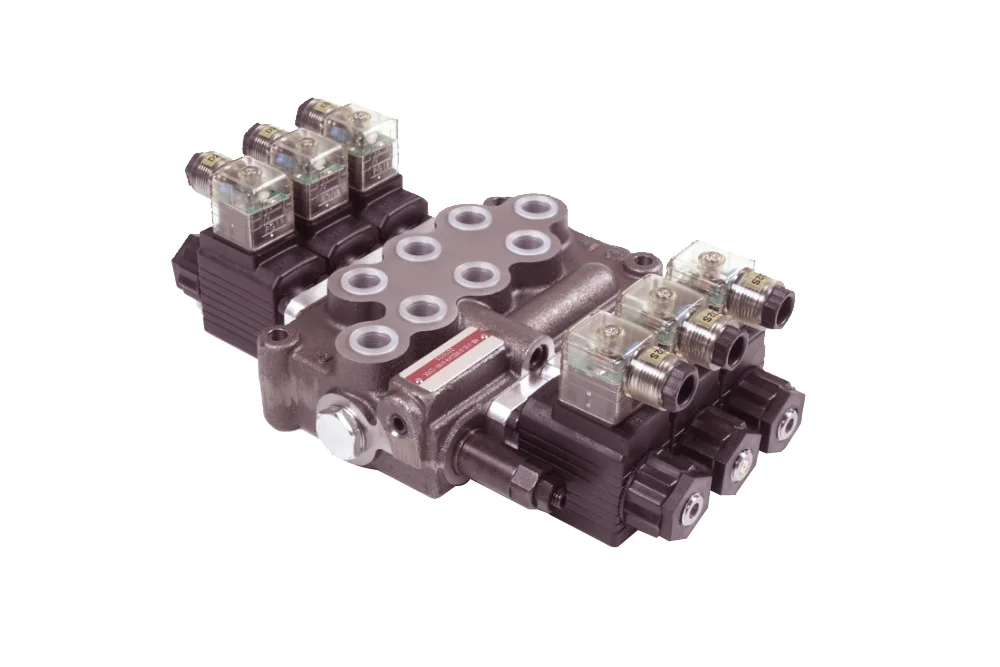

Electrically Controlled Hydraulic Spool Valve YE45

All products, Directional control valves/

Additional information

Maximum operating temperature [°C]	80
Minimum operating temperature [°C]	-20
Standard length [m]	2

The electrically controlled monoblock sliding valve distributor YE45 with centering springs is a robust and reliable solution for modern hydraulic systems used in cranes, lifts, construction machinery, and agricultural equipment. Its durable cast iron body combined with hardened steel sliders ensures long-lasting performance even under demanding conditions, while NBR sealing guarantees excellent resistance to wear and fluid leakage. The unit comes standard with a type C safety valve preset at 140 bar and type 1 sliders, offering both safety and efficiency in operation. With a maximum working pressure of 250 bar and a return pressure tolerance of up to 25 bar, the YE45 delivers consistent power and control. Designed for 12V DC electrical control and capable of operating in temperatures ranging from -20°C to +80°C, this distributor provides versatile functionality and dependable performance across a wide range of applications, making it an ideal choice for professionals seeking reliability, safety, and efficiency in hydraulic control systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TL-YE45-1-C-1	Hydraulic distributor YE45, 1-section with relief valve	-	250	In stock	Enquiry
TL-YE45-2-C-11	Hydraulic distributor YE45, 2-section with relief valve	-	250	In stock	Enquiry
TL-YE45-3-C-111	Hydraulic distributor YE45, 3-section with relief valve	-	250	In stock	Enquiry
TL-YE45-4-C-1111	Hydraulic distributor YE45, 4-section with relief valve	-	250	In stock	Enquiry
TL-YE45-5-C-11111	Hydraulic distributor YE45, 5-section with relief valve	-	250	In stock	Enquiry
TL-YE45-6-C-111111	Hydraulic distributor YE45, 6-section with relief valve	-	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The electrically controlled monoblock sliding valve distributor YE45 with centering springs is a robust and reliable solution for modern hydraulic systems used in cranes, lifts, construction machinery, and agricultural equipment. Its durable cast iron body combined with hardened steel sliders ensures long-lasting performance even under demanding conditions, while NBR sealing guarantees excellent resistance to wear and fluid leakage. The unit comes standard with a type C safety valve preset at 140 bar and type 1 sliders, offering both safety and efficiency in operation. With a maximum working pressure of 250 bar and a return pressure tolerance of up to 25 bar, the YE45 delivers consistent power and control. Designed for 12V DC electrical control and capable of operating in temperatures ranging from -20°C to +80°C, this distributor provides versatile functionality and dependable performance across a wide range of applications, making it an ideal choice for professionals seeking reliability, safety, and efficiency in hydraulic control systems.
