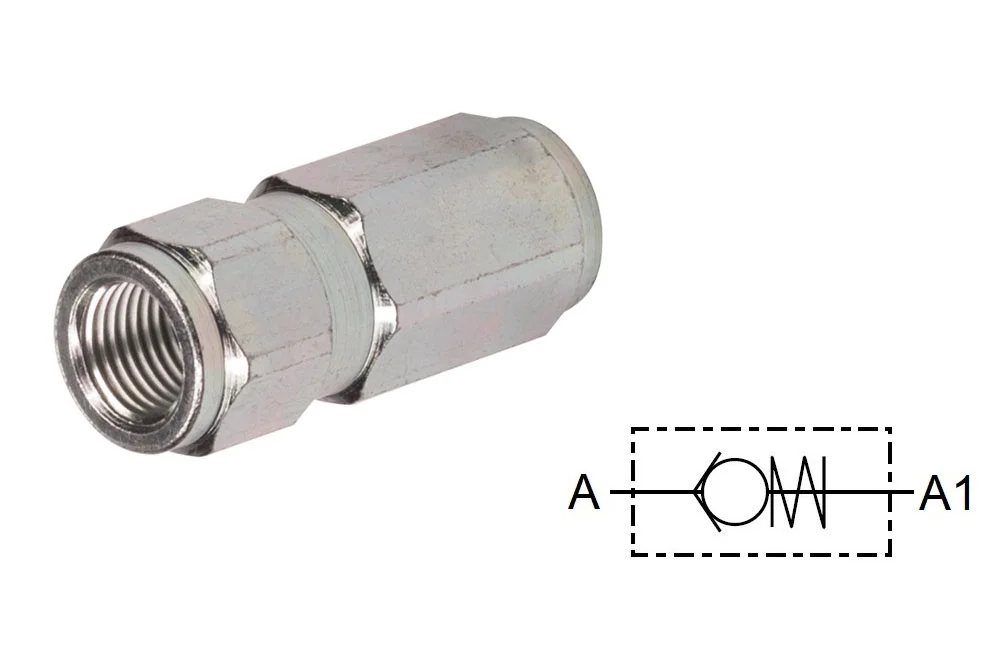

Hydraulic and industrial valve check o highest pressure working (up to 700 bar), type R-4000

Additional information

Material

CS – steel (cast iron)

Valve check type R-4000 designed and made in accordance with the directive PED 2014/68/UE. intended for high-pressure installation hydraulic and industrial. closes Flow rate medium in one direction and opens free Flow rate medium in direction opposite. standard pressure opening: 0.5 bar (available also 1, 2, 3 and 5 bar). permissible direction flow: A → A1. Material: steel galvanized, brass nickel-plated, steel stainless AISI 316L. sealing: NBR – standard RA, RL; Viton (FKM) – standard RZ; EPDM – option. Operating temperature: od -20°C up to +100°C (NBR); od -20°C up to +200°C (Viton); od -40°C up to +150°C (EPDM).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
GR-RA-0400000Check valve R-4000 1/8" BSP female-700In stock0 €
Enquiry
GR-RA-0401000Check valve R-4000 1/4" BSP female-700In stock0 €
Enquiry
GR-RA-0402000Check valve R-4000 3/8" BSP female-700In stock0 €
Enquiry
GR-RA-0403000Check valve R-4000 1/2" BSP female-500In stock0 €
Enquiry
GR-RA-0404000Check valve R-4000 3/4" BSP female-500In stock0 €
Enquiry
GR-RA-0405000Check valve R-4000 1" BSP female-500In stock0 €
Enquiry
GR-RL-0400000Check valve R-4000 1/8" BSP female, brass, seal NBR-400In stock0 €
Enquiry
GR-RL-0401000Check valve R-4000 1/4" BSP female, brass, seal NBR-400In stock0 €
Enquiry
GR-RL-0402000Check valve R-4000 3/8" BSP female, brass, seal NBR-400In stock0 €
Enquiry
GR-RL-0403000Check valve R-4000 1/2" BSP female, brass, seal NBR-250In stock0 €
Enquiry
GR-RL-0404000Check valve R-4000 3/4" BSP female, brass, seal NBR-250In stock0 €
Enquiry
GR-RL-0405000Check valve R-4000 1" BSP female, brass, seal NBR-250In stock0 €
Enquiry
GR-RZ-04000V0Check valve R-4000 1/8" BSP female, AISI 316L, seal Viton-400In stock0 €
Enquiry
GR-RZ-04010V0Check valve R-4000 1/4" BSP female, AISI 316L, seal Viton-400In stock0 €
Enquiry
GR-RZ-04020V0Check valve R-4000 3/8" BSP female, AISI 316L, seal Viton-400In stock0 €
Enquiry
GR-RZ-04030V0Check valve R-4000 1/2" BSP female, AISI 316L, seal Viton-250In stock0 €
Enquiry
GR-RZ-04040V0Check valve R-4000 3/4" BSP female, AISI 316L, seal Viton-250In stock0 €
Enquiry
GR-RZ-04050V0Check valve R-4000 1" BSP female, AISI 316L, seal Viton-250In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Valve check type R-4000 designed and made in accordance with the directive PED 2014/68/UE. intended for high-pressure installation hydraulic and industrial. closes Flow rate medium in one direction and opens free Flow rate medium in direction opposite. standard pressure opening: 0.5 bar (available also 1, 2, 3 and 5 bar). permissible direction flow: A → A1. Material: steel galvanized, brass nickel-plated, steel stainless AISI 316L. sealing: NBR – standard RA, RL; Viton (FKM) – standard RZ; EPDM – option. Operating temperature: od -20°C up to +100°C (NBR); od -20°C up to +200°C (Viton); od -40°C up to +150°C (EPDM).
