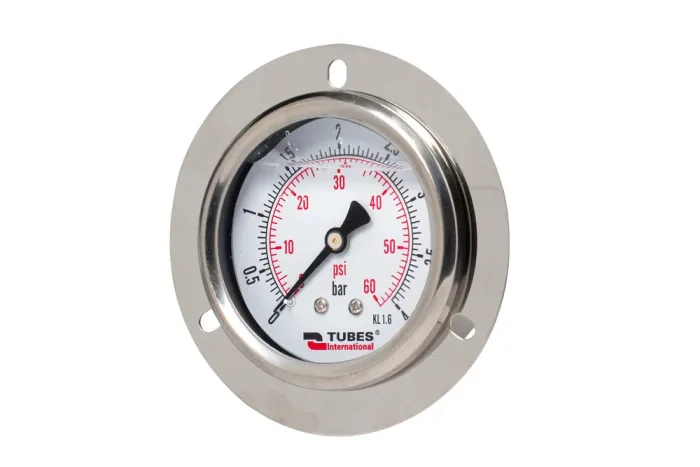

63 mm Glycerine Pressure Gauge, Rear Mount, Model FM 633

Additional information

Maximum operating temperature [°C]

60

The universal industrial pressure gauge FM 633 with a 63 mm dial and rear connection is a reliable measuring instrument designed in compliance with EN 837-1 standards, offering durability and precision in demanding industrial environments. Its robust AISI 304 stainless steel housing with glycerin filling ensures excellent resistance to shocks, vibrations, humidity, and sudden pressure surges, while also protecting internal components from condensation and corrosion. The glycerin filling stabilizes pointer movement, reduces wear of moving parts, and guarantees consistent readings even under pulsating pressure conditions. Ideal for monitoring low-viscosity liquids, vapors, and gases that do not crystallize or corrode copper alloys, this gauge provides dependable performance across a wide range of applications. With an accuracy class of 1.6, a rear GZ 1/4″ BSP connection, and a durable plexiglass window, it combines precision with long-lasting reliability. Suitable for ambient temperatures from -40°C to +65°C and media up to +60°C, the FM 633 is the perfect choice for industries seeking a compact, efficient, and robust solution for everyday pressure measurement tasks.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
FM-633-00063 mm built-in manometer, -1 to 0 bar 1/4" BSP--In stock
Enquiry
FM-633-00163 mm built-in pressure gauge, 0 to 1 bar 1/4" BSP--In stock
Enquiry
FM-633-00263 mm built-in pressure gauge, 0 to 2.5 bar 1/4" BSP--In stock
Enquiry
FM-633-00463 mm built-in pressure gauge, 0 to 4 bar 1/4" BSP--In stock
Enquiry
FM-633-00663 mm built-in pressure gauge, 0 to 6 bar 1/4" BSP--In stock
Enquiry
FM-633-01063 mm built-in pressure gauge, 0 to 10 bar 1/4" BSP--In stock
Enquiry
FM-633-01263 mm built-in pressure gauge, 0 to 12 bar 1/4" BSP--In stock
Enquiry
FM-633-01663mm panel-mounted pressure gauge, 0 to 16 bar 1/4" BSP--In stock
Enquiry
FM-633-02063 mm built-in pressure gauge, 0 to 20 bar 1/4" BSP--In stock
Enquiry
FM-633-02563 mm built-in pressure gauge, 0 to 25 bar 1/4" BSP--In stock
Enquiry
FM-633-04063 mm built-in pressure gauge, 0 to 40 bar 1/4" BSP--In stock
Enquiry
FM-633-06063 mm built-in pressure gauge, 0 to 60 bar 1/4" BSP--In stock
Enquiry
FM-633-10063 mm built-in pressure gauge, 0 to 100 bar 1/4" BSP--In stock
Enquiry
FM-633-16063mm panel-mounted pressure gauge, 0 to 160 bar 1/4" BSP--In stock
Enquiry
FM-633-25063 mm built-in pressure gauge, 0 to 250 bar 1/4" BSP--In stock
Enquiry
FM-633-31563 mm built-in pressure gauge, 0 to 315 bar 1/4" BSP--In stock
Enquiry
FM-633-40063 mm panel-mounted pressure gauge, 0 to 400 bar 1/4" BSP--In stock
Enquiry
FM-633-60063 mm built-in pressure gauge, 0 to 600 bar 1/4" BSP--In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

The universal industrial pressure gauge FM 633 with a 63 mm dial and rear connection is a reliable measuring instrument designed in compliance with EN 837-1 standards, offering durability and precision in demanding industrial environments. Its robust AISI 304 stainless steel housing with glycerin filling ensures excellent resistance to shocks, vibrations, humidity, and sudden pressure surges, while also protecting internal components from condensation and corrosion. The glycerin filling stabilizes pointer movement, reduces wear of moving parts, and guarantees consistent readings even under pulsating pressure conditions. Ideal for monitoring low-viscosity liquids, vapors, and gases that do not crystallize or corrode copper alloys, this gauge provides dependable performance across a wide range of applications. With an accuracy class of 1.6, a rear GZ 1/4″ BSP connection, and a durable plexiglass window, it combines precision with long-lasting reliability. Suitable for ambient temperatures from -40°C to +65°C and media up to +60°C, the FM 633 is the perfect choice for industries seeking a compact, efficient, and robust solution for everyday pressure measurement tasks.
