What are the available inlet and outlet connection sizes for the Compressed Air Filter with Reducer FR 300, FRL Connection, SKILLAIR® Series?

Compressed Air Filter with Reducer FR 300, FRL Connection, SKILLAIR® Series — available inlet and outlet connection sizes: BSP 1/2", BSP 3/4" and BSP 1". Additionally, there is a BSP 1/8" port for pressure gauge installation.

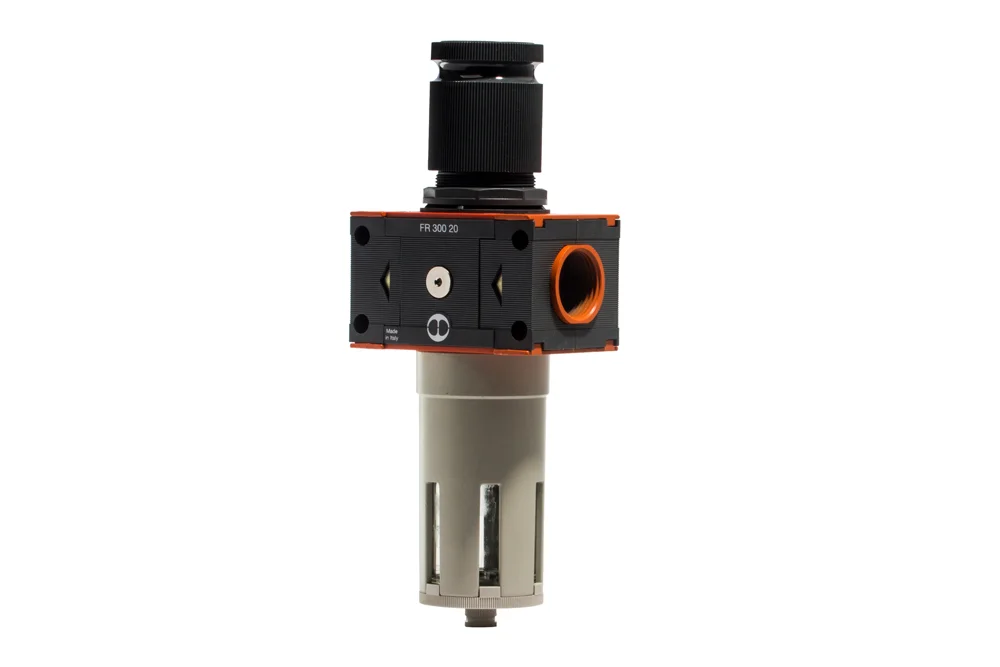

Compressed Air Filter with Reducer FR 300, FRL Connection, SKILLAIR® Series

Q: What is the condensate discharge option for the Compressed Air Filter with Reducer FR 300, FRL Connection, SKILLAIR® Series — manual, semi-automatic (RMSA), or fully automatic (RA, SAC)?

The condensate discharge options for the Compressed Air Filter with Reducer FR 300, FRL Connection, SKILLAIR® Series are: manual, semi-automatic (RMSA), or fully automatic (RA, SAC).

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50
Standard length [m]	10, 50

The SKILLAIR® FR series filter regulator combines efficient air filtration with precise pressure control, ensuring clean and stable airflow for demanding pneumatic applications. Designed in size 300, it operates with an output pressure range of 0–2, 0–4, 0–8, or 0–12 bar, while handling supply pressures up to 13 bar depending on the discharge type. With a robust construction suitable for operating temperatures up to +50°C, it offers versatile connections from BSP 1/2″ to 1″ and a BSP 1/8″ port for pressure gauge installation. The unit provides flexible condensate discharge options—manual, semi-automatic (RMSA), or fully automatic (RA, SAC)—to adapt to different system requirements. Delivering an impressive flow rate of 5600 l/min at 6 bar with Δp = 1 bar, this filter regulator guarantees reliable performance, reduced downtime, and optimized efficiency, making it an ideal solution for industries seeking durability, precision, and consistent compressed air quality.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
MW-4483001	Filter - reducer FR 300 1/2 5 04 RMSA (SKILLAIR)	-	-
MW-4483004	Filter - reducer FR 300 1/2 5 08 RMSA (SKILLAIR)	-	-
MW-4483005	Filter - reducer FR 300 1/2 20 08 RMSA (SKILLAIR)	-	-
MW-4483006	Filter - reducer FR 300 1/2 50 08 RMSA (SKILLAIR)	-	-
MW-4483007	Filter - reducer FR 300 1/2 5 012 RMSA (SKILLAIR)	-	-
MW-4483008	Filter - reducer FR 300 1/2 20 012 RMSA (SKILLAIR)	-	-
MW-4483009	Filter - reducer FR 300 1/2 50 012 RMSA (SKILLAIR)	-	-
MW-4483010	Filter - reducer FR 300 1/2 5 04 RA (SKILLAIR)	-	-
MW-4483011	Filter - reducer FR 300 1/2 20 04 RA (SKILLAIR)	-	-
MW-4483012	Filter - reducer FR 300 1/2 50 04 RA (SKILLAIR)	-	-
MW-4483013	Filter - reducer FR 300 1/2 5 08 RA (SKILLAIR)	-	-
MW-4483014	Filter - reducer FR 300 1/2 20 08 RA (SKILLAIR)	-	-
MW-4483015	Filter - reducer FR 300 1/2 50 08 RA (SKILLAIR)	-	-
MW-4483016	Filter - reducer FR 300 1/2 5 012 RA (SKILLAIR)	-	-
MW-4483017	Filter - reducer FR 300 1/2 20 012 RA (SKILLAIR)	-	-
MW-4483018	Filter - reducer FR 300 1/2 50 012 RA (SKILLAIR)	-	-
MW-4483020	Filter - reducer FR 300 1/2 20 02 RMSA (SKILLAIR)	-	-
MW-4583001	Filter - reducer FR 300 3/4 5 04 RMSA (SKILLAIR)	-	-
MW-4583002	Filter - reducer FR 300 3/4 20 04 RMSA (SKILLAIR)	-	-
MW-4583003	Filter - reducer FR 300 3/4 50 04 RMSA (SKILLAIR)	-	-
MW-4583004	Filter - reducer FR 300 3/4 5 08 RMSA (SKILLAIR)	-	-
MW-4583005	Filter - reducer FR 300 3/4 20 08 RMSA (SKILLAIR)	-	-
MW-4583006	Filter - reducer FR 300 3/4 50 08 RMSA (SKILLAIR)	-	-
MW-4583007	Filter - reducer FR 300 3/4 5 012 RMSA (SKILLAIR)	-	-
MW-4583008	Filter - reducer FR 300 3/4 20 012 RMSA (SKILLAIR)	-	-
MW-4583009	Filter - reducer FR 300 3/4 50 012 RMSA (SKILLAIR)	-	-
MW-4583010	Filter - reducer FR 300 3/4 5 04 RA (SKILLAIR)	-	-
MW-4583011	Filter - reducer FR 300 3/4 20 04 RA (SKILLAIR)	-	-
MW-4583012	Filter - reducer FR 300 3/4 50 04 RA (SKILLAIR)	-	-
MW-4583013	Filter - reducer FR 300 3/4 5 08 RA (SKILLAIR)	-	-
MW-4583014	Filter - reducer FR 300 3/4 20 08 RA (SKILLAIR)	-	-
MW-4583015	Filter - reducer FR 300 3/4 50 08 RA (SKILLAIR)	-	-
MW-4583016	Filter - reducer FR 300 3/4 5 012 RA (SKILLAIR)	-	-
MW-4583017	Filter - reducer FR 300 3/4 20 012 RA (SKILLAIR)	-	-
MW-4583018	Filter - reducer FR 300 3/4 50 012 RA (SKILLAIR)	-	-
MW-4583019	Filter - reducer FR 300 3/4 5 02 RMSA (SKILLAIR)	-	-
MW-4683004	Filter - reducer FR 300 1 5 08 RMSA (SKILLAIR)	-	-
MW-4683005	Filter - reducer FR 300 1 20 08 RMSA (SKILLAIR)	-	-
MW-4683006	Filter - reducer FR 300 1 50 08 RMSA (SKILLAIR)	-	-
MW-4683007	Filter - reducer FR 300 1 5 012 RMSA (SKILLAIR)	-	-
MW-4683008	Filter - reducer FR 300 1 20 012 RMSA (SKILLAIR)	-	-
MW-4683009	Filter - reducer FR 300 1 50 012 RMSA (SKILLAIR)	-	-
MW-4683013	Filter - reducer FR 300 1 5 08 RA (SKILLAIR)	-	-
MW-4683014	Filter - reducer FR 300 1 20 08 RA (SKILLAIR)	-	-
MW-4683015	Filter - reducer FR 300 1 50 08 RA (SKILLAIR)	-	-
MW-4683016	Filter - reducer FR 300 1 5 012 RA (SKILLAIR)	-	-
MW-4683017	Filter - reducer FR 300 1 20 012 RA (SKILLAIR)	-	-
MW-4683018	Filter - reducer FR 300 1 50 012 RA (SKILLAIR)	-	-
MW-4683022	Filter - reducer FR 300 1 5 02 RA (SKILLAIR)	-	-

The SKILLAIR® FR series filter regulator combines efficient air filtration with precise pressure control, ensuring clean and stable airflow for demanding pneumatic applications. Designed in size 300, it operates with an output pressure range of 0–2, 0–4, 0–8, or 0–12 bar, while handling supply pressures up to 13 bar depending on the discharge type. With a robust construction suitable for operating temperatures up to +50°C, it offers versatile connections from BSP 1/2″ to 1″ and a BSP 1/8″ port for pressure gauge installation. The unit provides flexible condensate discharge options—manual, semi-automatic (RMSA), or fully automatic (RA, SAC)—to adapt to different system requirements. Delivering an impressive flow rate of 5600 l/min at 6 bar with Δp = 1 bar, this filter regulator guarantees reliable performance, reduced downtime, and optimized efficiency, making it an ideal solution for industries seeking durability, precision, and consistent compressed air quality.
