FR Compressed Air Filter with Reducer – NEW DEAL Series

Q: What maintenance schedule is recommended for the FR Compressed Air Filter with Reducer – NEW DEAL Series to ensure reliable operation and condensate removal?

FR Compressed Air Filter with Reducer – NEW DEAL Series maintenance schedule to ensure reliable operation and condensate removal: - Daily/Weekly: Visually inspect the unit for leaks, damage and proper mounting. Check pressure gauge reading and verify regulator holds set output pressure. Empty manual condensate drains daily (if fitted). - Weekly/Monthly: Check filter bowl for contamination and water level; drain condensate via semi-automatic (RMSA) drain and verify operation, or confirm functionality of fully automatic (SAC) drain. Inspect seals and threads for signs of wear or leakage. - Monthly/Quarterly: Replace or clean filter element depending on contamination level and operating conditions. Verify regulator piston movement is smooth and pressure adjustment works across the 0–8/0–12 bar range. Test RA drain operation up to rated 10 bar (where applicable). - Annually: Perform full service: replace filter element and seals, clean bowl and housing, lubricate moving parts if required, and pressure-test the assembly up to operating limits (supply up to 18 bar). Inspect BSP threads and gauge port (1/8") for tightness and corrosion. - As-needed: Shorten intervals in harsh or high-moisture environments, or when flow approaches rated values (700–2500 l/min) and Δp increases. Immediately service if pressure drop grows, condensate removal fails, or regulator becomes unstable. Follow manufacturer’s detailed instructions for drain type (manual, RMSA, SAC) and observe maximum operating temperature (+50°C).

Q: How often should I inspect and replace the filter element of the FR Compressed Air Filter with Reducer – NEW DEAL Series to maintain optimal air quality and regulator performance?

For reliable air quality and consistent regulator performance, inspect the filter element of the FR Compressed Air Filter with Reducer – NEW DEAL Series at least every 3 months under normal operating conditions. Increase inspection frequency to monthly if your compressed air system operates in harsh/dusty environments, shows elevated condensate levels, or supplies critical pneumatic equipment. Replace the element when you observe any of the following: visible contamination, significant pressure drop across the unit, reduced flow (below expected 700–2500 l/min at 6 bar depending on size), or after 6–12 months of service as a preventive measure in typical conditions. For units with heavy duty use or frequent condensate (especially when using manual drains), consider replacing every 3–6 months. Always follow pressure and temperature limits (+50°C, supply up to 18 bar) and verify proper condensate drainage (manual, RMSA, or SAC) to prolong element life.

Air preparation elements (FRL), All products/

FR Compressed Air Filter with Reducer – NEW DEAL Series

Additional information

Maximum operating temperature [°C]	50
Standard length [m]	10, 100

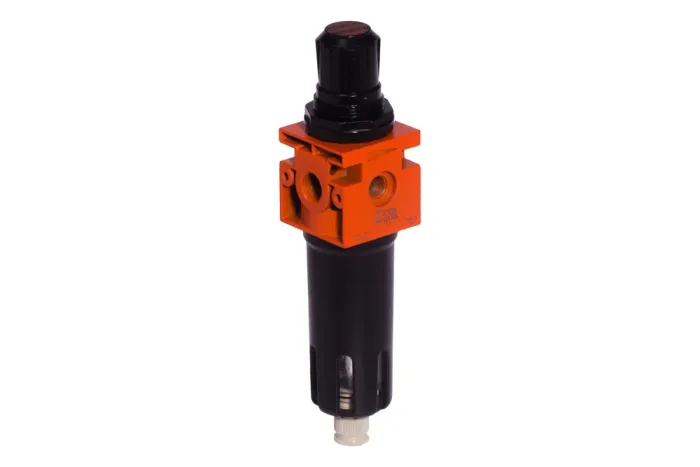

The NEW DEAL series filter with integrated piston-type pressure regulator ensures exceptional reliability and efficiency in compressed air systems, making it ideal for installation directly within the system or near actuating devices. Designed for versatile use, it offers wall mounting through dedicated housing holes and is available in sizes 1/4″, 3/8″, and 1/2″. With an adjustable output pressure range of 0–8 or 0–12 bar and a supply pressure capacity up to 18 bar (up to 10 bar for RA drain), it guarantees stable performance even under demanding conditions. The unit operates at temperatures up to +50°C and features BSP female thread connections (1/4″, 3/8″, 1/2″) along with a 1/8″ BSP port for pressure gauge installation. For maximum flexibility, it provides different condensate drain options: manual, semi-automatic (RMSA), or fully automatic (SAC). Delivering impressive flow rates of 700 l/min for 1/4″ and up to 2500 l/min for 3/8″ and 1/2″ at 6 bar inlet pressure (Δp = 1 bar), this filter-regulator combination is a reliable solution for maintaining clean, regulated air supply, ensuring long-lasting protection and optimal performance of pneumatic equipment.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-1225005	Filter - reducer FR 1/4 4 04 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1225029	Filter - reducer FR 1/4 4 08 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1225030	Filter - reducer FR 1/4 20 08 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1225032	Filter - reducer FR 1/4 50 08 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1225053	Filter - reducer FR 1/4 4 012 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1225054	Filter - reducer FR 1/4 20 012 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1225056	Filter - reducer FR 1/4 50 012 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1225070	Filter - reducer FR 1/4 20 02 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1225506	Filter - reducer FR 1/4 4 04 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1225509	Filter - reducer FR 1/4 4 08 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1225510	Filter - reducer FR 1/4 20 08 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1225511	Filter - reducer FR 1/4 50 08 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1225513	Filter - reducer FR 1/4 4 012 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1225514	Filter - reducer FR 1/4 20 012 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1225516	Filter - reducer FR 1/4 50 012 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1325029	Filter - reducer FR 3/8 4 08 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1325030	Filter - reducer FR 3/8 20 08 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1325032	Filter - reducer FR 3/8 50 08 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1325053	Filter - reducer FR 3/8 4 012 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1325054	Filter - reducer FR 3/8 20 012 RMSA TM TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1325056	Filter - reducer FR 3/8 50 012 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1325500	Filter - reducer FR 3/8 4 04 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1325509	Filter - reducer FR 3/8 4 08 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1325510	Filter - reducer FR 3/8 20 08 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1325512	Filter - reducer FR 3/8 50 08 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1325513	Filter - reducer FR 3/8 4 012 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1325514	Filter - reducer FR 3/8 20 012 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1325516	Filter - reducer FR 3/8 50 012 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1425005	Filter - reducer FR 1/2 4 04 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1425029	Filter - reducer FR 1/2 4 08 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1425030	Filter - reducer FR 1/2 20 08 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1425032	Filter - reducer FR 1/2 50 08 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1425033	Filter - reducer FR 1/2 4 08 RA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1425053	Filter - reducer FR 1/2 4 012 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1425054	Filter - reducer FR 1/2 20 012 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1425056	Filter - reducer FR 1/2 50 012 RMSA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1425058	Filter - reducer FR 1/2 20 012 RA TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1425509	Filter - reducer FR 1/2 4 08 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1425510	Filter - reducer FR 1/2 20 08 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1425512	Filter - reducer FR 1/2 50 08 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1425513	Filter - reducer FR 1/2 4 012 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1425514	Filter - reducer FR 1/2 20 012 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry
MW-1425516	Filter - reducer FR 1/2 50 012 SAC TMV (NEW DEAL)	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The NEW DEAL series filter with integrated piston-type pressure regulator ensures exceptional reliability and efficiency in compressed air systems, making it ideal for installation directly within the system or near actuating devices. Designed for versatile use, it offers wall mounting through dedicated housing holes and is available in sizes 1/4″, 3/8″, and 1/2″. With an adjustable output pressure range of 0–8 or 0–12 bar and a supply pressure capacity up to 18 bar (up to 10 bar for RA drain), it guarantees stable performance even under demanding conditions. The unit operates at temperatures up to +50°C and features BSP female thread connections (1/4″, 3/8″, 1/2″) along with a 1/8″ BSP port for pressure gauge installation. For maximum flexibility, it provides different condensate drain options: manual, semi-automatic (RMSA), or fully automatic (SAC). Delivering impressive flow rates of 700 l/min for 1/4″ and up to 2500 l/min for 3/8″ and 1/2″ at 6 bar inlet pressure (Δp = 1 bar), this filter-regulator combination is a reliable solution for maintaining clean, regulated air supply, ensuring long-lasting protection and optimal performance of pneumatic equipment.
