Can the SYNTESI® FR Series Compressed Air Filter with Integrated Reducer be mounted in any orientation and still maintain proper condensate drainage?

Can the SYNTESI® FR Series Compressed Air Filter with Integrated Reducer be mounted in any orientation and still maintain proper condensate drainage? The SYNTESI® FR Series Compressed Air Filter with Integrated Reducer offers versatile condensate drainage options (manual, semi-automatic RMSA, or fully automatic RA). However, correct condensate evacuation depends on proper orientation and installation of the drain. For reliable drainage and to avoid liquid retention or impaired drain operation, mount the unit in an orientation that allows the drain outlet to be lower than the bowl and unobstructed. Follow manufacturer guidance for drain type placement and piping (avoid upward runs immediately at the drain, allow a short vertical drop to the drain outlet). Improper mounting (e.g., inverted or with the drain above the bowl) can prevent effective condensate removal, especially for semi‑automatic or automatic drains. In summary: the unit can be mounted with some flexibility, but ensure the drain is positioned lower than the bowl and piping permits free drainage to maintain proper condensate removal.

Does the SYNTESI® FR Series Compressed Air Filter with Integrated Reducer require specific maintenance intervals for the condensate drain depending on operating pressure and temperature?

The SYNTESI® FR Series Compressed Air Filter with Integrated Reducer does not mandate different fixed maintenance intervals for the condensate drain based solely on operating pressure or temperature in the provided description. However, since the unit is rated for supply pressures up to 15 bar (SY1) and 13 bar (SY2) and an operating temperature range of -10°C to +50°C, practical maintenance frequency should be adjusted by the user according to actual working conditions: higher pressures, elevated temperatures, heavier condensate loads or more contaminated air typically require more frequent drain checks and servicing. The product offers manual, semi-automatic (RMSA) and fully automatic (RA) condensate drain options to accommodate varying duty cycles and maintenance regimes—automatic drains reduce the need for frequent manual intervention in demanding conditions. Follow your plant’s standard preventive maintenance practices and monitor condensate accumulation; consult the manufacturer’s detailed manual or technical support for recommended schedules tailored to your specific application.

SYNTESI® FR Series Compressed Air Filter with Integrated Reducer

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50
Minimum operating temperature [°C]	-10
Standard length [m]	152.4

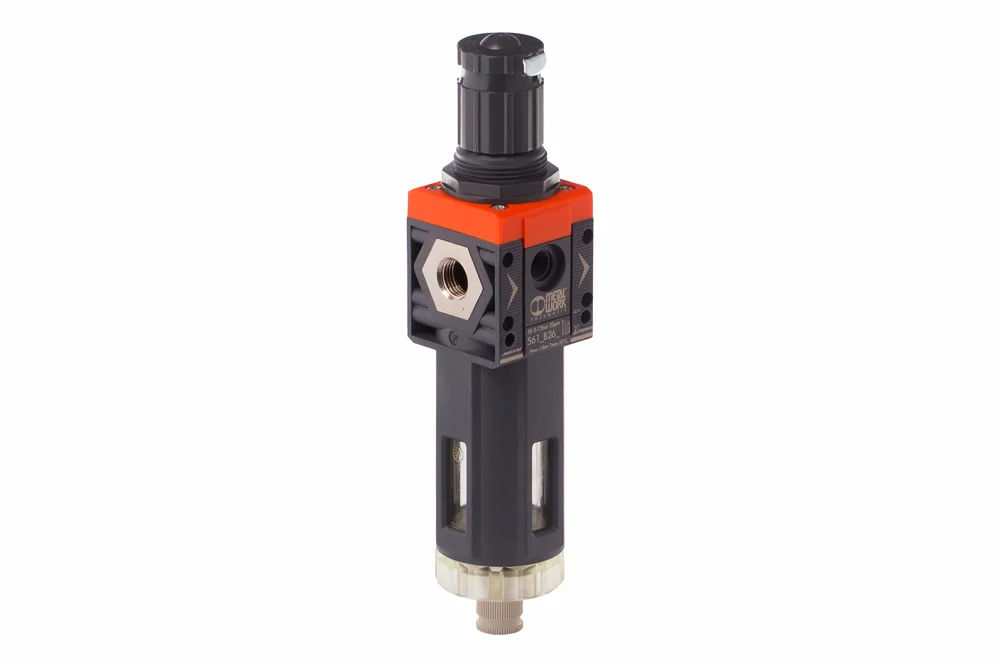

The SYNTESI® series filtroregulator is a compact and efficient solution that combines a high-performance air filter with a precise pressure reducing valve, ensuring clean and stable airflow for demanding pneumatic applications. Available in sizes SY1 and SY2 with BSP female connections from 1/8″ up to 1″, it offers flexibility for a wide range of installations. Designed to handle supply pressures up to 15 bar for SY1 and 13 bar for SY2, it provides adjustable output pressure ranges of 0–8 or 0–12 bar, making it suitable for both delicate and high-pressure systems. With an operating temperature range from -10°C to +50°C, the unit guarantees reliable performance in diverse working environments. The filtroregulator is equipped with additional connections for pressure gauges or fittings (1/8″ for SY1 and 1/4″ for SY2), as well as versatile condensate drain options: manual, semi-automatic (RMSA), or fully automatic (RA). Delivering impressive flow rates from 1300 l/min up to 7400 l/min depending on size and connection, the SYNTESI® filtroregulator ensures optimal efficiency, reduced downtime, and extended equipment life, making it the ideal choice for industries that demand precision, durability, and consistent air quality.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-5611B141	Filter - reducer FR SY1 1/8 5 08 RMSA	-	-	In stock	Enquiry
MW-5611B161	Filter - reducer FR SY1 1/8 5 012 RMSA	-	-	In stock	Enquiry
MW-5611B241	Filter - reducer FR SY1 1/8 20 08 RMSA	-	-	In stock	Enquiry
MW-5611B261	Filter - reducer FR SY1 1/8 20 012 RMSA	-	-	In stock	Enquiry
MW-5611B441	Filter - reducer FR SY1 1/8 5 08 RA	-	-	In stock	Enquiry
MW-5611B461	Filter - reducer FR SY1 1/8 5 012 RA	-	-	In stock	Enquiry
MW-5611B541	Filter - reducer FR SY1 1/8 20 08 RA	-	-	In stock	Enquiry
MW-5611B561	Filter - reducer FR SY1 1/8 20 012 RA	-	-	In stock	Enquiry
MW-5612B142	Filter - reducer FR SY1 1/4 5 08 RMSA	-	-	In stock	Enquiry
MW-5612B162	Filter - reducer FR SY1 1/4 5 012 RMSA	-	-	In stock	Enquiry
MW-5612B242	Filter - reducer FR SY1 1/4 20 08 RMSA	-	-	In stock	Enquiry
MW-5612B262	Filter - reducer FR SY1 1/4 20 012 RMSA	-	-	In stock	Enquiry
MW-5612B442	Filter - reducer FR SY1 1/4 5 08 RA	-	-	In stock	Enquiry
MW-5612B462	Filter - reducer FR SY1 1/4 5 012 RA	-	-	In stock	Enquiry
MW-5612B542	Filter - reducer FR SY1 1/4 20 08 RA	-	-	In stock	Enquiry
MW-5612B562	Filter - reducer FR SY1 1/4 20 012 RA	-	-	In stock	Enquiry
MW-5613B143	Filter - reducer FR SY1 3/8 5 08 RMSA	-	-	In stock	Enquiry
MW-5613B163	Filter - reducer FR SY1 3/8 5 012 RMSA	-	-	In stock	Enquiry
MW-5613B243	Filter - reducer FR SY1 3/8 20 08 RMSA	-	-	In stock	Enquiry
MW-5613B263	Filter - reducer FR SY1 3/8 20 012 RMSA	-	-	In stock	Enquiry
MW-5613B443	Filter - reducer FR SY1 3/8 5 08 RA	-	-	In stock	Enquiry
MW-5613B463	Filter - reducer FR SY1 3/8 5 012 RA	-	-	In stock	Enquiry
MW-5613B543	Filter - reducer FR SY1 3/8 20 08 RA	-	-	In stock	Enquiry
MW-5613B563	Filter - reducer FR SY1 3/8 20 012 RA	-	-	In stock	Enquiry
MW-5623B143	Filter - reducer FR SY2 3/8 5 08 RMSA	-	-	In stock	Enquiry
MW-5623B163	Filter - reducer FR SY2 3/8 5 012 RMSA	-	-	In stock	Enquiry
MW-5623B243	Filter - reducer FR SY2 3/8 20 08 RMSA	-	-	In stock	Enquiry
MW-5623B263	Filter - reducer FR SY2 3/8 20 012 RMSA	-	-	In stock	Enquiry
MW-5623B443	Filter - reducer FR SY2 3/8 5 08 RA	-	-	In stock	Enquiry
MW-5623B463	Filter - reducer FR SY2 3/8 5 012 RA	-	-	In stock	Enquiry
MW-5623B543	Filter - reducer FR SY2 3/8 20 08 RA	-	-	In stock	Enquiry
MW-5623B563	Filter - reducer FR SY2 3/8 20 012 RA	-	-	In stock	Enquiry
MW-5624B144	Filter - reducer FR SY2 1/2 5 08 RMSA	-	-	In stock	Enquiry
MW-5624B164	Filter - reducer FR SY2 1/2 5 012 RMSA	-	-	In stock	Enquiry
MW-5624B244	Filter - reducer FR SY2 1/2 20 08 RMSA	-	-	In stock	Enquiry
MW-5624B264	Filter - reducer FR SY2 1/2 20 012 RMSA	-	-	In stock	Enquiry
MW-5624B444	Filter - reducer FR SY2 1/2 5 08 RA	-	-	In stock	Enquiry
MW-5624B464	Filter - reducer FR SY2 1/2 5 012 RA	-	-	In stock	Enquiry
MW-5624B544	Filter - reducer FR SY2 1/2 20 08 RA	-	-	In stock	Enquiry
MW-5624B564	Filter - reducer FR SY2 1/2 20 012 RA	-	-	In stock	Enquiry
MW-5625B145	Filter - reducer FR SY2 3/4 5 08 RMSA	-	-	In stock	Enquiry
MW-5625B165	Filter - reducer FR SY2 3/4 5 012 RMSA	-	-	In stock	Enquiry
MW-5625B245	Filter - reducer FR SY2 3/4 20 08 RMSA	-	-	In stock	Enquiry
MW-5625B265	Filter - reducer FR SY2 3/4 20 12 RMSA	-	-	In stock	Enquiry
MW-5625B445	Filter - reducer FR SY2 3/4 5 08 RA	-	-	In stock	Enquiry
MW-5625B465	Filter - reducer FR SY2 3/4 5 012 RA	-	-	In stock	Enquiry
MW-5625B545	Filter - reducer FR SY2 3/4 20 08 RA	-	-	In stock	Enquiry
MW-5625B565	Filter - reducer FR SY2 3/4 20 012 RA	-	-	In stock	Enquiry
MW-5626B146	Filter - reducer FR SY2 1 5 08 RMSA	-	-	In stock	Enquiry
MW-5626B166	Filter - reducer FR SY2 1 5 012 RMSA	-	-	In stock	Enquiry
MW-5626B246	Filter - reducer FR SY2 1 20 08 RMSA	-	-	In stock	Enquiry
MW-5626B266	Filter - reducer FR SY2 1 20 012 RSMA	-	-	In stock	Enquiry
MW-5626B446	Filter - reducer FR SY2 1 5 08 RA	-	-	In stock	Enquiry
MW-5626B466	Filter - reducer FR SY2 1 5 012 RA	-	-	In stock	Enquiry
MW-5626B546	Filter - reducer FR SY2 1 20 08 RA	-	-	In stock	Enquiry
MW-5626B566	Filter - reducer FR SY2 1 20 012 RA	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The SYNTESI® series filtroregulator is a compact and efficient solution that combines a high-performance air filter with a precise pressure reducing valve, ensuring clean and stable airflow for demanding pneumatic applications. Available in sizes SY1 and SY2 with BSP female connections from 1/8″ up to 1″, it offers flexibility for a wide range of installations. Designed to handle supply pressures up to 15 bar for SY1 and 13 bar for SY2, it provides adjustable output pressure ranges of 0–8 or 0–12 bar, making it suitable for both delicate and high-pressure systems. With an operating temperature range from -10°C to +50°C, the unit guarantees reliable performance in diverse working environments. The filtroregulator is equipped with additional connections for pressure gauges or fittings (1/8″ for SY1 and 1/4″ for SY2), as well as versatile condensate drain options: manual, semi-automatic (RMSA), or fully automatic (RA). Delivering impressive flow rates from 1300 l/min up to 7400 l/min depending on size and connection, the SYNTESI® filtroregulator ensures optimal efficiency, reduced downtime, and extended equipment life, making it the ideal choice for industries that demand precision, durability, and consistent air quality.
