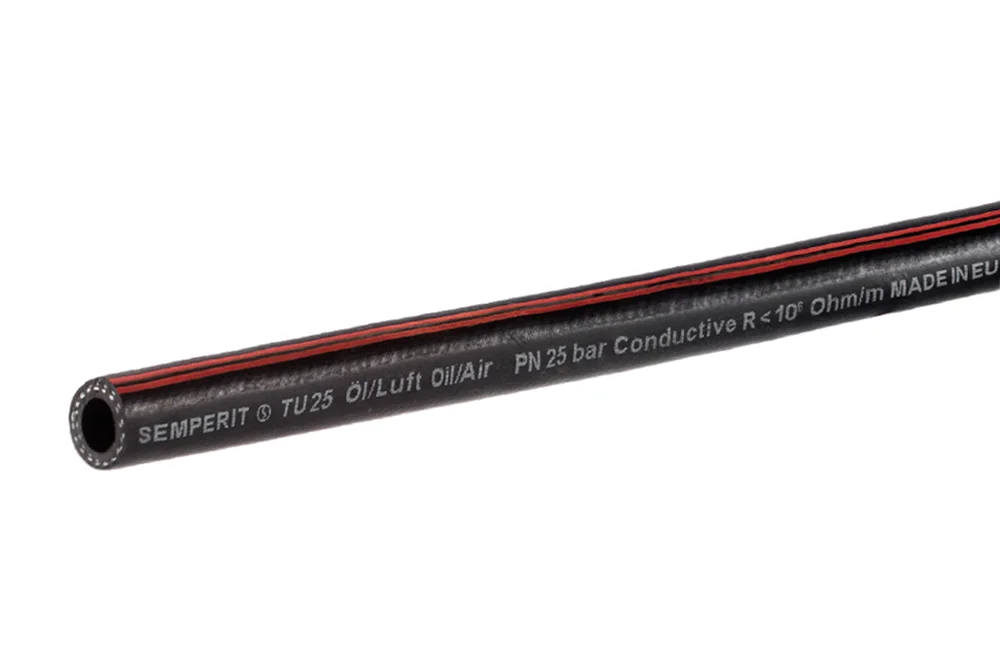

TU 25 Fuel Hose – Durable and Reliable Fuel Line Solution

Additional information

Material

NBR – nitrile rubber

Maximum operating temperature [°C]

80

Minimum operating temperature [°C]

-40

Vacuum resistance

no

Standard length [m]

100, 50

Reinforcement

textile braid

The flexible pressure hose is designed for demanding industrial applications, ensuring reliable performance with oils, mineral oils, unleaded gasoline (EN 228:2017), diesel fuel (EN 590:2010), heating oil (DIN 51 603 1÷5), and even compressed air. Its inner layer, made of smooth black NBR rubber, is antistatic with resistance below 10⁶ Ω/m (EN ISO 8031:2009), guaranteeing safe operation in environments where electrostatic discharge must be controlled. Reinforced with a durable textile braid, the hose offers a high safety factor of 3.15:1 and withstands slight vacuum conditions up to 0.5 bar. The outer layer, crafted from a robust NBR/EPDM rubber blend, provides exceptional resistance to oil, ozone, abrasion, and harsh weather, ensuring long-lasting durability even in outdoor or heavy-duty use. With a working pressure of 25 bar and an impressive operating temperature range from -40°C to +80°C, this hose delivers outstanding versatility and reliability, making it the ideal solution for industries seeking efficiency, safety, and durability in fluid and air transfer systems.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
SP-TU25-06Hose TU 25 6x14 mm625In stock
Enquiry
SP-TU25-08Hose TU 25 8x16 mm825In stock
Enquiry
SP-TU25-10Hose TU 25 10x18 mm1025In stock
Enquiry
SP-TU25-13Hose TU 25 13x21 mm1225In stock
Enquiry
SP-TU25-16Hose TU 25 16x25 mm1625In stock
Enquiry
SP-TU25-19Hose TU 25 19x29 mm2025In stock
Enquiry
SP-TU25-25Hose TU 25 25x36 mm2525In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

The flexible pressure hose is designed for demanding industrial applications, ensuring reliable performance with oils, mineral oils, unleaded gasoline (EN 228:2017), diesel fuel (EN 590:2010), heating oil (DIN 51 603 1÷5), and even compressed air. Its inner layer, made of smooth black NBR rubber, is antistatic with resistance below 10⁶ Ω/m (EN ISO 8031:2009), guaranteeing safe operation in environments where electrostatic discharge must be controlled. Reinforced with a durable textile braid, the hose offers a high safety factor of 3.15:1 and withstands slight vacuum conditions up to 0.5 bar. The outer layer, crafted from a robust NBR/EPDM rubber blend, provides exceptional resistance to oil, ozone, abrasion, and harsh weather, ensuring long-lasting durability even in outdoor or heavy-duty use. With a working pressure of 25 bar and an impressive operating temperature range from -40°C to +80°C, this hose delivers outstanding versatility and reliability, making it the ideal solution for industries seeking efficiency, safety, and durability in fluid and air transfer systems.

Additional information

Material

NBR – nitrile rubber

Maximum operating temperature [°C]

80

Minimum operating temperature [°C]

-40

Vacuum resistance

no

Standard length [m]

100, 50

Reinforcement

textile braid

Do you need a larger quantity of products or a bespoke quote?
