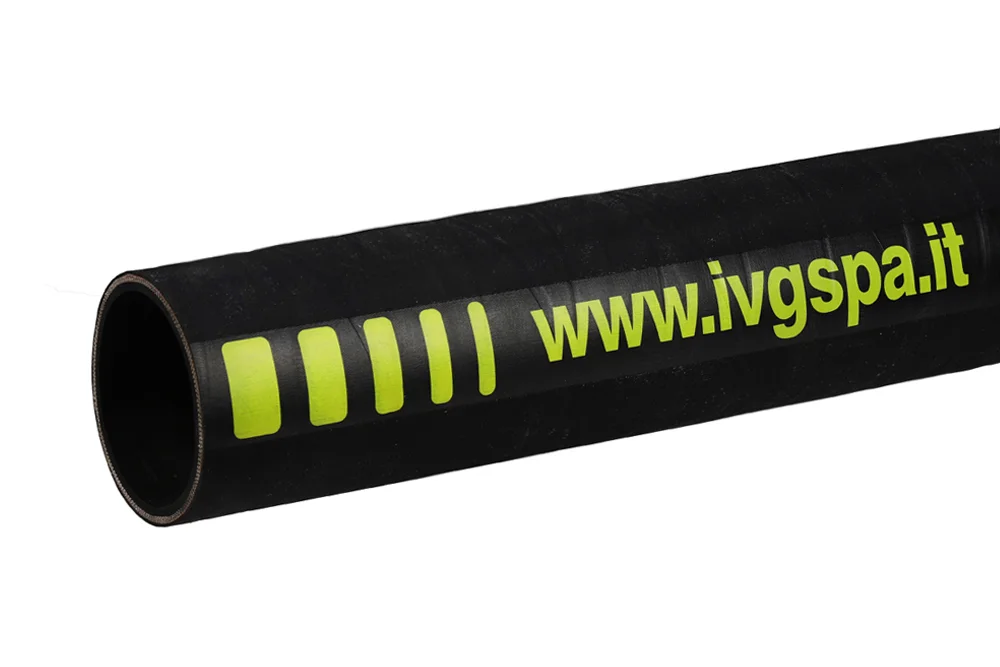

Hose delivery for operation on platforms drilling FUEL SOFTWALL
Strong hose delivery intended for conveying and handling oil petroleum, products petrochemical and cuttings drilling mixed with oil petroleum (up to 50% compounds aromatic). Layer inner with black, smooth blend rubber NBR/PVC. Reinforcement layers strength cord synthetic. It has copper wires ensuring electrical continuity between the hose ends – under a condition correct connection for ends. Layer outer with rubber chloroprene CR, flame-retardant, resistant to oil, water sea, abrasion and conditions atmospheric. Designed as a specialist OFFSHORE hose for use on drilling platforms. Widely used on platforms Sea North, with success used in use onshore. On special order available also versions o higher pressure working (20 bar, 27 bar), with specified force breaking at tension (2T for 2”, 4T for 3” and 7T for 4”, 5” and 6”) and approval type ABS ( American Bureau of Shipping Type Approval ) for complete line. Inner layer: black NBR rubber/PVC. Reinforcement: cord synthetic. Outer layer: black rubber CR. Working pressure: 17 bar. Operating temperature: od -20°C up to +90°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Strong hose delivery intended for conveying and handling oil petroleum, products petrochemical and cuttings drilling mixed with oil petroleum (up to 50% compounds aromatic). Layer inner with black, smooth blend rubber NBR/PVC. Reinforcement layers strength cord synthetic. It has copper wires ensuring electrical continuity between the hose ends – under a condition correct connection for ends. Layer outer with rubber chloroprene CR, flame-retardant, resistant to oil, water sea, abrasion and conditions atmospheric. Designed as a specialist OFFSHORE hose for use on drilling platforms. Widely used on platforms Sea North, with success used in use onshore. On special order available also versions o higher pressure working (20 bar, 27 bar), with specified force breaking at tension (2T for 2”, 4T for 3” and 7T for 4”, 5” and 6”) and approval type ABS ( American Bureau of Shipping Type Approval ) for complete line. Inner layer: black NBR rubber/PVC. Reinforcement: cord synthetic. Outer layer: black rubber CR. Working pressure: 17 bar. Operating temperature: od -20°C up to +90°C.
Additional information
| Material | PVC/NBR – a mixture of PVC and NBR |
|---|---|
| Maximum operating temperature [°C] | 90 |
| Minimum operating temperature [°C] | -20 |
| Vacuum resistance | no |
| Standard length [m] | 3, 60 / 120 |
| Reinforcement | synthetic braid |
