Quick coupling bolted hydraulic, socket or plug with a shut-off valve, with thread external metric DIN 2353, series light or heavy. body socket has additional O-ring, which prevents unscrewing quick coupling in situation pressure pulsating and vibration. allowed is tightening quick coupling under pressure max. 50 bar. Application: hydraulics power (oil hydraulic). Material quick coupling: steel galvanized. sealing: NBR (temperature use od -25°C up to +100°C). Working pressure: up to 450 bar (depending on size quick coupling). standard: ISO 14541. Safety factor 4:1. Flow rate has been stated for a drop pressure 3 bar.
List of product variants
Article number
Product variant name
DN
BAR
Availability
Price
Quantity
Actions
Catalogue
DP-PVV3-0614302

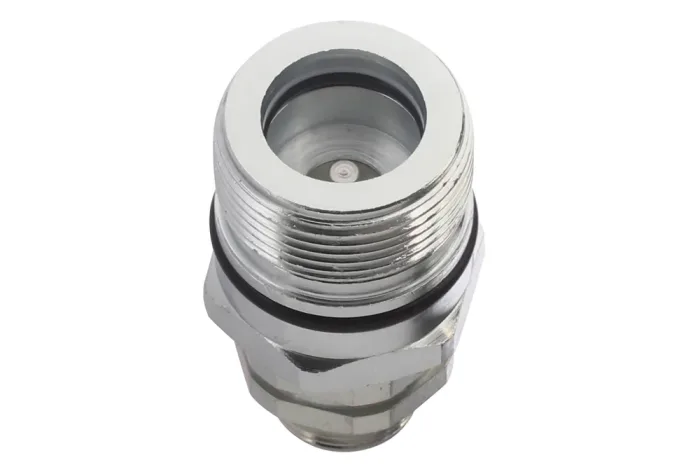

Socket screw-together DN6 with M14x1.5 male (8L), seal NBR
Quick coupling bolted hydraulic, socket or plug with a shut-off valve, with thread external metric DIN 2353, series light or heavy. body socket has additional O-ring, which prevents unscrewing quick coupling in situation pressure pulsating and vibration. allowed is tightening quick coupling under pressure max. 50 bar. Application: hydraulics power (oil hydraulic). Material quick coupling: steel galvanized. sealing: NBR (temperature use od -25°C up to +100°C). Working pressure: up to 450 bar (depending on size quick coupling). standard: ISO 14541. Safety factor 4:1. Flow rate has been stated for a drop pressure 3 bar.
Additional information
Material
CS – steel (cast iron)
