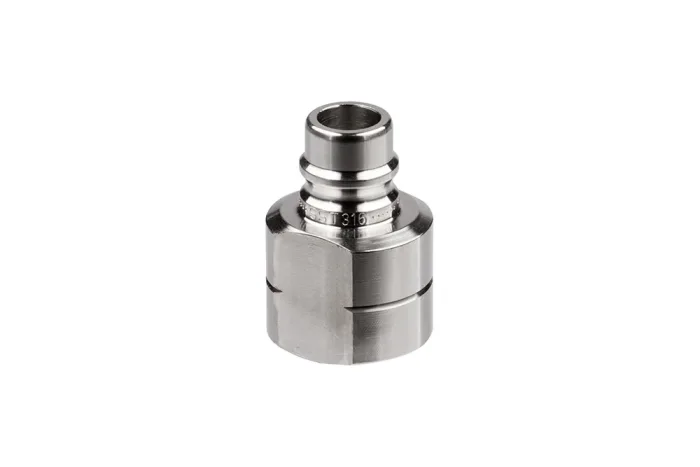

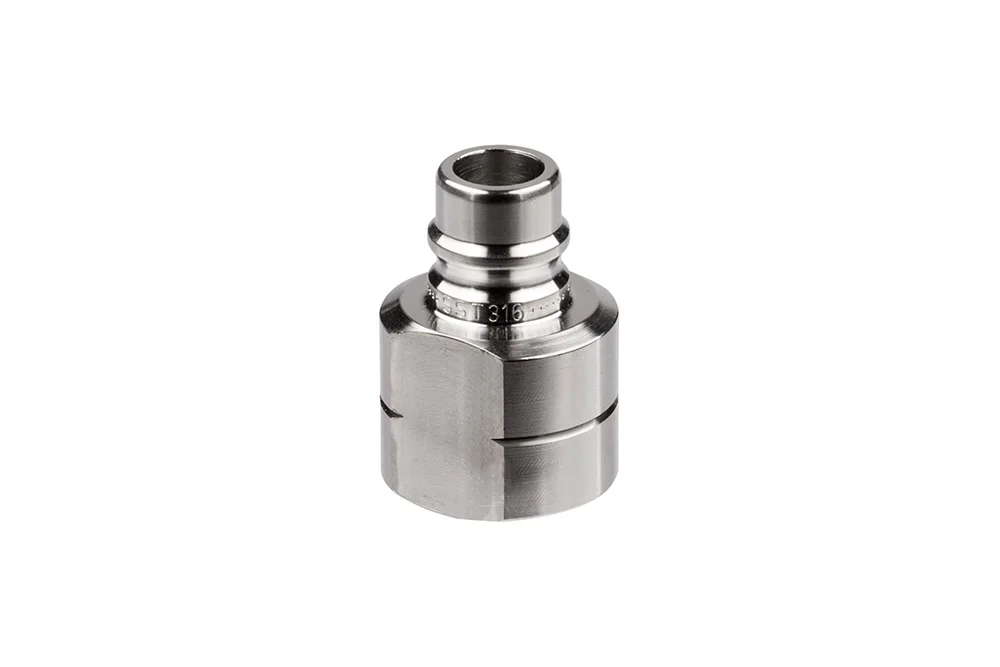

Plug quick coupling SNAP-TITE with a female BSP thread, NPSF without valve, steel AISI 316, series H

Additional information

Material

SS – stainless steel

Plug quick coupling SNAP-TITE with thread internal BSP and NPSF production American, without valve. Application: hydraulics power (oil hydraulic), industrial (water, steam, fuels and oils, gases chemicals). depending on use should select appropriate Material coupling and seal. standard: MIL-C-51234. Working pressure: up to 690 bar (depending on size quick coupling), Safety factor 2:1. Material: steel AISI 316. Operating temperature: od -56°C up to +240°C – depending on kinds seal socket. Flow rate has been stated for a drop pressure 3 bar.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
SN-SPHN12-12FPlug H 3/4", 3/4" female NPSF, AISI 316, without valve-483In stock0 €
Enquiry
SN-SPHN12-12RPPlug H 3/4", 3/4" BSP female, AISI 316, without valve-483In stock0 €
Enquiry
SN-SPHN16-16RPPlug H 1", 1" BSP female, AISI 316, without valve-276In stock0 €
Enquiry
SN-SPHN24-24RPPlug H 1.1/2", 1.1/2" BSP female, AISI 316, without valve-207In stock0 €
Enquiry
SN-SPHN32-32RPPlug H 2", 2" BSP female, AISI 316, without valve-69In stock0 €
Enquiry
SN-SPHN4-4RPPlug H 1/4", 1/4" BSP female, AISI 316, without valve-690In stock0 €
Enquiry
SN-SPHN6-6RPPlug H 3/8", 3/8" BSP female, AISI 316, without valve-552In stock0 €
Enquiry
SN-SPHN8-8RPPlug H 1/2", 1/2" BSP female, AISI 316, without valve-552In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Plug quick coupling SNAP-TITE with thread internal BSP and NPSF production American, without valve. Application: hydraulics power (oil hydraulic), industrial (water, steam, fuels and oils, gases chemicals). depending on use should select appropriate Material coupling and seal. standard: MIL-C-51234. Working pressure: up to 690 bar (depending on size quick coupling), Safety factor 2:1. Material: steel AISI 316. Operating temperature: od -56°C up to +240°C – depending on kinds seal socket. Flow rate has been stated for a drop pressure 3 bar.

Additional information

Material

SS – stainless steel
