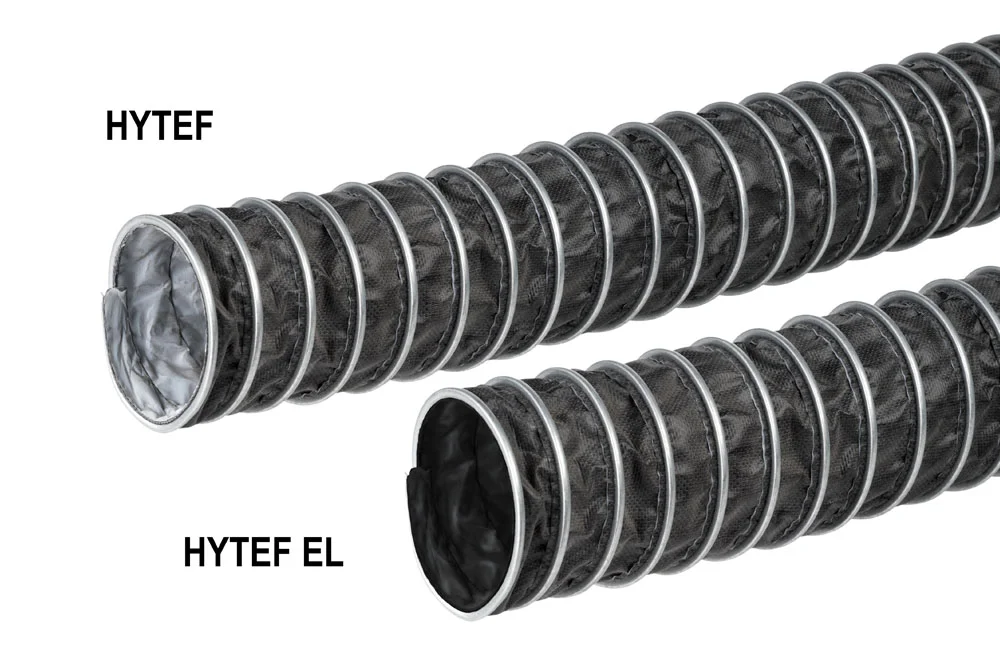

Hose ducting for vapours chemical, gases, hot air with a temperature up to 175°C GRIPFLEX HYTEF, GRIPFLEX HYTEF EL
Light, very flexible and pliable, resistant chemical and temperature-wise two-layer hose intended for discharge and conveying most aggressive chemical vapours, gases, dusts and fibres (non-abrasive), air blowing hot air. very good resistance chemical on aggressive chemicals thanks to internal layer PTFE. W version standard inner Layer white natural PTFE meets requirements industry food (FDA). W version antistatic EL black inner Layer PTFE is electrically conductive (R ≤10 6 Ω). hose is characterized high compressibility – for 1:6, strong design resistant on vibration, stretching and tearing, resistance on impacts thanks to outer spiral. resistant to radiation UV, ozone and aging. used in industry chemical, petrochemical and food. Also available with a stainless steel spiral (from 80 mm diameter). Assembly of the hose on connectors with bridge clamps (lewo-handed). Checking chemical resistance – the chemical resistance table for PTFE (preliminary selection), confirmation of resistance and conditions of use – by Tubes International. length standard: od 2 for 10 m. Material hose Inner layer: white foil PTFE PTFE – version standard HYTEF, black conductive foil PTFE PTFE – version antistatic HYTEF EL. Material hose Outer layer: black fabric polyethylene coated rubber CSM. Reinforcement: outer spiral with wire and sheet steel galvanized. Operating temperature: od -35°C up to +175°C (momentarily up to +190°C).
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Light, very flexible and pliable, resistant chemical and temperature-wise two-layer hose intended for discharge and conveying most aggressive chemical vapours, gases, dusts and fibres (non-abrasive), air blowing hot air. very good resistance chemical on aggressive chemicals thanks to internal layer PTFE. W version standard inner Layer white natural PTFE meets requirements industry food (FDA). W version antistatic EL black inner Layer PTFE is electrically conductive (R ≤10 6 Ω). hose is characterized high compressibility – for 1:6, strong design resistant on vibration, stretching and tearing, resistance on impacts thanks to outer spiral. resistant to radiation UV, ozone and aging. used in industry chemical, petrochemical and food. Also available with a stainless steel spiral (from 80 mm diameter). Assembly of the hose on connectors with bridge clamps (lewo-handed). Checking chemical resistance – the chemical resistance table for PTFE (preliminary selection), confirmation of resistance and conditions of use – by Tubes International. length standard: od 2 for 10 m. Material hose Inner layer: white foil PTFE PTFE – version standard HYTEF, black conductive foil PTFE PTFE – version antistatic HYTEF EL. Material hose Outer layer: black fabric polyethylene coated rubber CSM. Reinforcement: outer spiral with wire and sheet steel galvanized. Operating temperature: od -35°C up to +175°C (momentarily up to +190°C).
Additional information
| Material | PTFE – teflon and similar |
|---|---|
| Maximum operating temperature [°C] | 175 |
| Minimum operating temperature [°C] | -35 |
| Vacuum resistance | yes |
| Standard length [m] | 10, 2, 30, 60 |
| Reinforcement | external spiral made of galvanized steel wire and sheet metal |
