Is the ISO 6150B Quick Connect Plug with Hose End, GROMELLE DN8 rated for safe use at 16 bar and temperatures from -20°C to +100°C?

Yes. The ISO 6150B Quick Connect Plug with Hose End, GROMELLE DN8 is rated for safe use at working pressures up to 16 bar and operating temperatures from -20°C to +100°C, per its product description.

Can the ISO 6150B Quick Connect Plug with Hose End, GROMELLE DN8 be used safely in continuous heavy-duty pneumatic systems at Pe = 16 bar?

Yes — ISO 6150B Quick Connect Plug with Hose End, GROMELLE DN8 can be used safely in continuous heavy-duty pneumatic systems at Pe = 16 bar, with the following caveats: - Rated working pressure: the product is engineered to withstand working pressures up to 16 bar, so operation at Pe = 16 bar is within its specified limit. - Temperature: operating temperature range is −20 °C to +100 °C; ensure system temperature stays inside this band. - Flow capacity: flow performance (700 l/min at Pe = 6 bar, Δp = 0.6 bar) indicates good throughput, but actual pressure drop at 16 bar should be checked against system requirements. - Materials and durability: nickel‑plated brass connection and galvanized steel plug provide corrosion resistance and robust service life for heavy use. - Safety margin and duty cycle: continuous heavy‑duty service at the upper pressure limit reduces safety margin. For critical or continuously sustained high‑pressure applications, consider periodic inspection, correct installation, compatible hoses/fittings, and, if possible, selecting components with a higher pressure rating for additional safety margin. - Compliance and testing: verify compatibility with system standards, seals, and any applicable safety regulations; perform pressure testing under real operating conditions before long‑term deployment. Conclusion: Suitable for continuous heavy‑duty use at 16 bar if installed and maintained correctly and if system designers accept operation at the product’s maximum rated pressure; otherwise consider a component with a higher rated pressure for added margin.

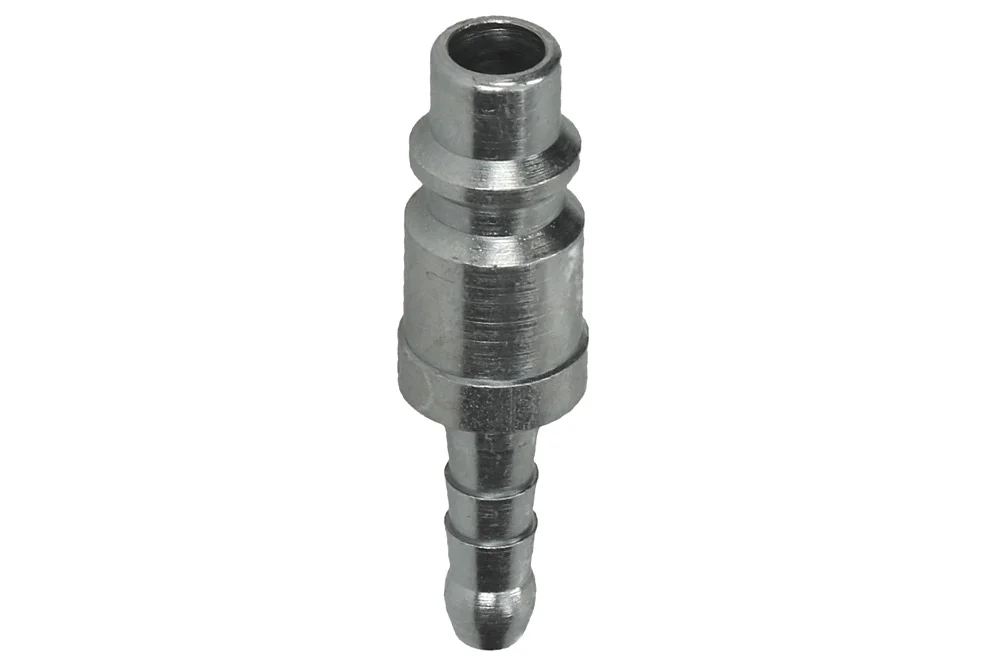

ISO 6150B Quick Connect Plug with Hose End, GROMELLE DN8

All products, General-purpose low-pressure quick couplings/

Additional information

Material	CS – steel (cast iron)

The Gromellee quick coupling plug type ISO 6150B DN 8 is a high-performance solution designed for efficient air applications, combining a compact structure with exceptionally low weight to ensure easy handling and reliable operation. Engineered to withstand working pressures up to 16 bar and operating temperatures ranging from -20°C to +100°C, it guarantees consistent performance even in demanding environments. With an impressive flow rate of 700 l/min at Pe = 6 bar and Δp = 0.6 bar, this coupling plug ensures optimal air transmission and energy efficiency. Manufactured from premium materials—nickel-plated brass for the connection and galvanized steel for the plug—it offers outstanding durability, corrosion resistance, and long service life. Its robust yet lightweight design makes it an ideal choice for professional pneumatic systems, delivering both reliability and convenience in everyday use.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
GR-IA0090901	ISO 6150B quick coupling plug DN8, for 10 mm hose, galvanized steel	10	16	In stock	Enquiry
GR-IA0090912	ISO 6150B quick coupling plug DN8, for hose 11-12 mm, galvanized steel	12	16	In stock	Enquiry
GR-IA0090978	ISO 6150B quick coupling plug DN8, for 7 mm hose, galvanized steel	6	16	In stock	Enquiry
GR-IA0090989	ISO 6150B quick coupling plug DN8, for 8 mm hose, galvanized steel	8	16	In stock	Enquiry
GR-IA0090990	ISO 6150B quick coupling plug DN8, for 9 mm hose, galvanized steel	8	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The Gromellee quick coupling plug type ISO 6150B DN 8 is a high-performance solution designed for efficient air applications, combining a compact structure with exceptionally low weight to ensure easy handling and reliable operation. Engineered to withstand working pressures up to 16 bar and operating temperatures ranging from -20°C to +100°C, it guarantees consistent performance even in demanding environments. With an impressive flow rate of 700 l/min at Pe = 6 bar and Δp = 0.6 bar, this coupling plug ensures optimal air transmission and energy efficiency. Manufactured from premium materials—nickel-plated brass for the connection and galvanized steel for the plug—it offers outstanding durability, corrosion resistance, and long service life. Its robust yet lightweight design makes it an ideal choice for professional pneumatic systems, delivering both reliability and convenience in everyday use.
