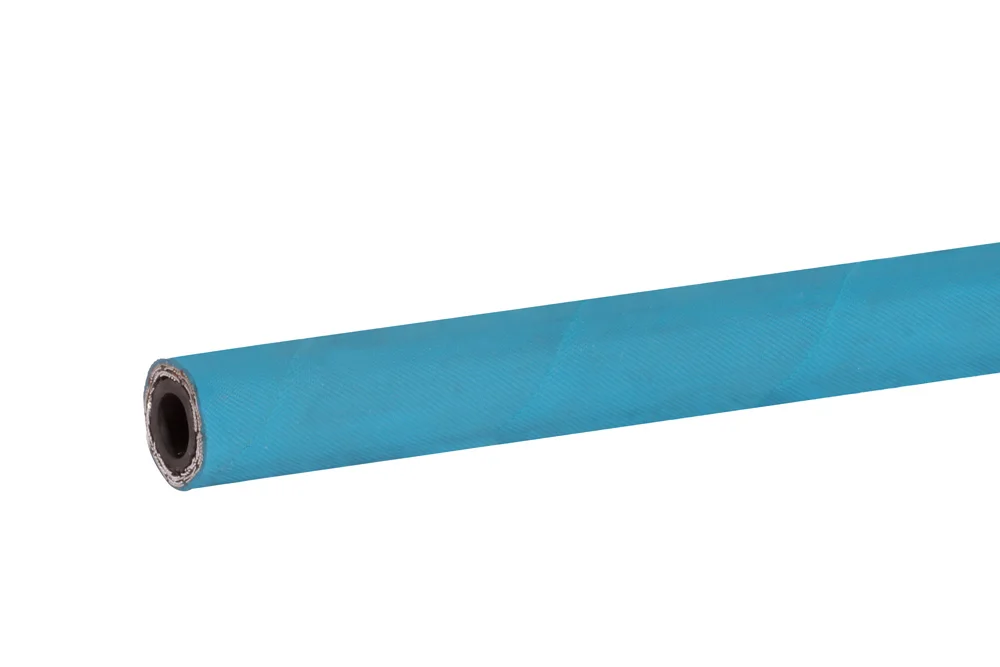

High-Temperature Hydraulic Hose EN 853 2SN/HT THERMAL

Additional information

Material

synthetic rubber

Maximum operating temperature [°C]

135

Minimum operating temperature [°C]

-40

This high-performance hydraulic hose is engineered for demanding applications, offering an extended temperature range and exceptional durability with a proven lifespan of 400,000 impulse cycles. Designed to exceed EN 853 2SN, ISO 1436-2SN, and SAE 100R2S-AT standards, it features a robust construction with a black synthetic rubber inner layer, reinforced by a double steel braid, and a durable blue outer layer made of oil-resistant synthetic rubber that withstands ozone and aging. With working pressures from 80 bar up to 400 bar depending on diameter, it ensures reliable performance in a wide variety of hydraulic systems. The hose operates efficiently in extreme conditions, from -40°C to +135°C, withstanding peaks up to +150°C, while for water and air applications the maximum temperature is +70°C. For air pressures above 17 bar, the outer layer can be micro-perforated to ensure safe and efficient use. Combining strength, flexibility, and resistance to harsh environments, this hose is the ideal solution for industries seeking long-lasting reliability and superior performance.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
HW-2SN-HT-06PTHERMAL 2SN/HT 1/4" hydraulic hose6400In stock
Enquiry
HW-2SN-HT-08PTHERMAL 2SN/HT 5/16" hydraulic hose8350In stock
Enquiry
HW-2SN-HT-10PTHERMAL 2SN/HT 3/8" hydraulic hose10330In stock
Enquiry
HW-2SN-HT-13PTHERMAL 2SN/HT 1/2" hydraulic hose12275In stock
Enquiry
HW-2SN-HT-16PTHERMAL 2SN/HT 5/8" hydraulic hose16250In stock
Enquiry
HW-2SN-HT-19PTHERMAL 2SN/HT 3/4" hydraulic hose20215In stock
Enquiry
HW-2SN-HT-25PTHERMAL 2SN/HT 1" hydraulic hose25165In stock
Enquiry
HW-2SN-HT-32PTHERMAL 2SN/HT 1.1/4" hydraulic hose32125In stock
Enquiry
HW-2SN-HT-38PTHERMAL hydraulic hose 2SN/HT 1.1/2"3890In stock
Enquiry
HW-2SN-HT-51PTHERMAL 2SN/HT 2" hydraulic hose5080In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This high-performance hydraulic hose is engineered for demanding applications, offering an extended temperature range and exceptional durability with a proven lifespan of 400,000 impulse cycles. Designed to exceed EN 853 2SN, ISO 1436-2SN, and SAE 100R2S-AT standards, it features a robust construction with a black synthetic rubber inner layer, reinforced by a double steel braid, and a durable blue outer layer made of oil-resistant synthetic rubber that withstands ozone and aging. With working pressures from 80 bar up to 400 bar depending on diameter, it ensures reliable performance in a wide variety of hydraulic systems. The hose operates efficiently in extreme conditions, from -40°C to +135°C, withstanding peaks up to +150°C, while for water and air applications the maximum temperature is +70°C. For air pressures above 17 bar, the outer layer can be micro-perforated to ensure safe and efficient use. Combining strength, flexibility, and resistance to harsh environments, this hose is the ideal solution for industries seeking long-lasting reliability and superior performance.
