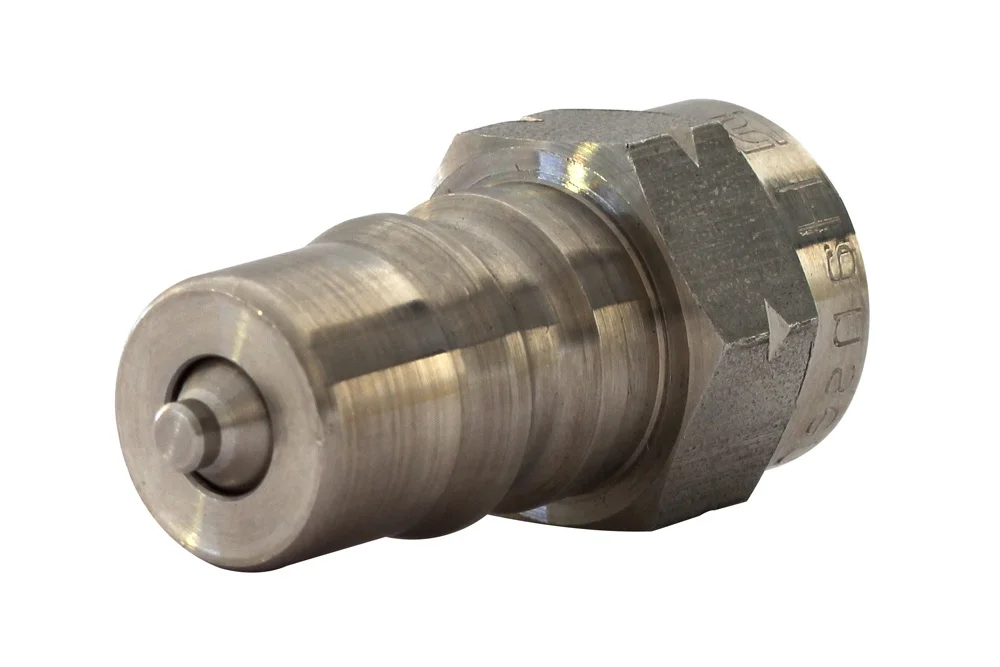

Plug quick coupling ISO-B with a female NPT thread, BSP (1/4″ ÷ 1″) of steel stainless AISI 316, HANSEN, type HK

Additional information

Material

SS – stainless steel

Plug quick coupling HANSEN type HK with thread internal NPT and BSP. can use interchangeable with quick coupling ISO-B other manufacturers, made to the ISO 7241-1 B standard. designed and made in accordance with the directive PED 2014/68/UE. use in hydraulics power for oil hydraulic, in industry for water, steam, fuels, oils, gases and chemicals. Material: steel AISI 316. sealing: NBR (temperature use od -40°C up to +121°C), EPDM (temperature use od -54°C up to +149°C), Viton (temperature use od -29°C up to +204°C). Working pressure: up to 344 bar (depending on size quick coupling). Flow rate has been stated for a drop pressure 3 bar.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
HA-ML2K16BSPlug 2-HK, 1/4" BSP female, AISI 316, NBR-255In stock0 €
Enquiry
HA-ML2K16BS-EPlug 2-HK, 1/4" BSP female, AISI 316, EPDM-255In stock0 €
Enquiry
HA-ML2K16BS-VPlug 2-HK, 1/4" BSP female, AISI 316, Viton-255In stock0 €
Enquiry
HA-ML3K21BSPlug 3-HK, 3/8" BSP female, AISI 316, NBR-255In stock0 €
Enquiry
HA-ML3K21BS-VPlug 3-HK, 3/8" BSP female, AISI 316, Viton-255In stock0 €
Enquiry
HA-ML4KP26BSPlug 4-HKP, 1/2" BSP female, AISI 316, NBR-293In stock0 €
Enquiry
HA-ML4KP26BS-EPlug 4-HKP, 1/2" BSP female, AISI 316, EPDM-293In stock0 €
Enquiry
HA-ML4KP26BS-VPlug 4-HKP, 1/2" BSP female, AISI 316, Viton-293In stock0 €
Enquiry
HA-ML6KP31BSPlug 6-HKP, 3/4" BSP female, AISI 316, NBR-242In stock0 €
Enquiry
HA-ML6KP31BS-EPlug 6-HKP, 3/4" BSP female, AISI 316, EPDM-242In stock0 €
Enquiry
HA-ML6KP31BS-VPlug 6-HKP, 3/4" BSP female, AISI 316, Viton-242In stock0 €
Enquiry
HA-ML8KP36BSPlug 8-HKP, 1" BSP female, AISI 316, NBR-207In stock0 €
Enquiry
HA-ML8KP36BS-EPlug 8-HKP, 1" BSP female, AISI 316, EPDM-207In stock0 €
Enquiry
HA-ML8KP36BS-VPlug 8-HKP, 1" BSP female, AISI 316, Viton-207In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Plug quick coupling HANSEN type HK with thread internal NPT and BSP. can use interchangeable with quick coupling ISO-B other manufacturers, made to the ISO 7241-1 B standard. designed and made in accordance with the directive PED 2014/68/UE. use in hydraulics power for oil hydraulic, in industry for water, steam, fuels, oils, gases and chemicals. Material: steel AISI 316. sealing: NBR (temperature use od -40°C up to +121°C), EPDM (temperature use od -54°C up to +149°C), Viton (temperature use od -29°C up to +204°C). Working pressure: up to 344 bar (depending on size quick coupling). Flow rate has been stated for a drop pressure 3 bar.
