Hose o high resistance chemical and temperature, for pumps peristaltic VERSILON™ ISO-VERSINIC®

Additional information

Material

FPM (FKM) – fluor rubber (viton)

Maximum operating temperature [°C]

200

Minimum operating temperature [°C]

-20

Vacuum resistance

no

Standard length [m]

10, 15, 25, 50

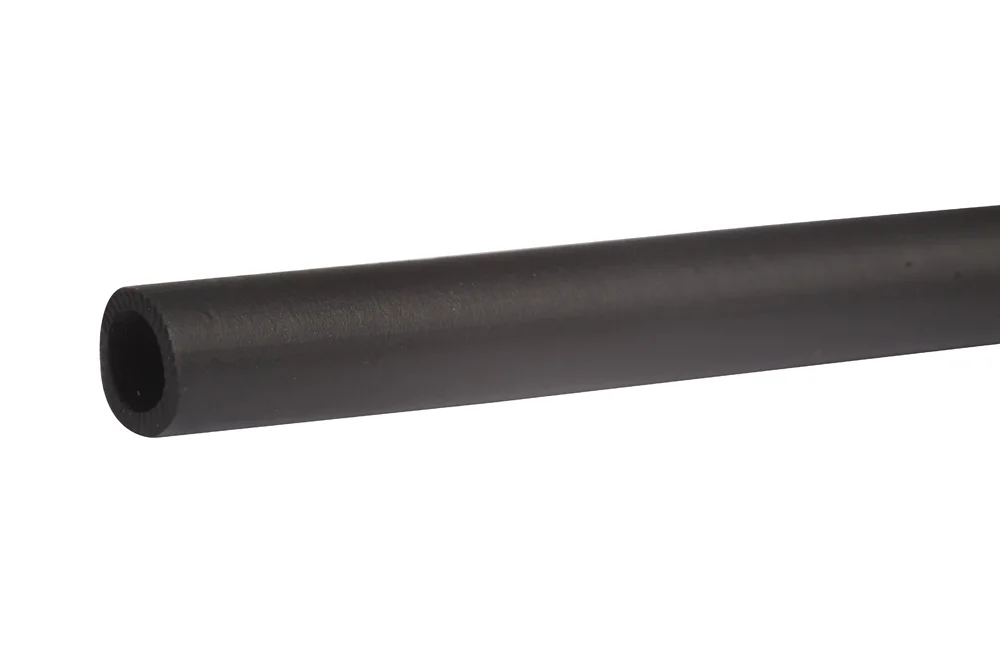

Black, opaque and flexible hose with fluoroelastomer (Viton), resistant to fuels, solvents, oils, chemicals, in particular at elevated temperature. used for concentrated acids, bases, alcohols, solvents chlorinated and aromatic, hot fuels and oils. is suitable for pumps peristaltic. resistant to aging, ozone, light solar and conditions atmospheric. flame-retardant. opaque black wall hose secures substances sensitive on light. used in laboratories and use general-industrial. constitutes economical alternative for hose VERSILONTM F-5500-A. length full roll hose 50 m (for diameter internal od 4 mm for 12 mm – 25 m, od 15 mm – 5 m). The given working pressure is determined relative to the bursting pressure at a safety factor of 1:5. Material: rubber fluoro (FKM). Operating temperature: od -20°C up to +200°C (momentarily up to +300°C). temperature brittleness: -20°C. Hardness: 60° Shore (A) – for 4×6 mm, 70° Shore (A) – for 4×8 mm. Density: 1.90 g/cm³. Note: The product is packaged in the Tubes International Clean Zone (CLEAN ROOM) in compliance with rigorous standards. Return of the product after opening the package is not possible.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
VE-770060Hose VERSILON ISO 1x3 mm22In stock0 €
Enquiry
VE-770100Hose VERSILON ISO 1.5x3 mm21.2In stock0 €
Enquiry
VE-770130Hose VERSILON ISO 2x4 mm21.1In stock0 €
Enquiry
VE-770180Hose VERSILON ISO 3x5 mm31In stock0 €
Enquiry
VE-770230Hose VERSILON ISO 4x6 mm40.8In stock0 €
Enquiry
VE-770250Hose VERSILON ISO 4x8 mm41.8In stock0 €
Enquiry
VE-770260Hose VERSILON ISO 5x8 mm51.2In stock0 €
Enquiry
VE-770300Hose VERSILON ISO 6x9 mm60.7In stock0 €
Enquiry
VE-770310Hose VERSILON ISO 6x10 mm60.9In stock0 €
Enquiry
VE-770350Hose VERSILON ISO 7x10 mm80.7In stock0 €
Enquiry
VE-770360Hose VERSILON ISO 8x11 mm80.6In stock0 €
Enquiry
VE-770380Hose VERSILON ISO 8x12 mm80.8In stock0 €
Enquiry
VE-770420Hose VERSILON ISO 10x14 mm100.7In stock0 €
Enquiry
VE-770440Hose VERSILON ISO 12x17 mm120.6In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Black, opaque and flexible hose with fluoroelastomer (Viton), resistant to fuels, solvents, oils, chemicals, in particular at elevated temperature. used for concentrated acids, bases, alcohols, solvents chlorinated and aromatic, hot fuels and oils. is suitable for pumps peristaltic. resistant to aging, ozone, light solar and conditions atmospheric. flame-retardant. opaque black wall hose secures substances sensitive on light. used in laboratories and use general-industrial. constitutes economical alternative for hose VERSILONTM F-5500-A. length full roll hose 50 m (for diameter internal od 4 mm for 12 mm – 25 m, od 15 mm – 5 m). The given working pressure is determined relative to the bursting pressure at a safety factor of 1:5. Material: rubber fluoro (FKM). Operating temperature: od -20°C up to +200°C (momentarily up to +300°C). temperature brittleness: -20°C. Hardness: 60° Shore (A) – for 4×6 mm, 70° Shore (A) – for 4×8 mm. Density: 1.90 g/cm³. Note: The product is packaged in the Tubes International Clean Zone (CLEAN ROOM) in compliance with rigorous standards. Return of the product after opening the package is not possible.

Additional information

Material

FPM (FKM) – fluor rubber (viton)

Maximum operating temperature [°C]

200

Minimum operating temperature [°C]

-20

Vacuum resistance

no

Standard length [m]

10, 15, 25, 50

Do you need a larger quantity of products or a bespoke quote?
