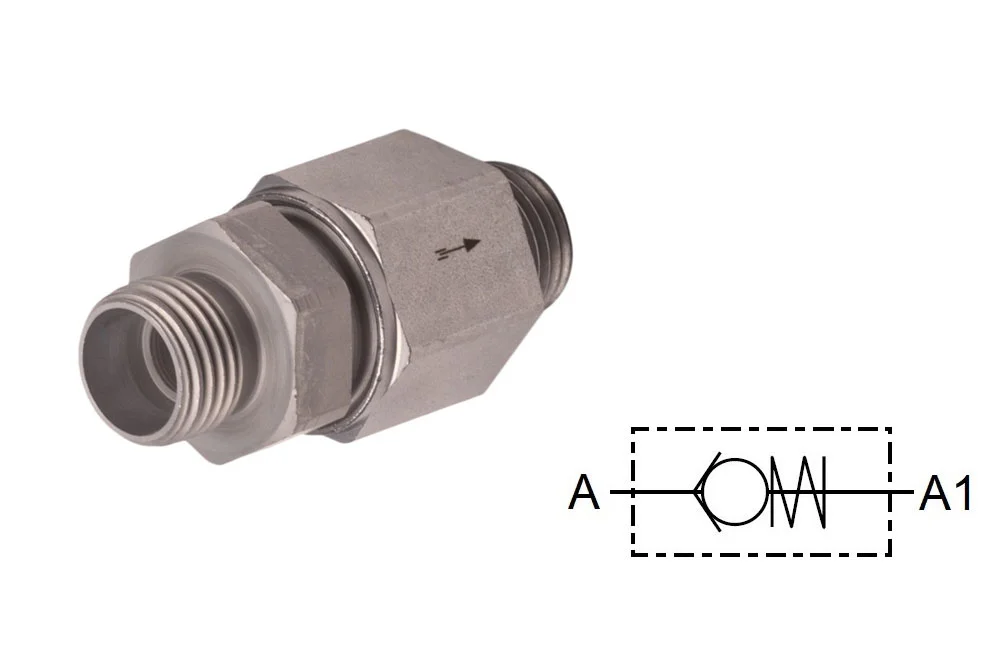

Valves check type VNRO / VNROHP intended for closing flow liquids hydraulic in one direction and opening free flow liquids in direction opposite. standard pressure opening 1 bar (available also with other pressure opening from 0.2 bar to 6 bar). permissible direction flow: A → A1. valves type VNROHP equipped are in additional ring sealing allowing on operation at maintaining higher coefficient safety. Material body and stem: steel carbon with coating zinc – nickel, steel stainless AISI 316Ti. sealing: NBR – steel carbon, Viton (FPM) – steel stainless. Operating temperature: od -35°C up to +100°C (NBR); od -20°C up to +200°C (Viton).
Valves check type VNRO / VNROHP intended for closing flow liquids hydraulic in one direction and opening free flow liquids in direction opposite. standard pressure opening 1 bar (available also with other pressure opening from 0.2 bar to 6 bar). permissible direction flow: A → A1. valves type VNROHP equipped are in additional ring sealing allowing on operation at maintaining higher coefficient safety. Material body and stem: steel carbon with coating zinc – nickel, steel stainless AISI 316Ti. sealing: NBR – steel carbon, Viton (FPM) – steel stainless. Operating temperature: od -35°C up to +100°C (NBR); od -20°C up to +200°C (Viton).
Additional information
Material
CS – steel (cast iron)
