Is the DKOL 45° Hydraulic Fitting ZMW321, Light Series, Carbon Steel compatible with standard crimping sleeves for hydraulic hoses?

DKOL 45° Hydraulic Fitting ZMW321, Light Series, Carbon Steel — Yes. According to the description, this fitting is specifically developed for crimping in hydraulic and industrial hoses and therefore requires a matching crimping sleeve tailored to the hose type. It features a classic hydraulic tail for secure hose connection and an internal metric thread with nut, sealing via an O‑ring on a 24° cone (DKOL). For leak‑free, durable performance you must use the correct crimping sleeve sized to both the hose construction and this fitting; standard sleeves will be compatible only if they match the hose type and dimensions specified for ZMW321.

Can DKOL 45° Hydraulic Fitting ZMW321, Light Series, Carbon Steel be used with hoses requiring non-metric internal threads or different O-ring sizes?

DKOL 45° Hydraulic Fitting ZMW321, Light Series, Carbon Steel Format cannot be used with hoses that require non-metric internal threads or different O‑ring sizes. The product is specifically engineered with an internal metric thread and a 24° cone (DKOL) sealing system that relies on a matching O‑ring and nut for proper sealing. Using hoses with non‑metric threads or an O‑ring size other than the one designed for the 24° cone would prevent correct engagement, compromise the seal, and risk leaks or failure. Additionally, the fitting is intended for crimping with a matching crimping sleeve tailored to the hose type; mismatched threads or seal components will invalidate the crimp fit and mechanical integrity. For safe, reliable operation, use hoses and O‑rings that match the fitting’s metric thread and specified O‑ring/cone dimensions or select a fitting designed for the non‑metric thread or alternate O‑ring size.

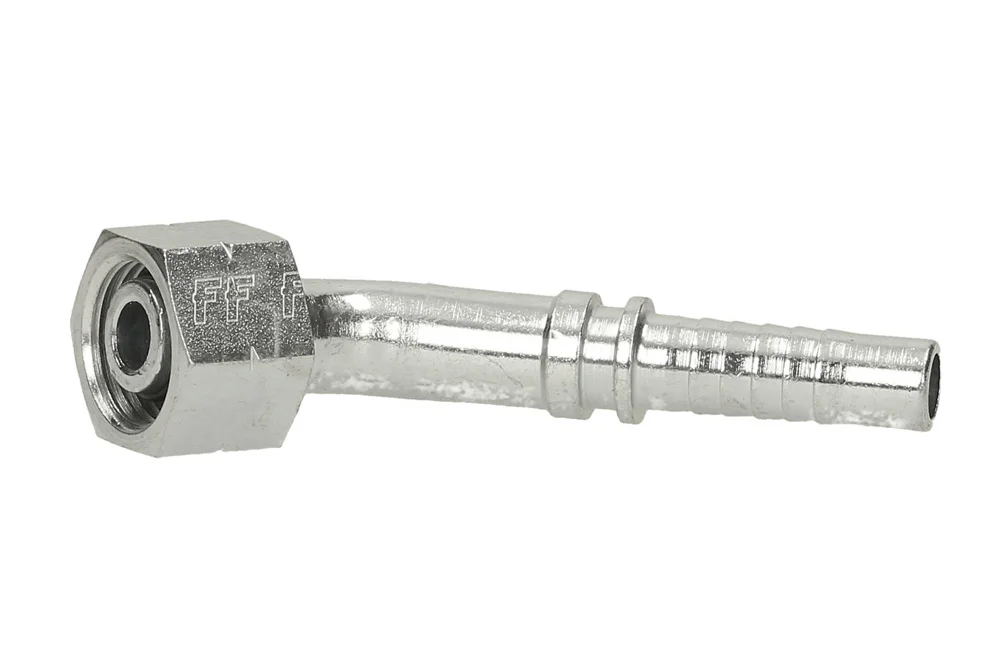

DKOL 45° Hydraulic Fitting ZMW321, Light Series, Carbon Steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

This standard hydraulic end fitting, type Z, is engineered with a classic hydraulic tail for secure hose connection and features an internal metric thread with nut, ensuring reliable sealing through an O-ring on a 24° cone (DKOL). The 45° angled design in lightweight series construction provides flexibility in installation, making it ideal for compact or complex hydraulic systems. Specifically developed for crimping in hydraulic and industrial hoses, it requires the use of a matching crimping sleeve tailored to the hose type, guaranteeing durability and leak-free performance. Manufactured from high-quality carbon steel with a galvanized finish, the fitting offers excellent resistance to wear and corrosion, extending service life even in demanding environments. Its precise engineering and robust build make it a trusted choice for professionals seeking efficiency, safety, and long-lasting reliability in hydraulic applications.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW321-12-03	End. 45° G1/2 M12x1.5, hose 3/16", 24°, o-ring, lightweight	5	-	In stock	Enquiry
TI-ZMW321-12-04	End. 45° G-thread M12x1.5, hose 1/4", 24°, o-ring, lightweight	6	-	In stock	Enquiry
TI-ZMW321-14-03	End. 45° G thread M14x1.5, hose 3/16", 24°, o-ring, lightweight	5	-	In stock	Enquiry
TI-ZMW321-14-04	End. 45° G thread M14x1.5, hose 1/4", 24° o-ring, lightweight	6	-	In stock	Enquiry
TI-ZMW321-16-04	End. 45° G thread M16x1.5, hose 1/4", 24°, o-ring, lightweight	6	-	In stock	Enquiry
TI-ZMW321-16-05	End. 45° G1/2 M16x1.5, hose 5/16", 24°, o-ring, lightweight	8	-	In stock	Enquiry
TI-ZMW321-16-06	End. 45° G thread M16x1.5, hose 3/8", 24°, o-ring, lightweight	10	-	In stock	Enquiry
TI-ZMW321-18-04	End. 45° GW M18x1.5, hose 1/4", 24°, o-ring, lightweight	6	-	In stock	Enquiry
TI-ZMW321-18-05	End fitting 45° G thread M18x1.5, hose 5/16", 24°, o-ring, lightweight	8	-	In stock	Enquiry
TI-ZMW321-18-06	End. 45° G-thread M18x1.5, hose 3/8", 24°, o-ring, lightweight	10	-	In stock	Enquiry
TI-ZMW321-22-06	End. 45° G thread M22x1.5, hose 3/8", 24°, o-ring, lightweight	10	-	In stock	Enquiry
TI-ZMW321-22-08	End. 45° GW M22x1.5, hose 1/2", 24°, o-ring, lightweight	12	-	In stock	Enquiry
TI-ZMW321-26-08	End. 45° GW M26x1.5, hose 1/2", 24°, o-ring, lightweight	12	-	In stock	Enquiry
TI-ZMW321-26-10	End. 45° G thread M26x1.5, hose 5/8", 24°, o-ring, lightweight	16	-	In stock	Enquiry
TI-ZMW321-27-10	End fitting 45° GW M27x2, hose 5/8", 24°, o-ring, lightweight	16	-	In stock	Enquiry
TI-ZMW321-30-10	End. 45° G thread M30x2, hose 5/8", 24°, o-ring, lightweight	16	-	In stock	Enquiry
TI-ZMW321-30-12	End. 45° G thread M30x2, hose 3/4", 24°, o-ring, lightweight	20	-	In stock	Enquiry
TI-ZMW321-30-16	End. 45° G1 M30x2, hose 1", 24°, o-ring, lightweight	25	-	In stock	Enquiry
TI-ZMW321-36-16	End. 45° GW M36x2, hose 1", 24°, o-ring, light	25	-	In stock	Enquiry
TI-ZMW321-45-20	End. 45° G thread M45x2, hose 1.1/4", 24°, o-ring, lightweight	32	-	In stock	Enquiry
TI-ZMW321-45-24	End fitting 45° G1.5 M45x2, hose 1.1/2", cone 24°, o-ring, lightweight	38	-	In stock	Enquiry
TI-ZMW321-52-24	End fitting 45° G1/2" M52x2, hose 1.1/2", 24° o-ring, lightweight	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

This standard hydraulic end fitting, type Z, is engineered with a classic hydraulic tail for secure hose connection and features an internal metric thread with nut, ensuring reliable sealing through an O-ring on a 24° cone (DKOL). The 45° angled design in lightweight series construction provides flexibility in installation, making it ideal for compact or complex hydraulic systems. Specifically developed for crimping in hydraulic and industrial hoses, it requires the use of a matching crimping sleeve tailored to the hose type, guaranteeing durability and leak-free performance. Manufactured from high-quality carbon steel with a galvanized finish, the fitting offers excellent resistance to wear and corrosion, extending service life even in demanding environments. Its precise engineering and robust build make it a trusted choice for professionals seeking efficiency, safety, and long-lasting reliability in hydraulic applications.
